Place of Origin:
China
Brand Name:
SuspAir
Certification:
CE
Model Number:
31476850

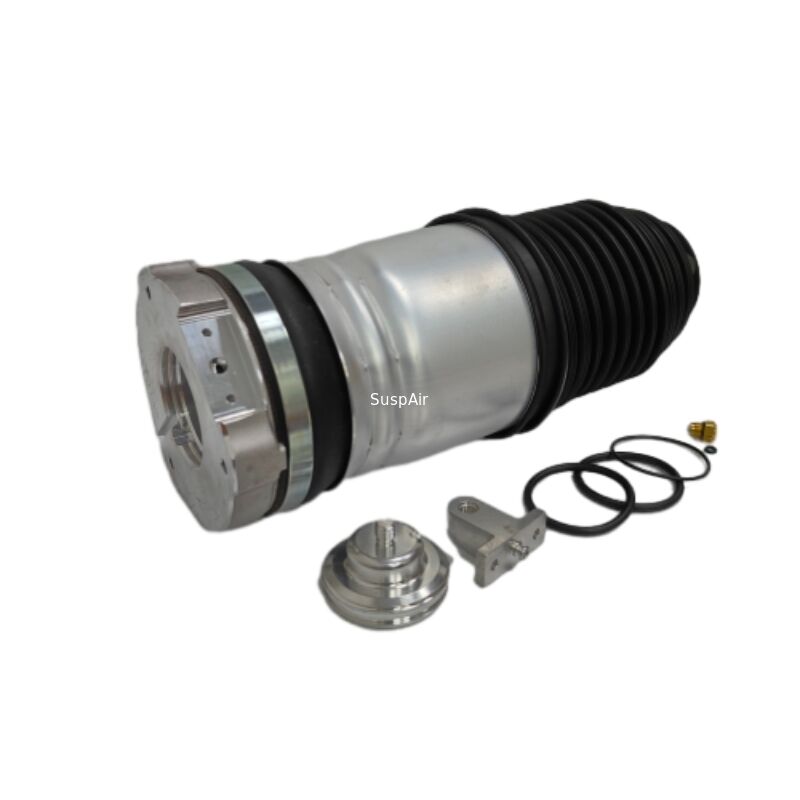

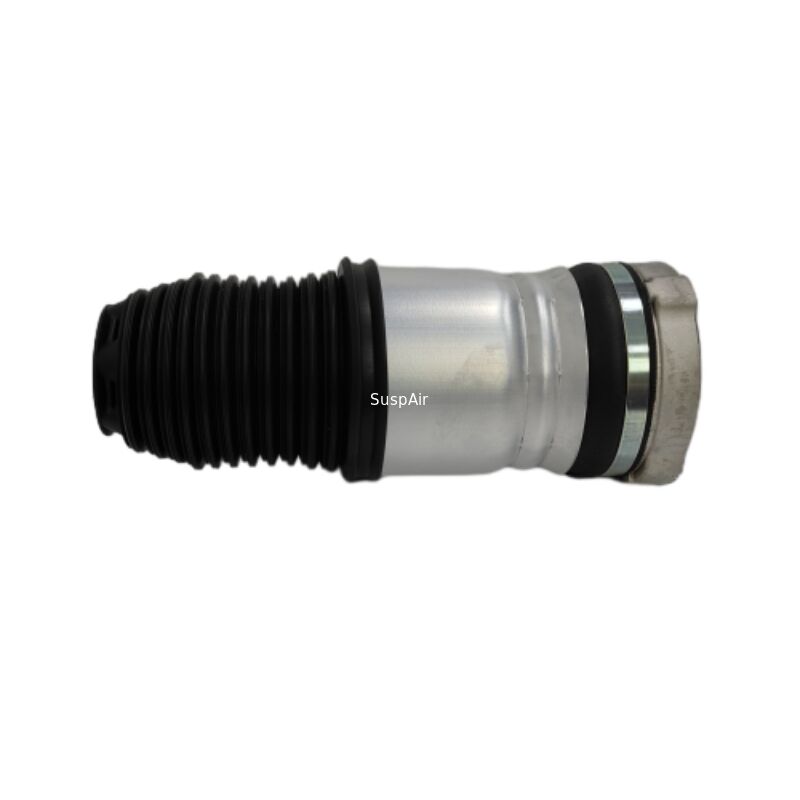

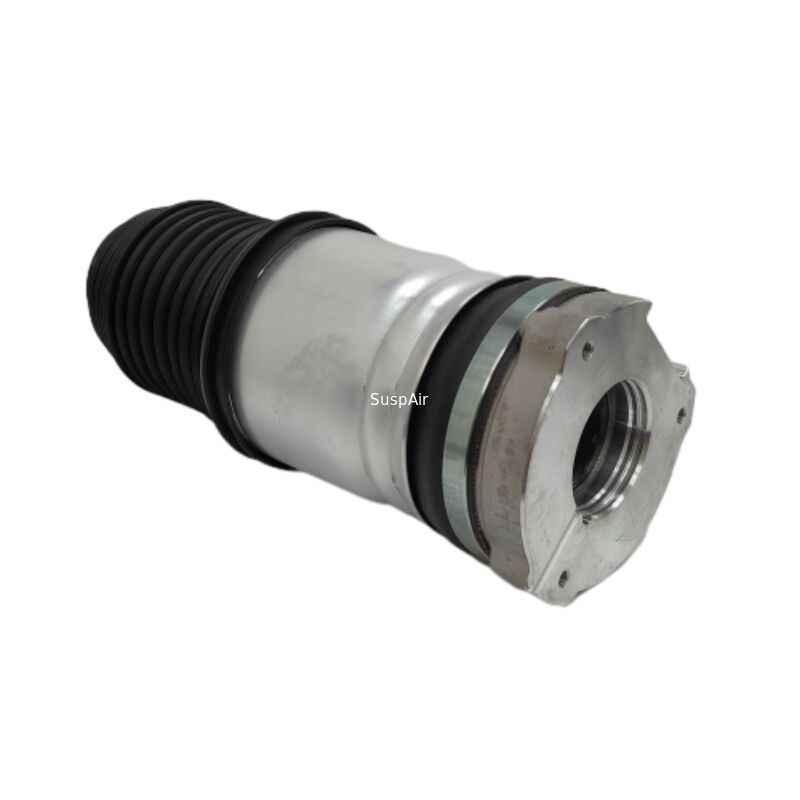

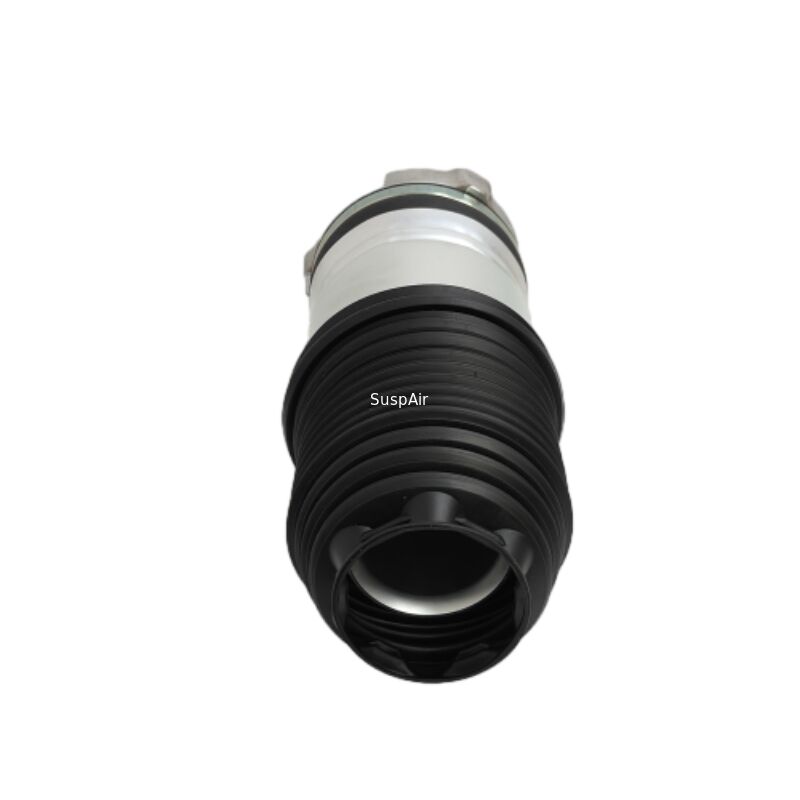

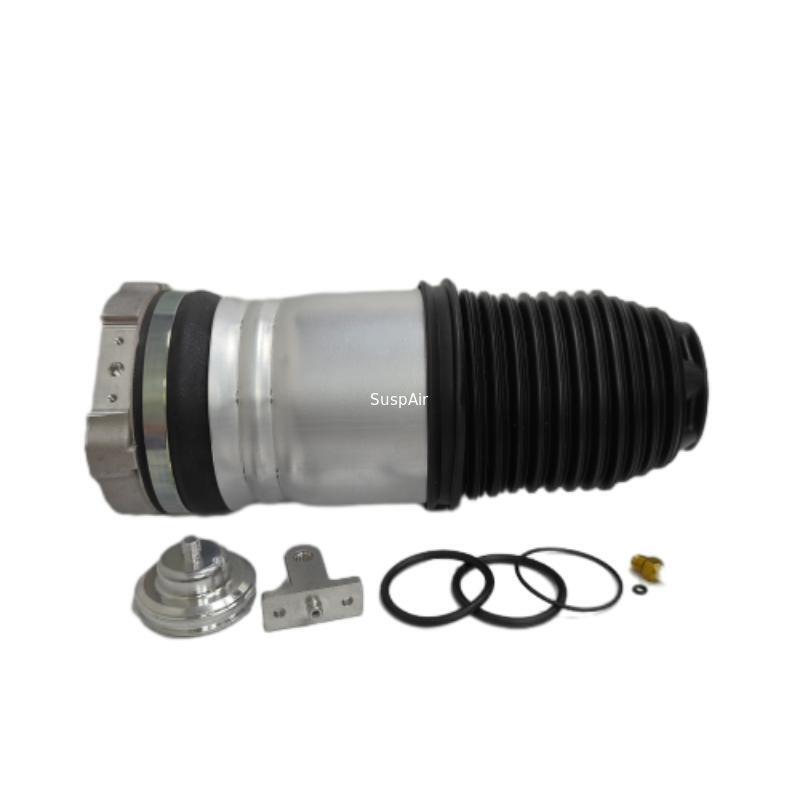

This air spring repair kit is OEM replacement repair part for Volv*, fits front air suspension strut with ADS adaptive damping system. It undertakes front‑end load‑bearing, vehicle height adjustment and shock‑absorbing buffering functions. Adopting multi‑layer cord fabric rubber structure, it features high‑low temperature resistance, anti‑aging and anti‑fatigue performance. Original‑equivalent mounting dimension allows direct on‑site replacement without modification. It effectively solves common faults including front bellows leakage, front‑end collapse, uneven vehicle height and abnormal driving noise. Every unit passes air‑tightness pressure test before delivery to guarantee sealing performance after installation. Compatible with original air suspension control system to restore original riding comfort.
Volv* XC90 II (256) 2016‑2023 (With ADS Adaptive Damping)
Note: This OE applies to front left repair kit. Corresponding front right OE: 31476851. Please confirm left‑right side. Only for struts equipped with ADS sensor.
Q1: Is this repair kit side‑specific? Does it fit vehicles without ADS?
A: Strictly side‑specific. 31476850 is for front left, front right OE is 31476851. This repair kit is only for struts with ADS sensor, not compatible with non‑ADS version. Please verify original part number before order.
Q2: Do I need to replace the shock strut when using this repair kit for leaking bellows?
A: If strut has no oil leakage and maintains good damping, only air spring repair kit replacement is acceptable. If strut leaks oil or loses damping, full assembly replacement is recommended to extend suspension service life.
Q3: What causes air leakage after installation?
A: Confirm sealing rings and air nozzle connectors are fitted properly. Lubricate sealing rings during assembly. Meanwhile inspect air lines and distribution valve for damage and leakage.
Q4: Can I replace only one‑side repair kit for damaged air bellows?
A: Technically workable. Pair‑side replacement is highly recommended to keep consistent elasticity and load‑bearing capacity for both sides, preventing body tilt and vehicle pulling‑aside.
Q5: What is the warranty period? Which conditions are excluded from warranty?
A: Standard warranty period is 12 months. Cuts by sharp objects, collision damage, improper installation and man‑made damage are not covered by warranty.
Q6: Can it be installed in ordinary repair shops?
A: Special air‑suspension disassembly tools are required. Vehicle height calibration is mandatory after installation. Professional repair‑shop installation is suggested. Violent striking on base and rubber bellows is forbidden.
