Place of Origin:
China
Brand Name:
SuspAir
Certification:
ISO9001/CE
Model Number:
Land Rover Range Rover (L322) 2003–2012; Range Rover 2002–2012

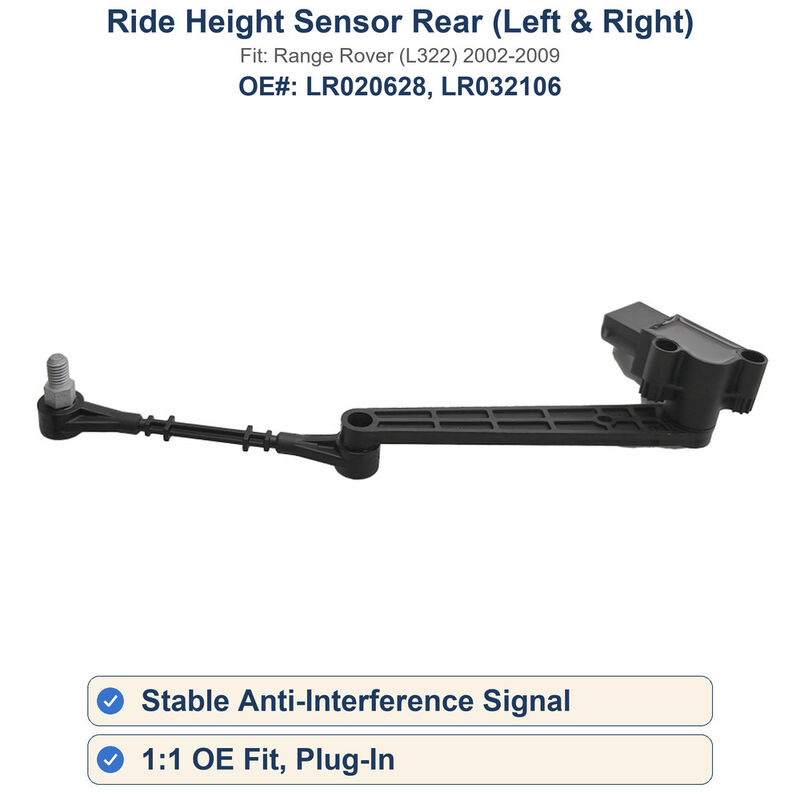

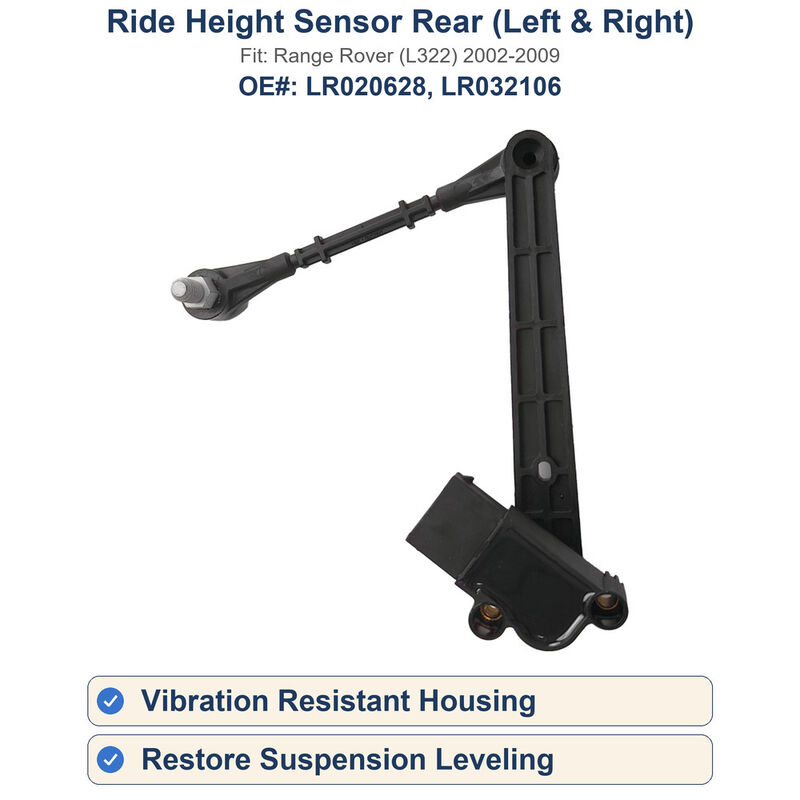

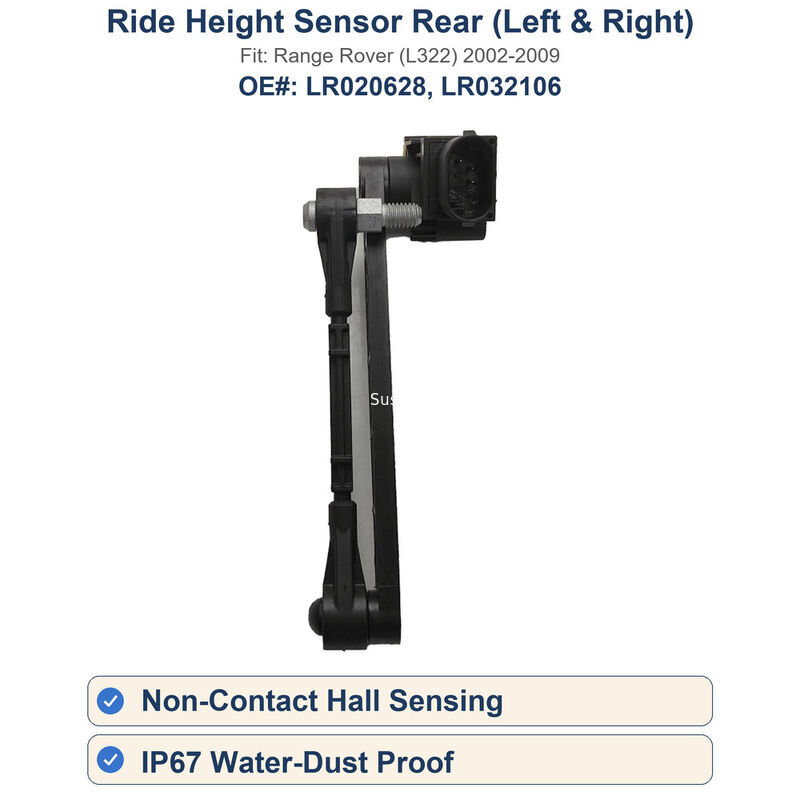

Ride Height Sensor Rear Axle Range Rover L322 2002-2012 LR020628 LR032106
Rear level sensor (ride-height / headlight-levelling) for the Land Rover Range Rover (L322, 2002–2009 per supplier table; catalog fitment 2002–2012) — for vehicles with air suspension. This rear unit fits both sides (Rear Axle Left & Right) — the complete OE family: LR020628, LR032106, LR020629, LR032105, AAS3460, RQH500440, RQH500441, RQH500450, RQH500451 — all verified in the same catalog OE list (European catalog, VEMO V48-72-0092 / NTY ECX-LR-005). Catalog data confirms: Rear Axle position (VEMO) / Rear Axle Left & Right (NTY), 3 pins, D-shaped connector, with fastening material, for vehicles with air suspension, approx. 0.14–0.17 kg. Every unit is quality-checked before shipment and wiith an 18-month warranty.
| Item | Content |
|---|---|
| Product Name | Level Sensor (ride-height / headlight-levelling) - Rear Axle (Left & Right) |
| Genuine OE No. (primary) | LR020628 |
| Same-Family OE (supplier) | LR032106 |
| Same-Family OE (catalog) | LR020629, LR032105, AAS3460, RQH500440, RQH500441, RQH500450, RQH500451 (same catalog OE list) |
| OE Note | All 9 numbers verified in the same catalog OE list (VEMO V48-72-0092 + NTY ECX-LR-005) - same sensor. Both LR020628 and LR032106 are listed by the catalog under "Controller, repair set, sensor, repair kit"; the matching level-sensor spec pages confirm them as the rear level sensor |
| Aftermarket Cross No. | Interchange list available on request - order by OE number |
| Applicable Brand | Land Rover (OE list includes the AAS-format number) |
| Vehicle Line | Range Rover (L322) |
| Model Years | Supplier table: 2002-2009; catalog: Range Rover 2002-2012 - confirm by VIN |
| Chassis Code | L322 (per supplier table) |
| Installation Position | Rear Axle (catalog: VEMO "Rear Axle"; NTY "Rear Axle Left / Rear Axle Right" - one part fits both sides) |
| Sensor Type | Level sensor (ride-height / headlight levelling) |
| Function | Ride-height / headlight-range (levelling) sensing for air-suspension vehicles |
| Connector | 3 pins, D-shaped connector (catalog-verified) |
| Supplementary | With fastening material (catalog-verified) |
| Application | For vehicles with air suspension (catalog: spring type) |
| Required Quantity | 1 per side (one part fits Left & Right) |
| Electric / Damping | Electronic level sensor - suspension level / headlight levelling signal (no damping function) |
| Reference Weight | Approx. 0.14-0.17 kg (catalog: VEMO 0.17 kg; NTY 0.141 kg) |
| Packing | Individual protective packaging |
| Warranty | 18 months |
| Shipping | Sea / air / courier; export-standard packaging |
| Selling Point | Detail |
|---|---|
| Range Rover L322 Fit | Rear level sensor for Land Rover Range Rover (L322, 2002-2009; catalog 2002-2012) |
| Complete OE Family | 9 numbers: LR020628, LR032106, LR020629, LR032105, AAS3460, RQH500440, RQH500441, RQH500450, RQH500451 |
| Fits Both Rear Sides | Catalog-verified: Rear Axle Left & Right - one part for both sides |
| Complete Kit | With fastening material (catalog-verified) |
| Spec-Matched | 3-pin D-shaped connector - for air suspension |
| Dual Function | Suspension level sensing + headlight levelling (range adjustment) signal |
| 18-Month Warranty | Extended 18-month warranty + pre-sale VIN check + after-sales technical support |
Q1: Which vehicles does this fit? Land Rover Range Rover (L322, 2002–2009) per the supplier table; catalog fitment: Range Rover 2002–2012. Confirm the exact model and year by VIN.
Q2: Which side is this? This is the rear axle unit and it fits both sides (Left & Right) — catalog data: VEMO "Rear Axle", NTY "Rear Axle Left + Rear Axle Right". One part covers either rear position. (Different from the front sensors, which are side-specific: LR020626 left / LR020627 right.)
Q3: What is this part exactly? A level sensor — it measures the rear ride height / suspension level and supplies the signal for air-suspension leveling and headlight levelling (range adjustment). It is NOT a damping unit — an electronic sensor (3-pin, D-shaped connector, for vehicles with air suspension), supplied with fastening material.
Q4: Why does the catalog also call LR020628 / LR032106 "repair set / repair kit"? The catalog OE pages group these numbers under "Controller, repair set, sensor, repair kit" because they are also referenced by harness/connector repair kits. The matching level-sensor spec pages (VEMO V48-72-0092 for OE LR032106; NTY ECX-LR-005) confirm that the numbers correspond to the rear level sensor itself.
Q5: Why are there 9 OE numbers in the family? They are the same sensor's OE family: LR020628, LR020629, LR032105, LR032106, AAS3460, RQH500440, RQH500441, RQH500450, RQH500451 — all verified in the same catalog OE list. Order by any of them.
Q6: Does it fit only air-suspension vehicles? Yes — the catalog lists the spring type as for vehicles with air suspension (Range Rover with air ride; also relevant for headlight range adjustment). Confirm the equipment by VIN.
Q7: Warranty policy and shipping damage? 18-month warranty under normal use. For shipping damage, inspect within 48 hours of receipt and send photos/video — the seller arranges a replacement.
Q8: Are aftermarket alternatives available? The interchange list for these OE numbers is available on request. Order by the exact OE number and confirm the model/year by VIN.
