LR087092 Front Left Air Spring Repair Kit For Range Rover L405//L494

LR087092 Front Left Air Spring Repair Kit For Range Rover L405//L494

Installation Position: Front Axle‑Left, fit for air strut with ACE active anti‑roll system & ADS adaptive damping

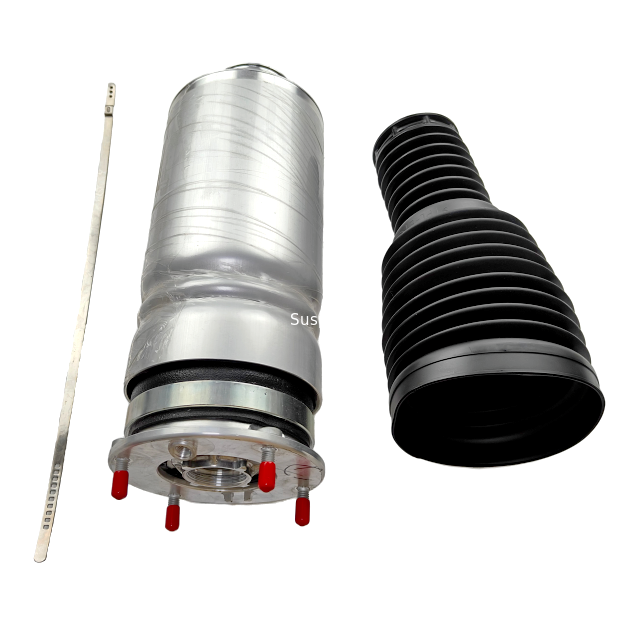

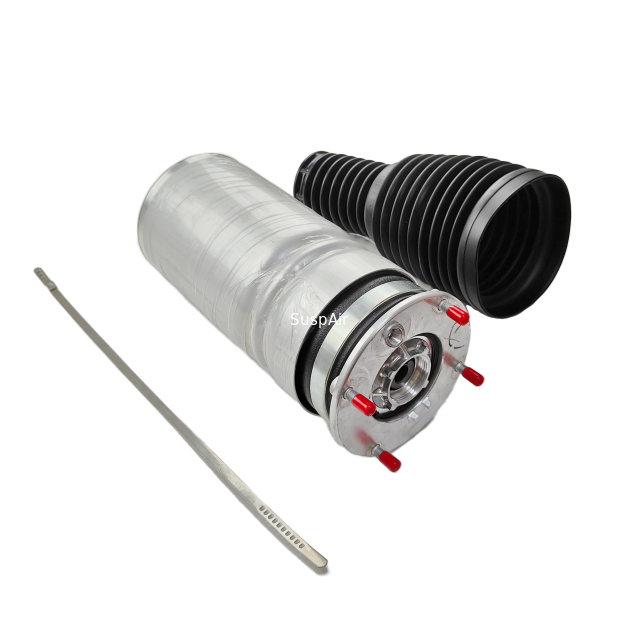

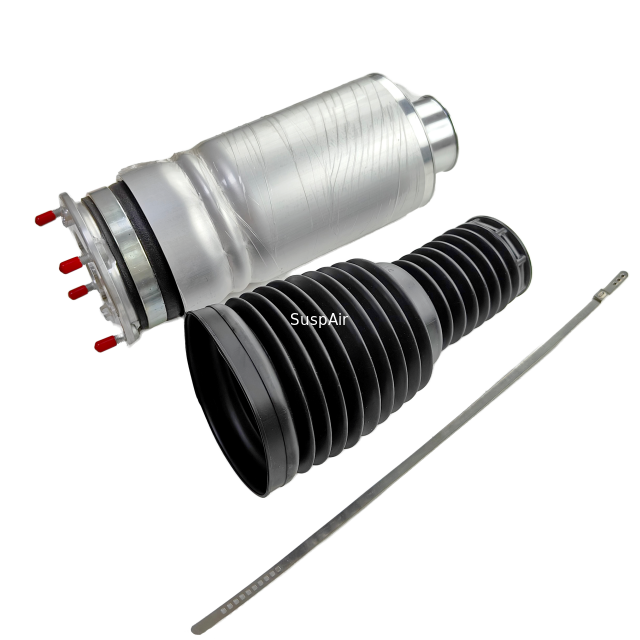

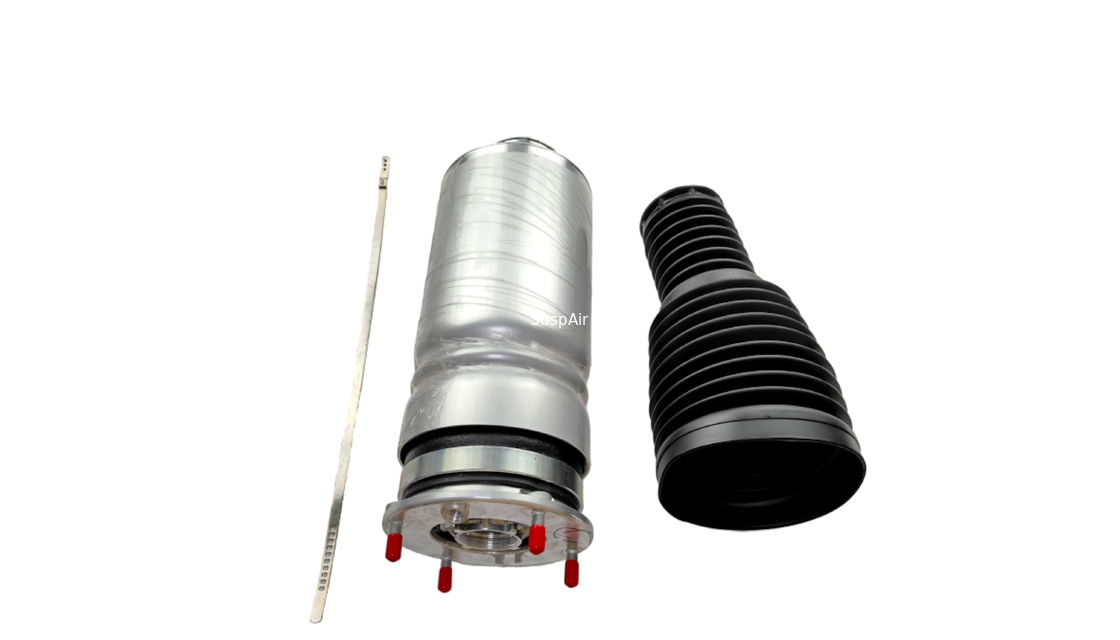

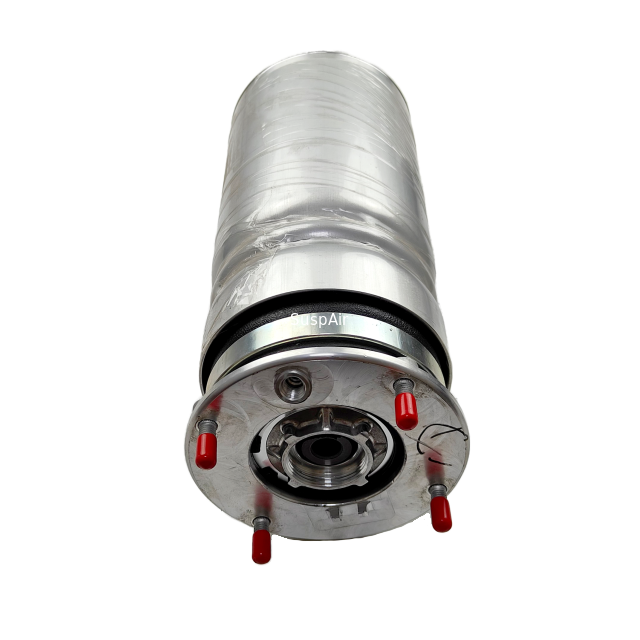

Product Description: This air spring repair kit is designed for Land Rover Range Rover L405. The kit includes reinforced air bladder, complete sealing O‑rings, metal crimp rings, bump stops, dust cover and all fastening accessories. The air bladder adopts multi‑layer EPDM cord fabric rubber, with excellent ozone‑resistance, high‑low temperature resistance and anti‑fatigue performance.

1:1 original dimension and interface allow direct repair for original strut without replacing the whole expensive strut assembly. It solves common faults such as slow air leakage, front end sagging, uneven ride height, suspension pressure loss, abnormal noise and suspension warning light. Every piece passes high‑pressure air tightness test. It keeps original ADS damping and ACE active stability function, perfectly compatible with factory EAS suspension system and reduces repair cost.

Note: Only fits front left strut with ACE active stabilizer system + ADS adaptive damping. Not compatible with non‑ACE, non‑ADS or mechanical spring suspension. Please verify original OE number, VIN and chassis configuration before purchase.

1. Land Rover Range Rover L405｜2013‑2022, vehicles equipped with ACE & ADS air suspension

Compatible engines: 3.0T Diesel, 4.4T Diesel, 5.0L Petrol, 5.0T Supercharged Petrol

Remark: Matching front right repair kit OE: LR087091

LR038805, LR038807, LR052776, LR057257, LR060137, LR072460, CPLA‑3C286‑CD

Remark: These are factory updated part numbers with identical structure, size and performance. Please check original marking before installation.

Q1: Is this for front left or front right? Can it fit vehicles without ACE system?

A: This is front left repair kit. It only works for struts with both ACE active stabilizer and ADS damping. Non‑ACE vehicles are not compatible.

Q2: Should I install repair kit or full strut assembly for leaking air spring?

A: If strut core, solenoid valve and damping function are intact, this repair kit is a cost‑effective option. Replace full strut if oil leakage or solenoid failure occurs.

Q3: What operations are required after installing repair kit?

A: Air tightness test, body height calibration, ADS damping adaptation and fault code clearing by professional diagnostic tool are mandatory to avoid suspension error codes and abnormal height.

Q4: Why does air leakage happen shortly after replacement?

A: Usually caused by reused old seals, improper assembly, aging air pipes or defective valve block, not air bladder quality problem. Replace all seals during installation.

Q5: What cases are excluded from warranty?

A: Warranty covers manufacturing defects. Damage from stone puncture, impact, rough installation and secondary damage caused by deformed chassis is excluded.

Q6: Does it fit all Range Rover L405 model years?

A: Only for L405 with factory ACE system. Lower‑spec chassis without ACE uses different part numbers and cannot be interchanged.

1. OEM Private Label: Custom logo printing, neutral packing and custom color box available.
2. Mass Production: Support large‑volume orders, mold development according to samples or drawings, full container order acceptance.
3. One‑stop Parts Supply: Air compressor, valve block, other repair kits, bump stops, dust boots and seal kits are available.
4. E‑commerce Support: Provide real‑shot photos and specification documents for Amazon, eBay, AliExpress and other cross‑border stores.
