Place of Origin:
China
Brand Name:
SuspAir
Certification:
CE
Model Number:
LR090653
OE Number: LR090653

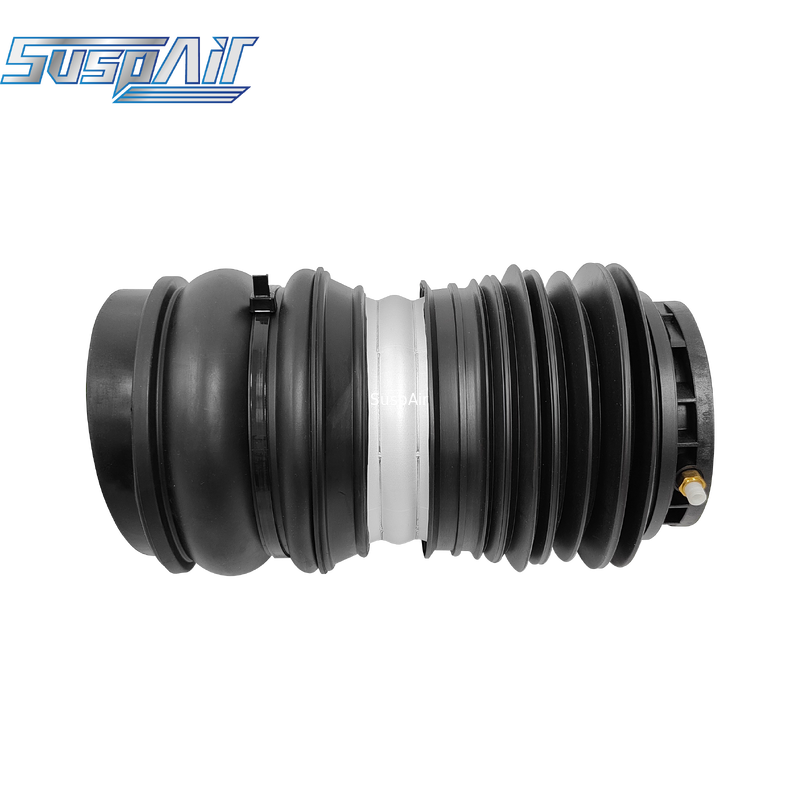

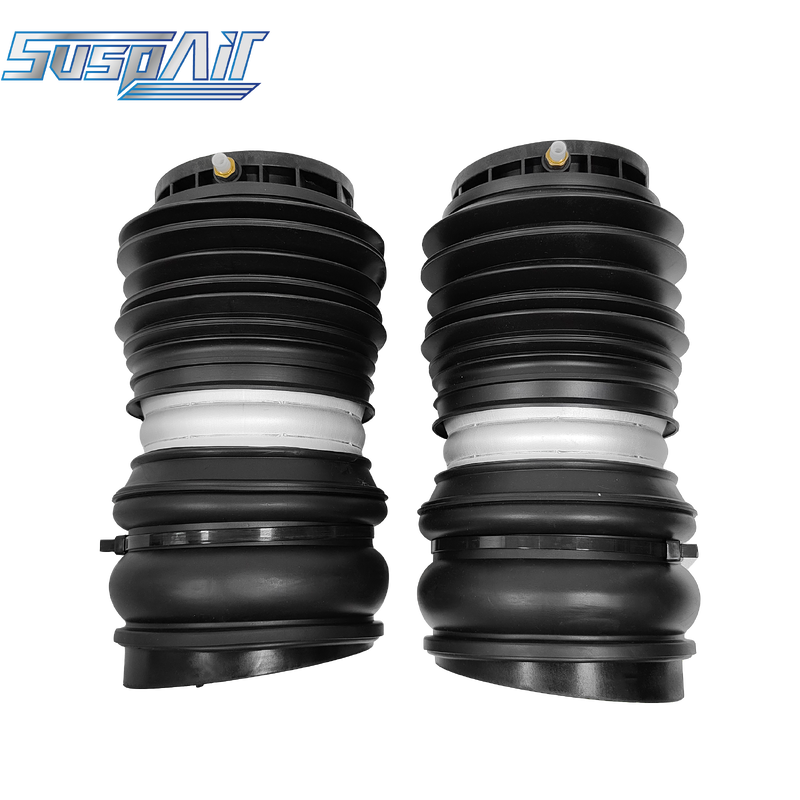

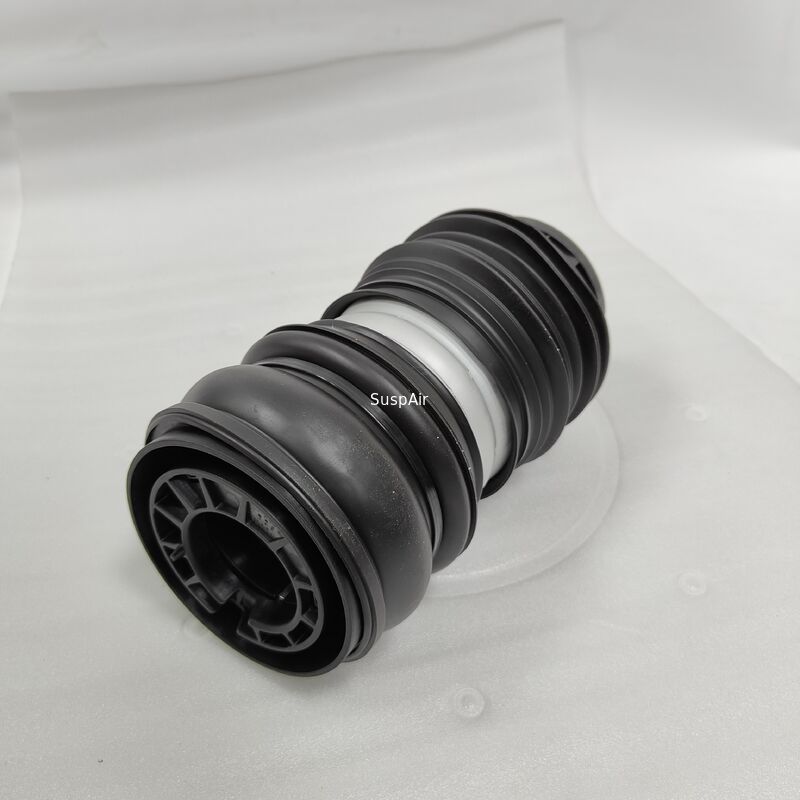

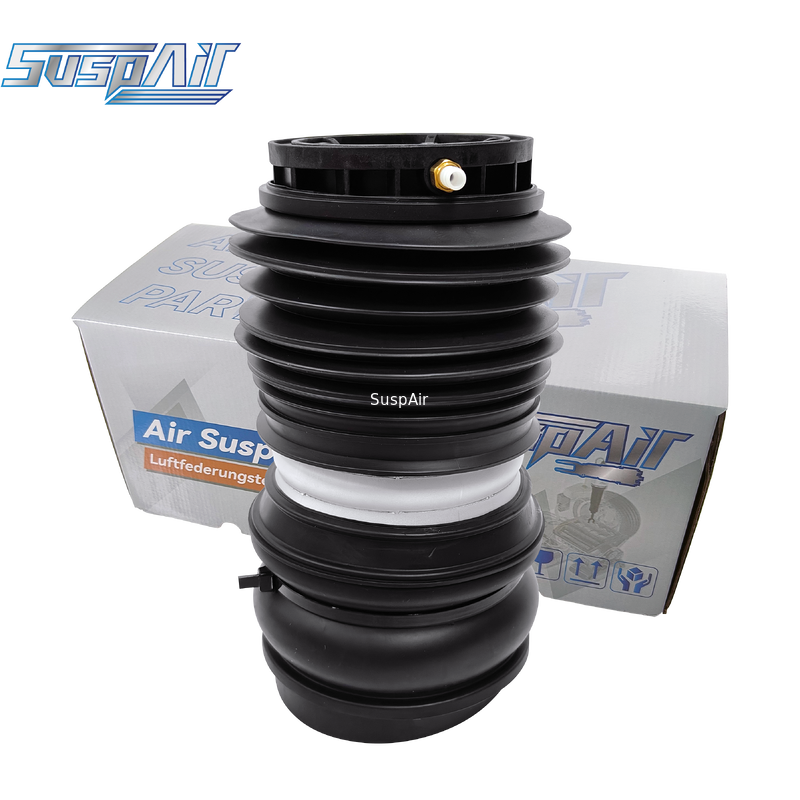

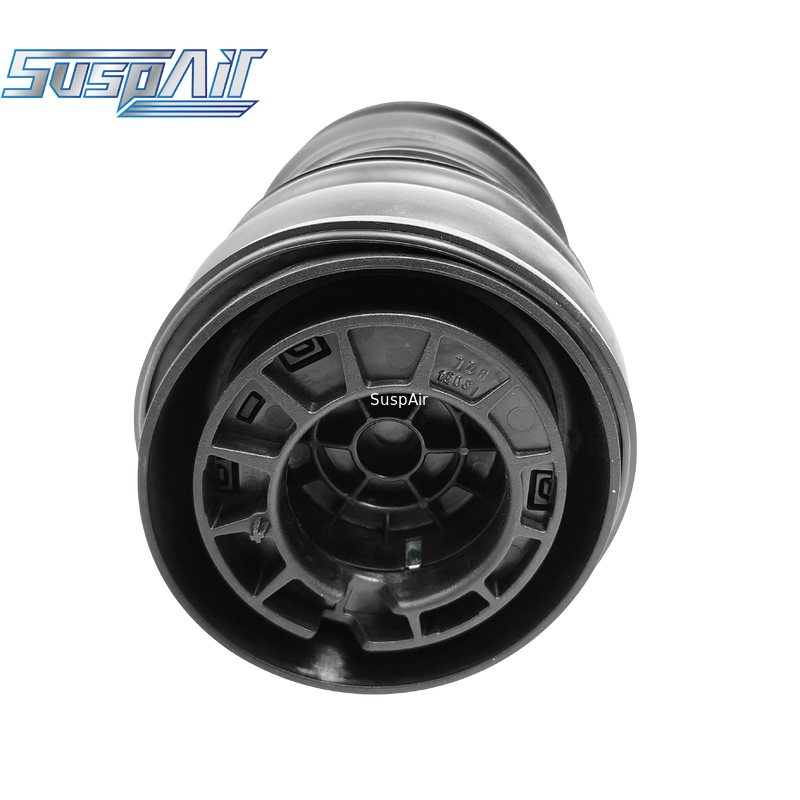

Product Name: Rear Right Air Spring Repair Kit
Installation Position: Rear Suspension, Rear Right Only
Kit Includes: Rear right air bladder, full set of sealing O‑rings, clamps, dust bump‑stop parts and complete installation accessories (strut core not included).
Product Description: LR090653 is an exclusive rear‑right air spring repair kit for Land Rover Range Rover Velar L560. The left and right rear struts of L560 are structurally different and non‑interchangeable. It is developed to solve typical factory faults including bladder cracking, slow air leakage, suspension pressure release and one‑side rear‑end sagging.
The bladder adopts multi‑layer reinforced EPDM cord‑reinforced rubber, delivering excellent high‑low temperature resistance, ozone‑aging resistance and anti‑fatigue performance under rough road conditions. 1:1 original‑factory‑matching size, air‑nozzle angle and mounting position enable direct replacement without modification.
You can reuse the original intact strut core instead of buying an expensive complete strut assembly to cut maintenance cost. It effectively fixes rear‑right sagging, uneven vehicle height, suspension warning light, bumping noise and vehicle collapse after parking. Every kit passes high‑pressure air‑tightness test and is fully compatible with original EAS suspension system.
LR146318, LR148865, J8A2‑5588‑AC
Q1: Is this kit universal for left and right? Can it be fitted on rear left?
A: No. LR090653 is rear‑right exclusive for Velar L560. Please use LR090654 for rear left. Mixed installation will cause mis‑fit and persistent air leakage.
Q2: When should I use this repair kit?
A: Use this kit if the original rear‑right strut core is oil‑tight with normal damping and no deformation, only air bladder leaks. Replace full strut assembly if strut core is damaged or leaking oil.
Q3: Does calibration need to be done after installation?
A: Yes. Air‑tightness test, body height calibration and fault‑code clearing are mandatory to avoid abnormal height and suspension error alerts.
Q4: Does this kit contain strut core?
A: No. It is a repair kit including bladder, seals and mounting accessories only. Original strut core will be reused.
Q5: Why does air leakage occur shortly after replacement?
A: Mostly not product quality issue. Possible causes: unclean sealing surface, reused old seals, improper assembly, aging air pipe or defective valve block. Replace all sealing accessories together during installation.
Q6: Does it fit Range Rover L405 / Range Rover Sport L494?
A: No. This repair kit is exclusive for Velar L560, other Land Rover chassis have different structures and are incompatible.
