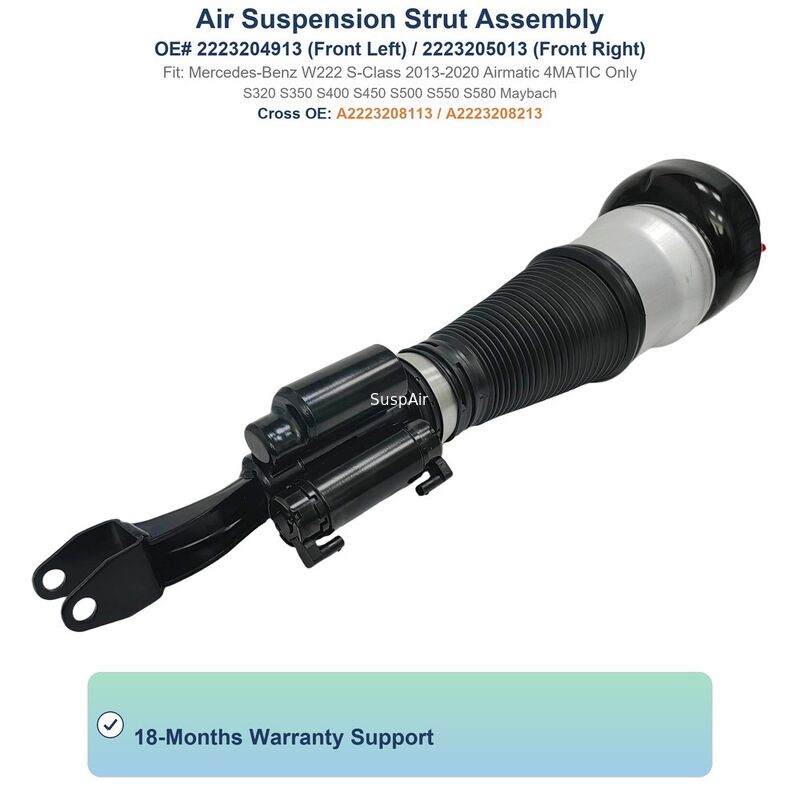

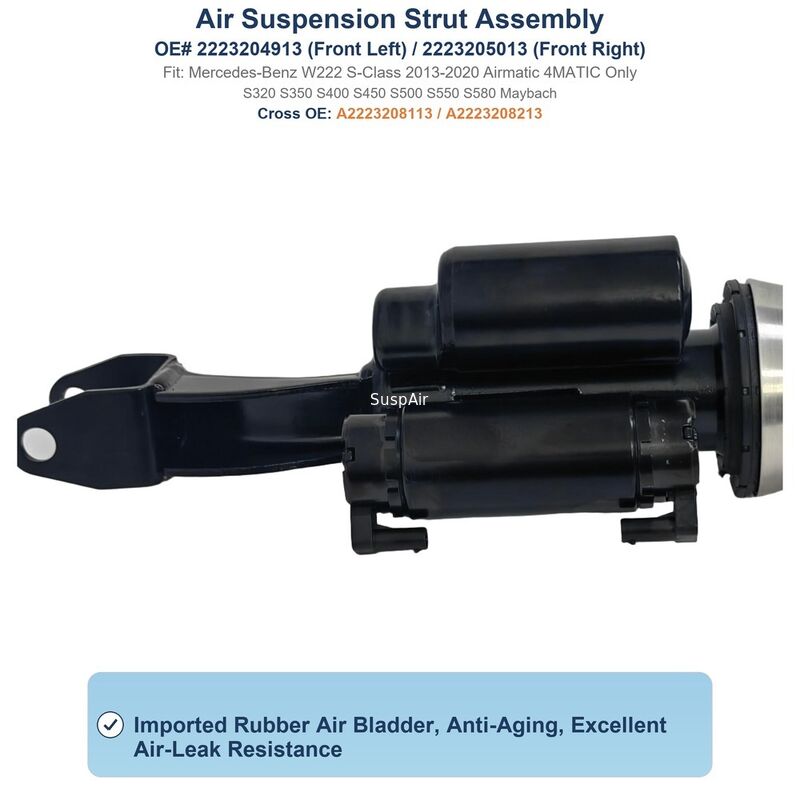

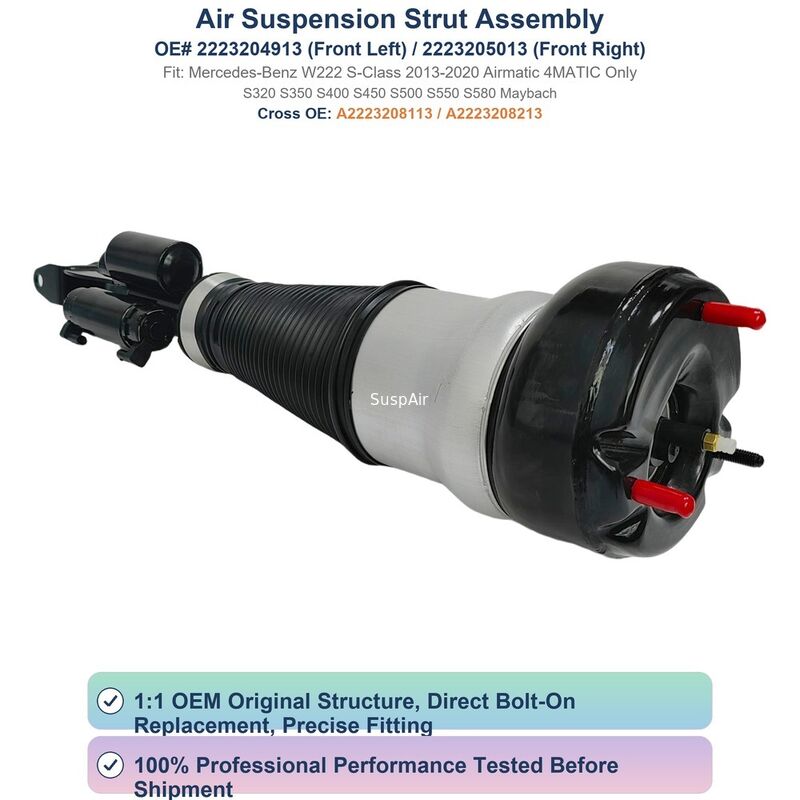

2223208113 Air Suspension Strut Front Mercedes‑Benz W222 S‑Class With ADS AWD

Q: Which car models does this front air suspension strut assembly fit? A: It is specially designed for Mercedes‑Benz W222 S‑Class 2014‑2020, only for 4MATIC all‑wheel‑drive vehicles equipped with factory ADS adaptive damping Airmatic system. Not applicable for 2MATIC and ABC hydraulic suspension models.

Q: Can I install left‑side unit on the right front axle? A: No, this is strictly side‑specific product. Left air strut only fits front left, right air strut only fits front right. Cross‑installation will cause assembly mismatch, abnormal noise, air leakage and suspension fault code. Please confirm correct side and 4MATIC version before ordering.

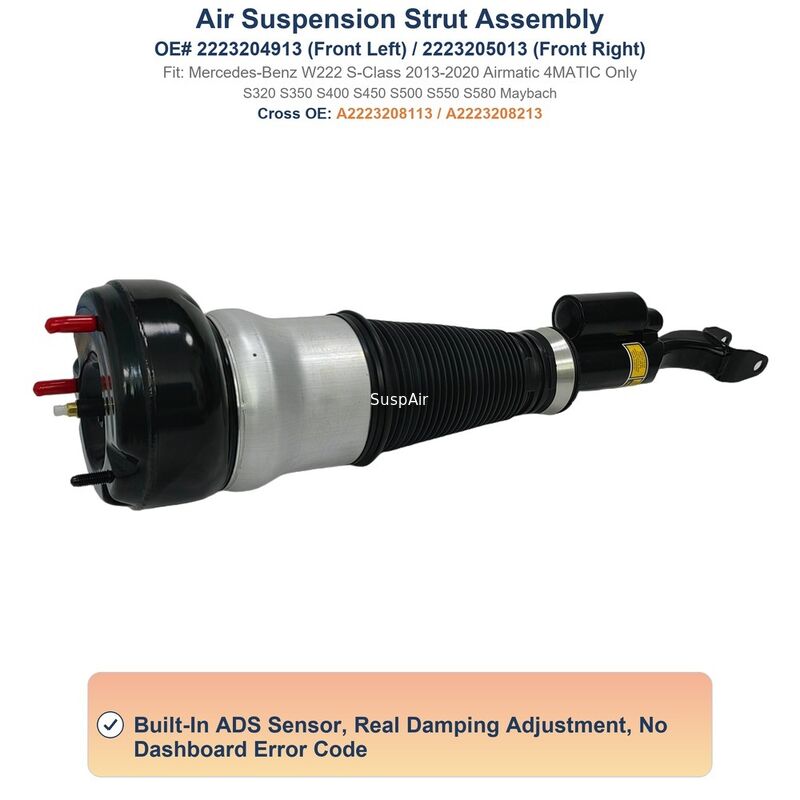

Q: Does this air strut come with ADS sensor? Will it trigger dashboard error code? A: Yes, it is pre‑installed with original‑spec ADS electronic damping sensor. After professional installation and system calibration by Mercedes‑Benz diagnostic tool, no dashboard fault code will occur.

Q: What are the common symptoms of failed front air suspension strut? A: Common symptoms include front end sagging, uneven left‑right ride height, frequent air compressor startup, knocking noise over bumps, air leakage from air spring, ADS warning light on dashboard, poor driving comfort. Timely replacement is recommended when these problems appear.

Q: Do I need calibration after replacement? A: Yes, professional Mercedes‑Benz diagnostic instrument is required to perform air suspension ride‑height and ADS system calibration after installation, to ensure normal Airmatic‑ADS system operation.

Q: Can I only replace the air bladder instead of full strut assembly? A: Theoretically feasible, but we recommend replacing the complete air suspension strut assembly, to guarantee damping performance, sensor function and long‑term sealing reliability.

Q: What quality tests have been performed? A: Every finished unit undergoes 24‑hour air tightness test (pressure drop ≤0.02MPa) and over 3‑million‑cycle fatigue test before shipment, effectively preventing early‑stage air leakage.

Q: Is it necessary to replace front left and right struts at the same time? A: You can replace only the damaged side, but simultaneous replacement of both front sides is recommended to achieve symmetric suspension performance and stable driving. Please order left and right separately.

Q: How long is the warranty period? A: We offer an 18‑month extended warranty. Free replacement is available for genuine product quality issues. Damage caused by improper installation, collision or man‑made destruction is not covered under warranty.

Q: Is this product CE and ISO9001 certified? A: Yes, this product is CE certified and manufactured under an ISO9001 quality management system, meeting international automotive aftermarket quality standards.
