Place of Origin:
China
Brand Name:
SuspAir
Certification:
ISO9001/CE
Model Number:
Mercedes‑Benz W212 E‑Class / W218 CLS‑Class 2010‑2016 E200 E250 E300 E350 E400 E500, CLS300 CLS350 CLS400 CLS500 (**With ADS Airmatic System, RWD Only**)

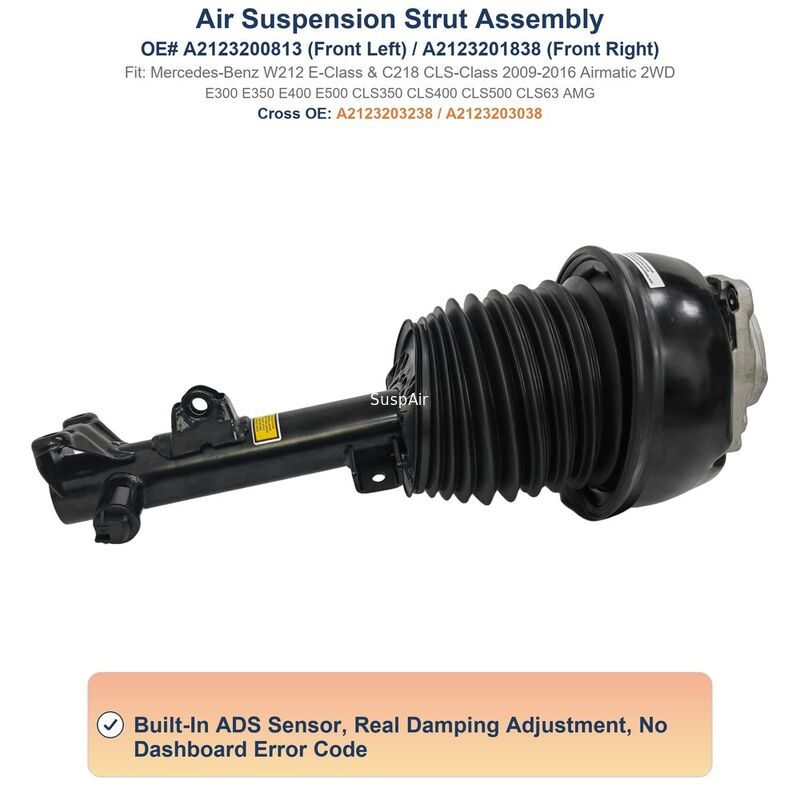

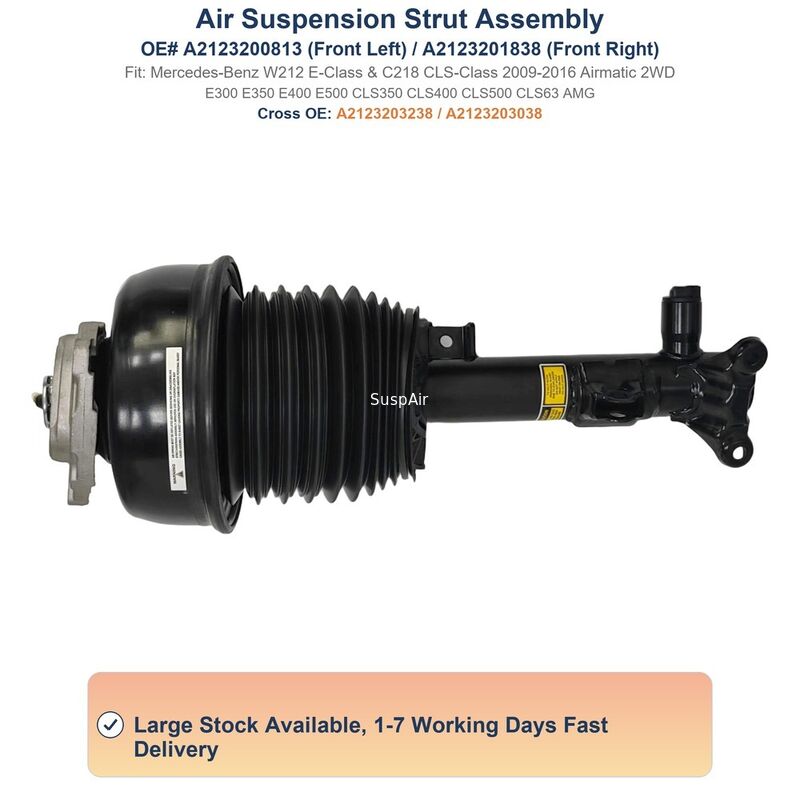

A2123200813 Air suspension strut assembly, Front Left & Right For Mercedes‑Benz W212 E‑Class / W218 CLS‑Class 2010‑2016, With ADS, OEM Replacement Air suspension strut assembly
This front air suspension strut assembly with built‑in ADS sensor, 1:1 OEM replication for ADS‑equipped W212 E‑Class / W218 CLS‑Class, fits 2WD only. Not for 4MATIC & ABC hydraulic suspension. Passed air tightness and fatigue tests, stable damping performance, sufficient stock with fast delivery and 18‑month warranty.
Product Specification Sheet (20 Parameters)
| Parameter | Value |
|---|---|
| OE Number | Front Left: A2123200813, A2123202338
|
| Interchange OE | Front Left:2123200813
|
| Vehicle Series | Mercedes‑Benz W212 E‑Class / W218 CLS‑Class |
| Model Year | 2010‑2016 |
| Vehicle Models | E200 E250 E300 E350 E400 E500, CLS300 CLS350 CLS400 CLS500 (With ADS Airmatic System, 2WD Only) |
| Mounting Position | Front Axle Left / Front Axle Right(Side‑specific) |
| ADS Damping System | With ADS electronic damping sensor |
| Shock Absorber Type | Air suspension strut assembly |
| Spring Type | Integrated Air Spring |
| Installation Method | Bolt‑on, direct replacement of OEM part |

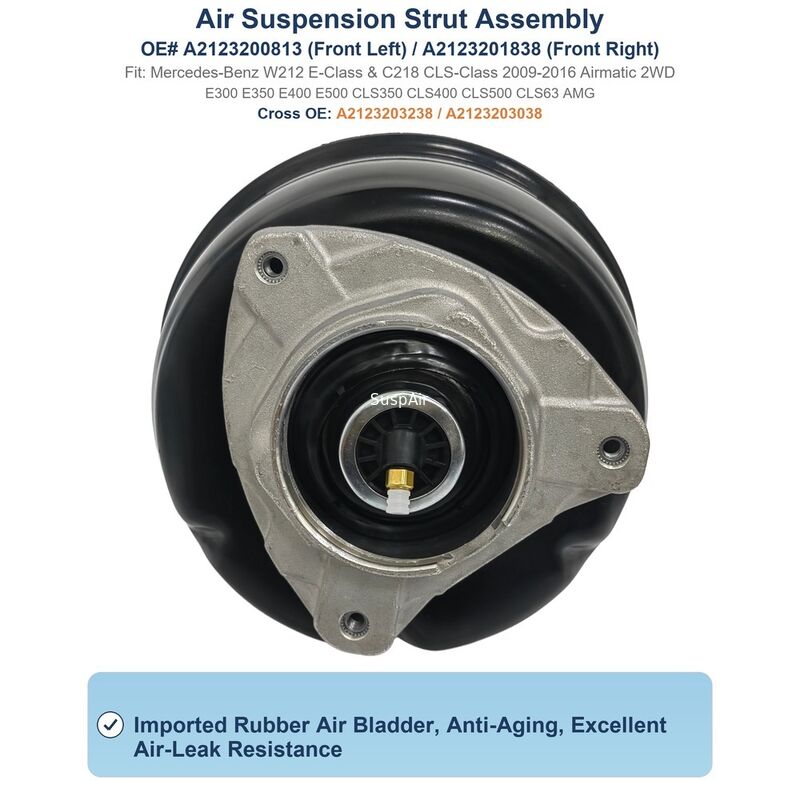

| Material | Imported natural rubber air bladder + high‑strength aluminum alloy cylinder + CNC machined metal end fittings |
| Warranty | 18 Months |
| Certification | CE Certified / ISO9001 Quality Management System Certified |
| Origin | China |
| Delivery Time | In stock, 1‑7 working days shipping |
| Drive Type | Only fit 2WD models,NOT for 4MATIC all‑wheel‑drive |
| Left/Right Universal | No, side‑specific, cannot cross‑install |
| Test Standard | 24h air tightness test (pressure drop ≤0.02MPa) + 3 million cycles fatigue test |
| Packaging | Neutral export carton, individually packed, custom brand packaging available |
| Remarks | W212/W218 front air suspension strut assembly with ADS sensor. Strictly side‑specific, left unit cannot fit right side and vice versa. Only fit 2WD vehicles factory‑equipped with ADS Airmatic damping system. Not for 4MATIC and ABC hydraulic suspension. |
Top 10 Core Selling Points
| No. | Selling Points |
|---|---|
| 1 | Standard Airmatic air suspension structure, stable damping performance, comfortable driving experience |
| 2 | Imported rubber air bladder, anti‑aging property, excellent air‑leak resistance performance |

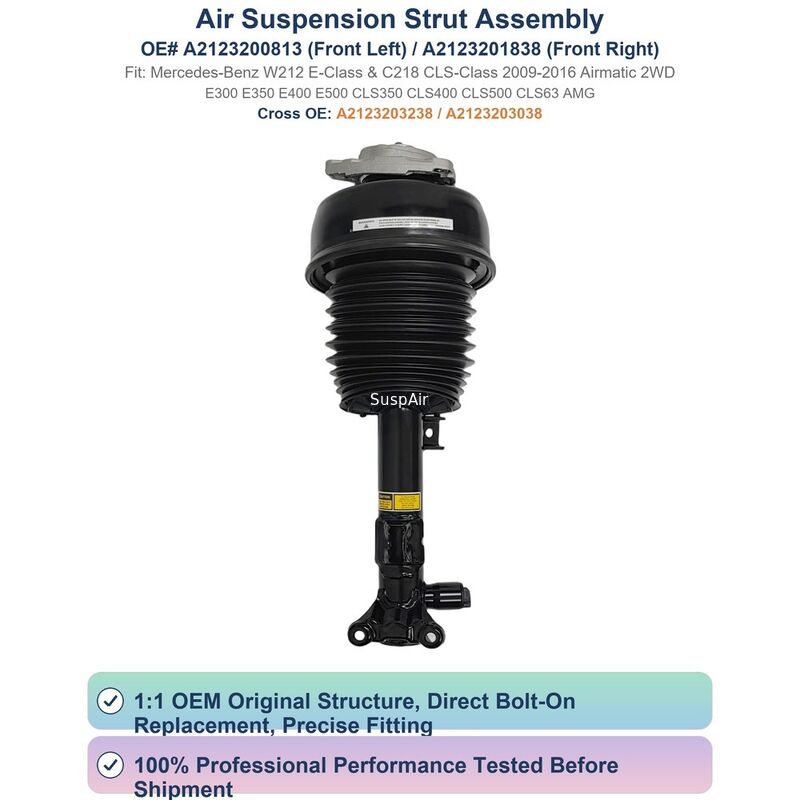

| 3 | 1:1 OEM original structure, direct bolt‑on replacement, precise fitting |
| 4 | 24‑hour air tightness test (≤0.02MPa) and 3‑million‑cycle fatigue test before shipment |
| 5 | CNC precision machining plus anti‑corrosion coating for long‑term outdoor durability |
| 6 | Restore original vehicle height, eliminate abnormal chassis noise, improve driving comfort |
| 7 | Optimized heat dissipation structure, effectively resist thermal attenuation under continuous load |
| 8 | Strict side‑specific design, matches original suspension geometry for left or right side separately |
| 9 | Large stock available, 1‑7 working days fast delivery |
| 10 | 18‑months warranty, CE & ISO9001 certification support |
About Us
FAQ:
Q: Which car models does this front air suspension strut assembly fit?
A: It is specially designed for Mercedes‑Benz W212 E‑Class / W218 CLS‑Class 2010‑2016, only for RWD vehicles equipped with factory ADS adaptive damping Airmatic system. Not applicable for 4MATIC all‑wheel‑drive and ABC hydraulic suspension models.
Q: Can I install left‑side unit on the right front axle?
A: No, this is strictly side‑specific product. Left air strut only fits front left, right air strut only fits front right. Cross‑installation will cause assembly mismatch, abnormal noise, air leakage and suspension fault code. Please confirm correct side and 2WD version before ordering.
Q: Does this air strut come with ADS sensor? Will it trigger dashboard error code?
A: Yes, it is pre‑installed with original‑spec ADS electronic damping sensor. After professional installation and system calibration by Mercedes‑Benz diagnostic tool, no dashboard fault code will occur.
Q: What are the common symptoms of failed front air suspension strut assembly?
A: Common symptoms include front end sagging, uneven left‑right ride height, frequent air compressor startup, knocking noise over bumps, air leakage from air spring, ADS warning light on dashboard, poor driving comfort. Timely replacement is recommended when these problems appear.
Q: Do I need calibration after replacement?
A: Yes, professional Mercedes‑Benz diagnostic instrument is required to perform air suspension ride‑height and ADS system calibration after installation, to ensure normal system operation.
Q: Can I only replace the air bladder instead of full strut assembly?
A: Theoretically feasible, but we recommend replacing the complete air suspension strut assembly, to guarantee damping performance, sensor function and long‑term sealing reliability.
Q: What quality tests have been performed?
A: Every finished unit undergoes 24‑hour air tightness test (pressure drop ≤0.02MPa) and over 3‑million‑cycle fatigue test before shipment, effectively preventing early‑stage air leakage.
Q: Is it necessary to replace front left and right struts at the same time?
A: You can replace only the damaged side, but simultaneous replacement of both front sides is recommended to achieve symmetric suspension performance and stable driving. Please order left and right separately.
Q: How long is the warranty period?
A: We offer an 18‑month extended warranty. Free replacement is available for genuine product quality issues. Damage caused by improper installation, collision or man‑made destruction is not covered under warranty.
Q: Is this product CE and ISO9001 certified?
A: Yes, this product is CE certified and manufactured under an ISO9001 quality management system, meeting international automotive aftermarket quality standards.
