Place of Origin:
China
Brand Name:
SuspAir
Certification:
ISO9001/CE
Model Number:
Land Rover Range Rover Sport (L461, third generation) 2022–2026

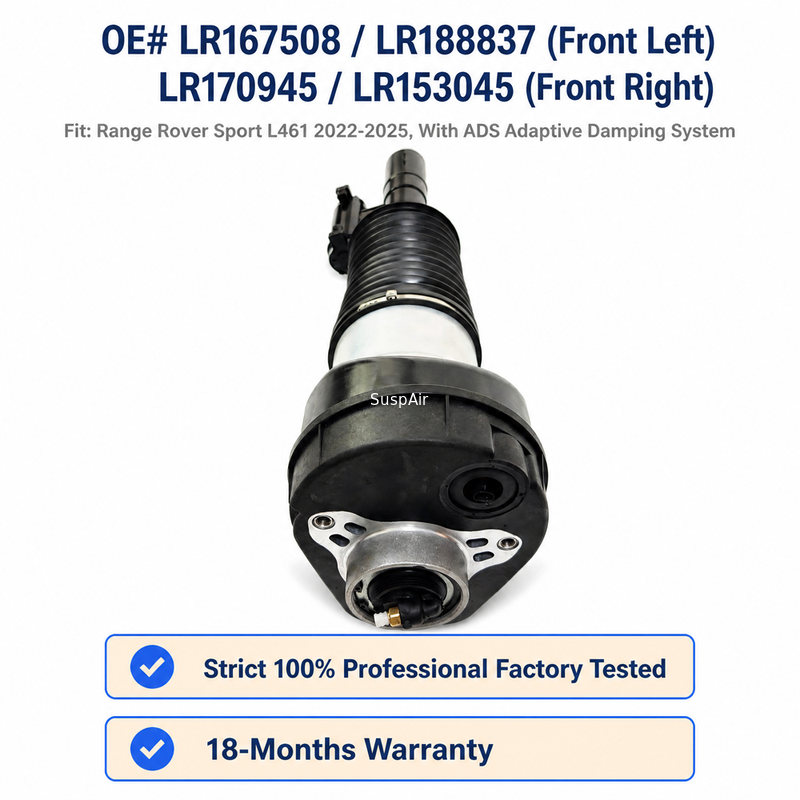

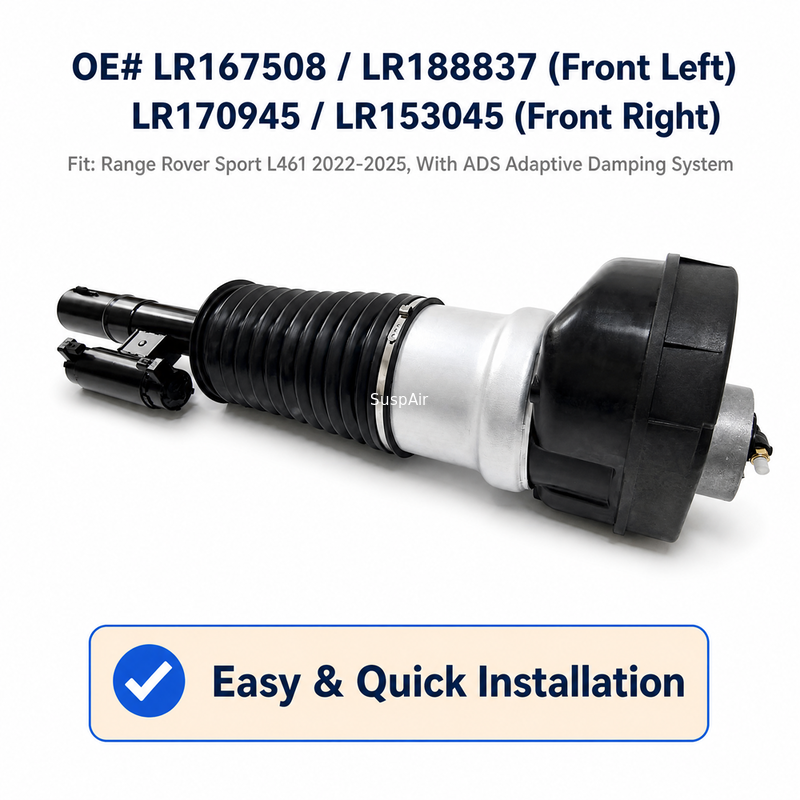

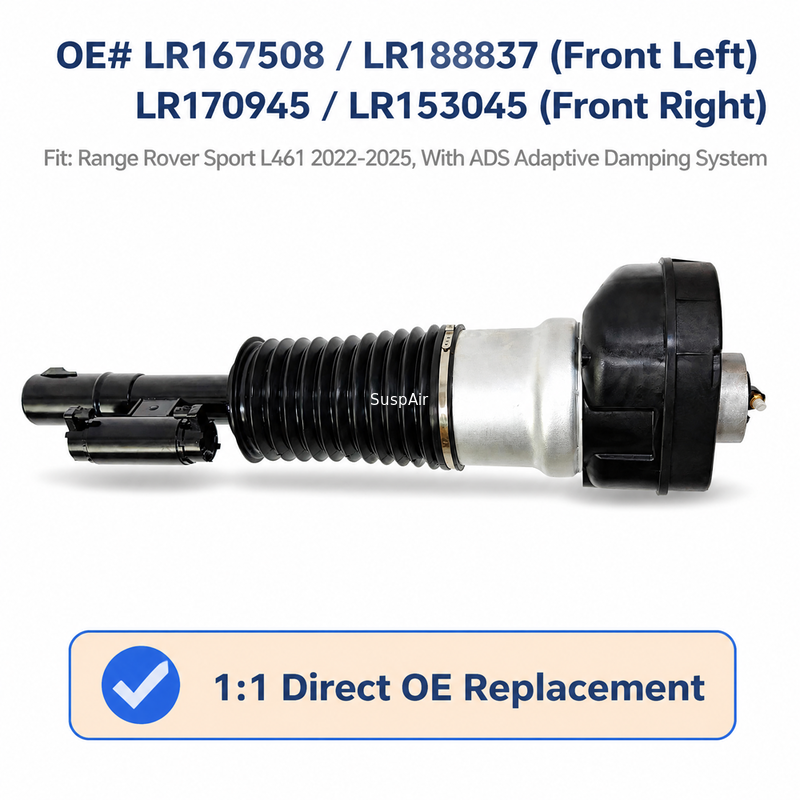

2022-2026 Range Rover Sport L461 Electric Front Air Suspension Shock With ADS LR167508 LR188837
This front air suspension shock is the WITH ADS (Adaptive Damping System / electronic damping control) version for the Range Rover Sport (L461, 2022–2025). It uses a DUAL-INDUCTOR design: besides the electronic damping connector on the damper, the top mount carries an additional solenoid valve that interacts with the damper's inductor — this is what distinguishes it from the L460 (Range Rover 2022+) single-inductor unit. It matches the genuine Land Rover OE numbers LR167508 / LR188837 (Front Left) and LR170945/ LR153045(Front Right) in mounting interface, spring rate and damping calibration, integrating the air spring and the shock absorber into one complete unit to restore original ride comfort, ride height and adaptive damping performance. Every unit is 100% air-leak tested before shipment and with an 18-month warranty.
Product Specification Sheet
| Item | Content |
| Product Name | Front Air Suspension Shock - WITH ADS (Air Spring + Shock Absorber Assembly) |
| Genuine OE No. (Front Left) | LR167508, LR188837 |
| Genuine OE No. (Front Right) | LR170945, LR153045 |
| Applicable Brand | Land Rover |
| Vehicle Line | Range Rover Sport (L461 |
| Model Years | 2022-2025 (confirm exact year by VIN) |
| Damping Control | With ADS (electronic damping control / adaptive damping) - damper has an electronic valve/connector; non-ADS version is a different part, NOT interchangeable |
| Common Models | L461 RRS with air suspension + adaptive damping - e.g. P440e, P400, P530, D300 / D350 / D400 (confirm by VIN) |
| Installation Position | Front axle - Front Left / Front Right (side-specific) |
| Structure | Air spring + shock absorber integrated assembly with electronic damping valve/connector |
| Bellows Material | High-strength compound rubber (resistant to extreme temperatures and aging) |
| Air Tightness | 100% individually air-leak tested before shipment |
| Packing | Individual protective packaging; left/right pair set available |
| Warranty | 18 months |
| Shipping | Sea / air / courier; export-standard packaging |
Top Selling Points
| Selling Point | Detail |
| With ADS Version | Correct Adaptive Damping System version - electronic damping valve and connector included; adaptive ride quality restored |
| OE-Perfect Match | Replicated to OEM interface, spring rate and damping calibration; original ride height and leveling performance restored |
| Integrated Assembly | Air spring, shock absorber and damping valve in one complete unit - direct replacement, no part matching required |
| 100% Air-Leak Tested | Every unit individually pressure-tested before shipment to eliminate slow leaks and sagging |
| Premium Rubber Bellows | High-strength compound rubber; rated from -40C to +80C; ozone/aging resistant for longer service life |
| New-Generation Fitment | Built for the L461 platform (2022+) - current-generation Range Rover Sport coverage |
| Sold as Left/Right Pair | Pair set available; same-axle replacement recommended for consistent performance |
| 18-Month Warranty | Extended 18-month warranty + pre-sale VIN check + after-sales technical support |
About Us
FAQ:
Q1: Which OE numbers are for which side? Front Left: LR167508, LR188837. Front Right: LR170945. Don't mix left with right.
Q2: Which vehicles does this fit? Range Rover Sport (L461, 2022–2025) with air suspension + ADS (adaptive damping). Vehicles without adaptive damping use the non-ADS version — do NOT fit this unit.
Q3: Why are there two numbers for the left side? LR167508 and LR188837 are both listed for the front left; they are most likely revision / supersession numbers of the same left unit (LR188837 is a newer number with no public catalog record yet). Match the exact number on your original unit by VIN.
Q4: How do I tell the ADS version from the non-ADS one? The ADS strut has an electronic damping valve with an electrical connector on the damper. If the original unit has no connector, it is the non-electric version.
Q5: Is this the complete strut assembly? Yes — air spring bellows, shock absorber and damping valve integrated into one unit, air fitting ready to connect. Direct replacement of the original strut.
Q6: Do I need to replace both front sides at the same time? Same-axle pair replacement is strongly recommended. An old unit on the other side causes uneven ride height and leveling behavior.
Q7: What should I pay attention to during installation? Release air suspension pressure per the workshop manual; disconnect the electrical connector cleanly and protect connector + air fitting from dirt; mount and reconnect; start the car, run the ride-height reset / system initialization; check left/right height and leaks before a road test.
Q8: Warranty policy and shipping damage? 18-month warranty under normal use. For shipping damage, inspect within 48 hours of receipt and send photos/video — the seller arranges a replacement.
Q9: Service life and maintenance? Depends on road conditions and climate. Keep bellows clean and check for cracks during routine service; if the bellows leak, replace the complete unit.
Q10: Are aftermarket (non-genuine) alternatives available for this number? As of 2026-08-25, public aftermarket catalogs (spareto / autodoc) do not yet list equivalents for LR167508 / LR188837 / LR170945 — these are very recent OE numbers. The customer's own production is currently the practical source.
Compiled: 2026-08-25 ｜ Vehicle application, side and ADS status per the customer's product listing (Range Rover Sport L461, 2022-2025, With ADS, Front L/R). LR167508 and LR170945 confirmed as genuine LAND ROVER OE numbers via autodoc.co.uk. LR188837 has no public catalog record; LR167508 / LR188837 treated as left-side revision pair (inference — confirm by VIN). No aftermarket equivalents in public catalogs as of compilation date. 18-month warranty standard.
