2053200125 Rear Left Air Spring Bag for Mercedes-Benz W205 C-Class
1. Product Introduction
Original OE Number: 2053200125

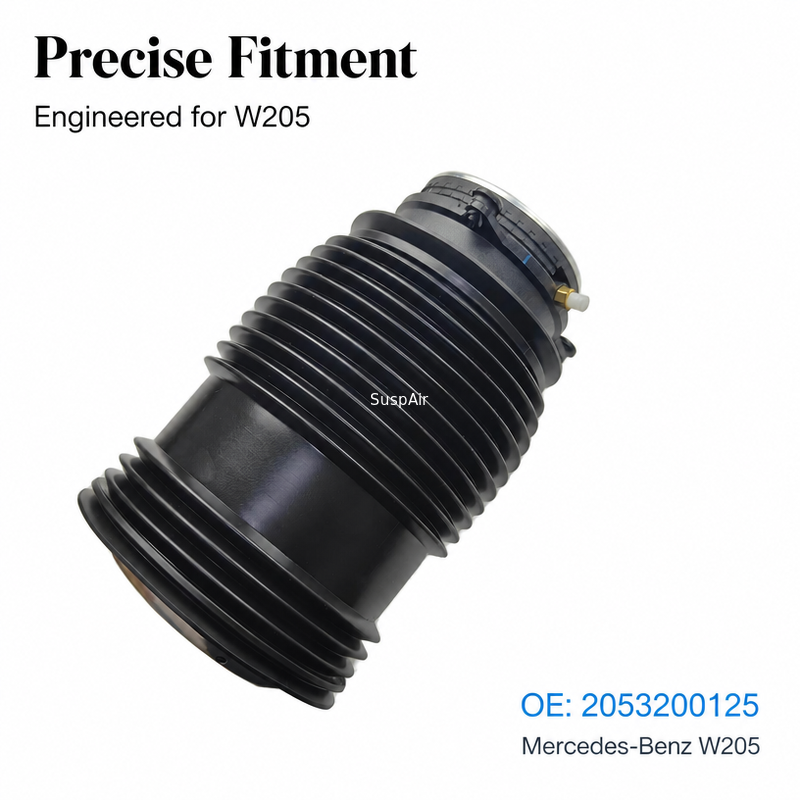

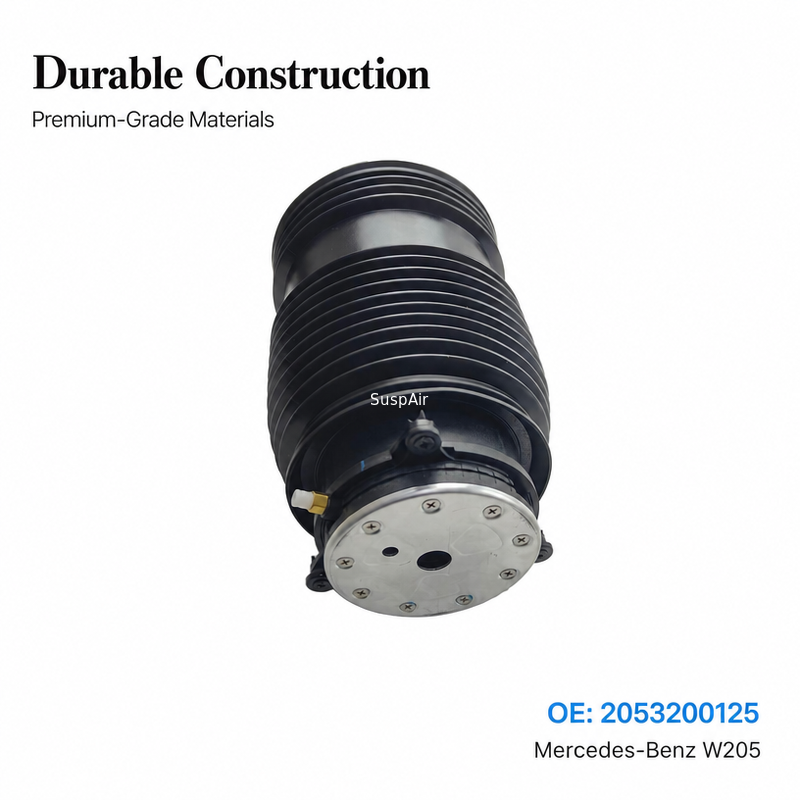

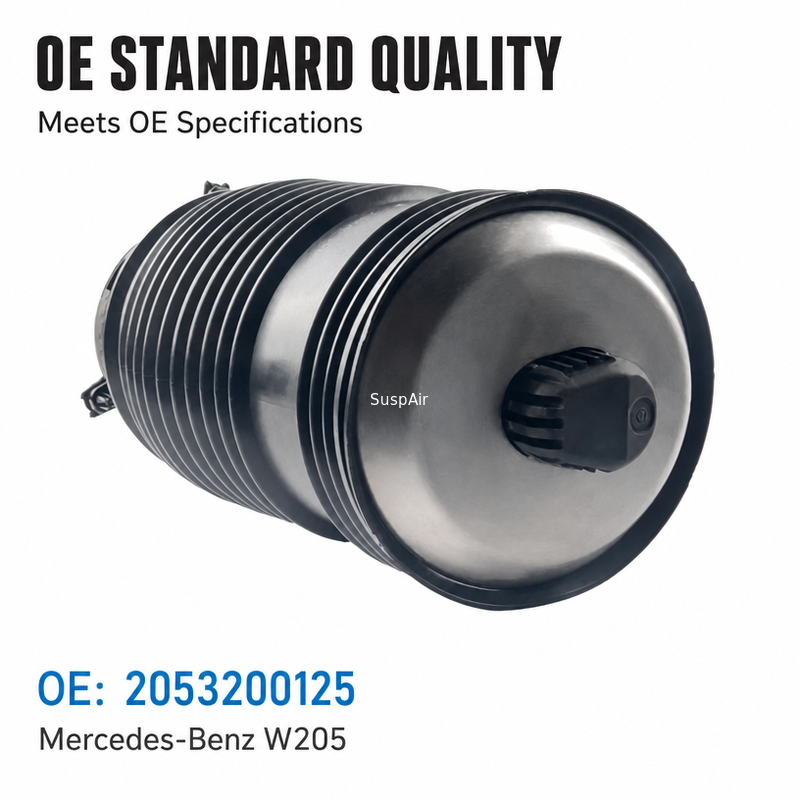

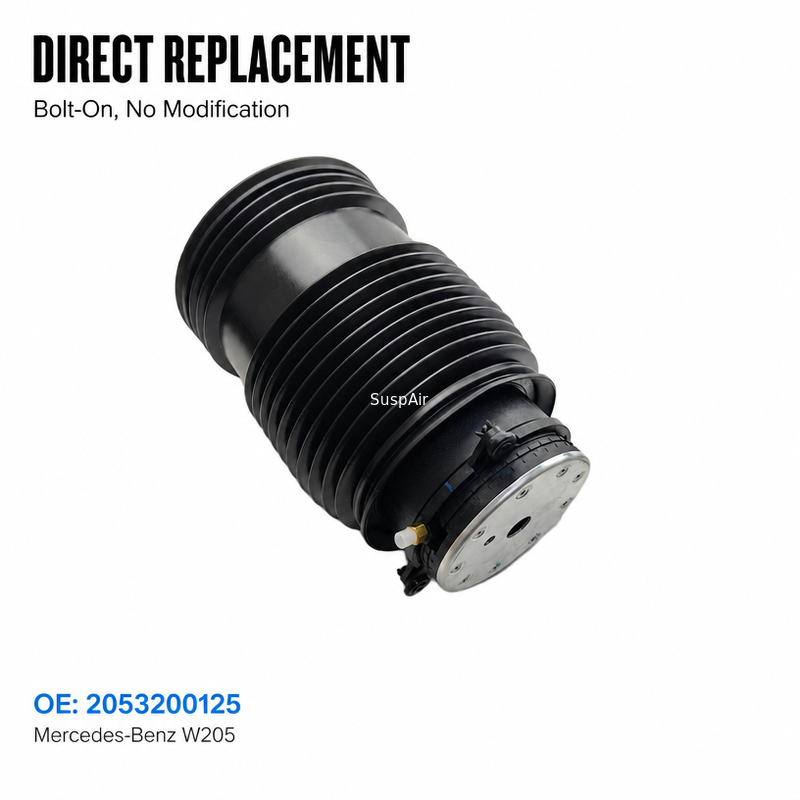

Product Name: Mercedes-Benz W205 C-Class Rear Left Air Spring, Rear Air Suspension Bag Assembly
Installation Position: Rear left air suspension, Rear Left Exclusive, Not interchangeable for left and right. This is a complete integrated rear air spring assembly with integral rubber bellows and upper & lower base structure, directly replacing the original rear left air spring. Shock absorber damper is not included.
Product Description
2053200125 is a dedicated rear left air spring assembly for Mercedes-Benz W205/S205 C-Class, exclusively compatible with high-end models equipped with factory Airmatic air suspension. The rear axle of W205 models bears vehicle self-weight and trunk load. Long-term continuous telescopic pressure, extreme temperature changes, rainwater, dust and sand erosion easily cause aging, hardening, cracking, bulging, delamination, slow air leakage and rapid pressure relief of the original rubber bellows.
Typical vehicle faults include rear sagging after long-term parking, low rear-left body height, frequent activation of air compressor, abnormal air suspension height alarm, reduced chassis comfort and loose rebound on bumpy roads.
This rear left air spring is 1:1 precisely molded according to original W205 factory specifications. All mounting hole positions, bellows stroke, pressure resistance and sealing structure fully match OEM standards. Adopting multi-layer reinforced weather-resistant composite rubber, it features excellent tensile resistance, crack resistance, aging resistance and temperature stability with long-lasting air tightness. It supports non-destructive in-situ replacement without drilling or modification, fully compatible with the original Airmatic intelligent air suspension system. After installation, the vehicle body height is balanced and accurate, restoring the original chassis texture and completely solving common faults such as rear sagging, air leakage and unbalanced body tilt. It is a high-quality core accessory for auto repair replacement, bulk wholesale and cross-border export.
Core Advantages
- ✅ 1:1 OEM precise replication, fully matched with W205 rear left suspension in hole position, size and pressure parameters for direct bolt-on installation
- ✅ Solves typical W205 air suspension faults: rear left sagging, slow air leakage, unbalanced body height and frequent compressor operation
- ✅ Integrated one-piece structure with factory air pressure testing for each unit, effectively avoiding later quality problems and rework
- ✅ Thickened multi-layer rubber structure with outstanding fatigue and aging resistance, suitable for long-term load-bearing working conditions
- ✅ Strict left-side exclusive design, compatible with all W205 air suspension 2WD and 4WD models
- ✅ Simple installation, only leak test and height calibration required, no programming or coding needed
2. Custom Attributes (E-commerce Listing)
Brand: Mercedes-Benz
Chassis Code: W205 / S205
Compatible Model: Mercedes-Benz C-Class
Applicable Version: High-end models with factory Airmatic air suspension (universal for 2WD / 4WD)
Non-Applicable Version: Mechanical spring suspension models, low-config models without air suspension
Applicable Years: 2014–2021
Installation Position: Rear Axle Left (Rear Left Exclusive), not interchangeable left/right
Product OE: 2053200125
Corresponding Rear Right OE: 2053200225
Product Type: Rear Left Air Spring Assembly, Rear Air Suspension Bag
Assembly Feature: Complete air spring assembly (shock absorber damper not included)
Material: Multi-layer reinforced weather-resistant composite rubber, high-strength anti-corrosion base, anti-rust metal crimp ring
Process Standard: OEM parameter replication, integral crimp molding, anti-aging & anti-cracking treatment, 100% factory air tightness test
Compatibility Note: Exclusive rear left part for W205/S205 chassis; rear right position requires OE 2053200225; not compatible with mechanical suspension models; only for factory Airmatic air suspension vehicles
Sales Mode: Retail spot sales, bulk wholesale, full container export orders
Inspection Standard: Single-piece air pressure tightness test, full appearance inspection, precise dimension calibration
Packaging: Neutral carton packaging, customized color box and OEM private packaging available
Working Condition: Suitable for urban commuting, highway driving and bumpy roads, adapting to long-term rear axle load-bearing scenarios
Risk Warning: Only for rear left installation, wrong installation on rear right is prohibited; over-inflation forbidden; air tightness test and height calibration are mandatory after installation
Recommended Matching Parts: Can be replaced together with air suspension compressor, distribution valve, height sensor and repair kit for full system maintenance
3. Compatible Vehicles
Compatibility Instruction: This product is an exclusive rear left air spring for W205/S205 C-Class. Left and right structures are strictly non-interchangeable. Only fits high-end factory Airmatic air suspension models, not compatible with mechanical suspension chassis.
