Place of Origin:
China
Brand Name:
SuspAir
Certification:
CE
Model Number:
4877147AH
OEM OE Number: 4877147AH

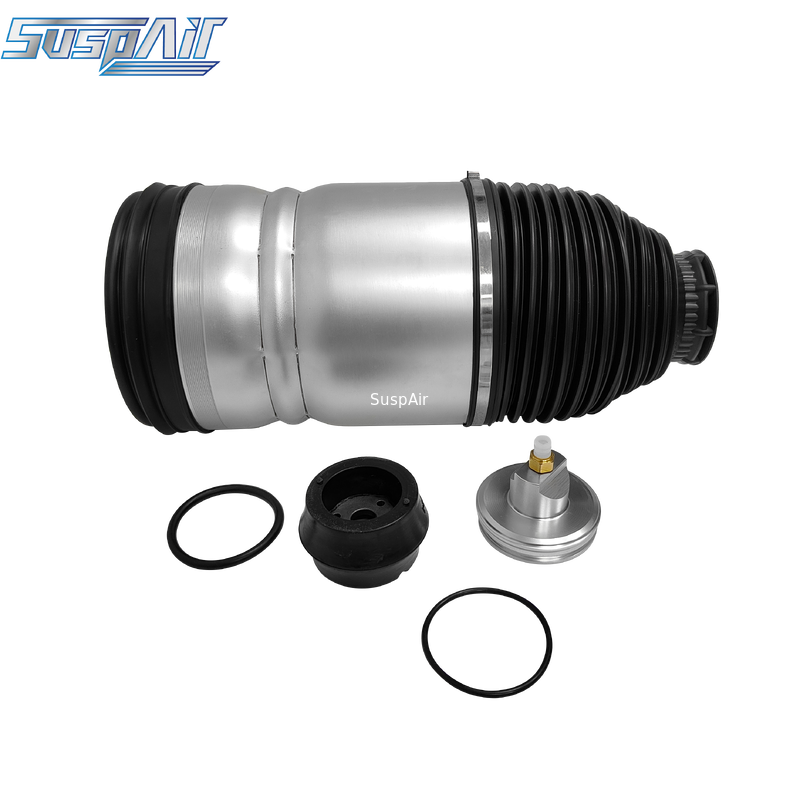

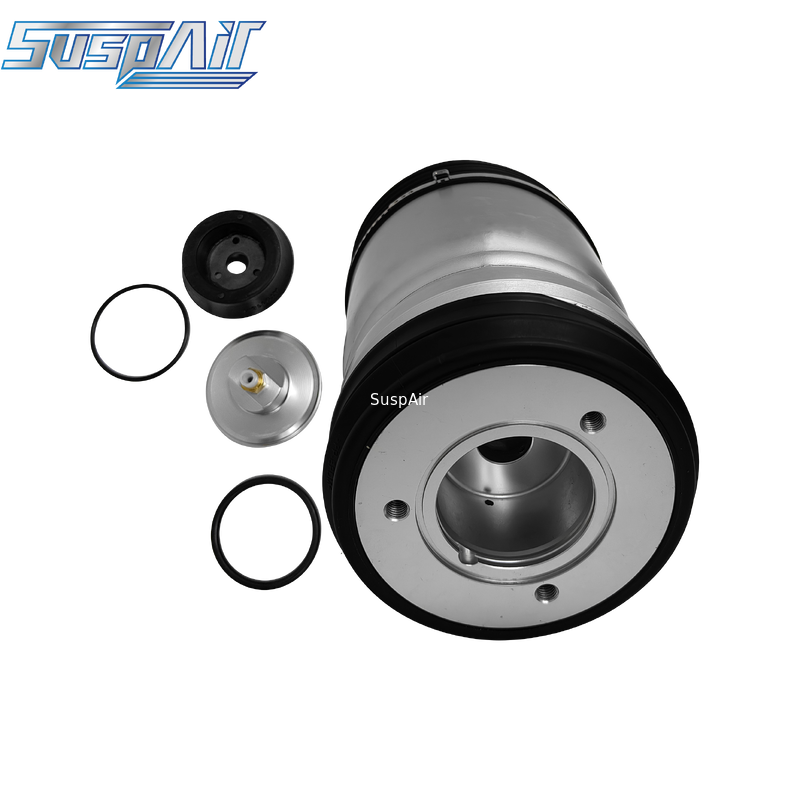

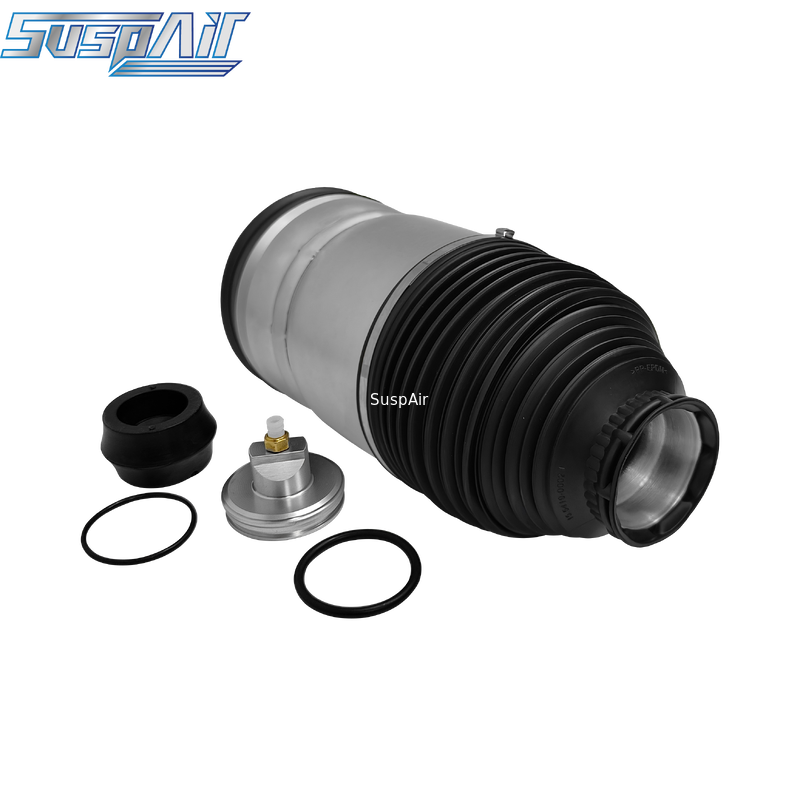

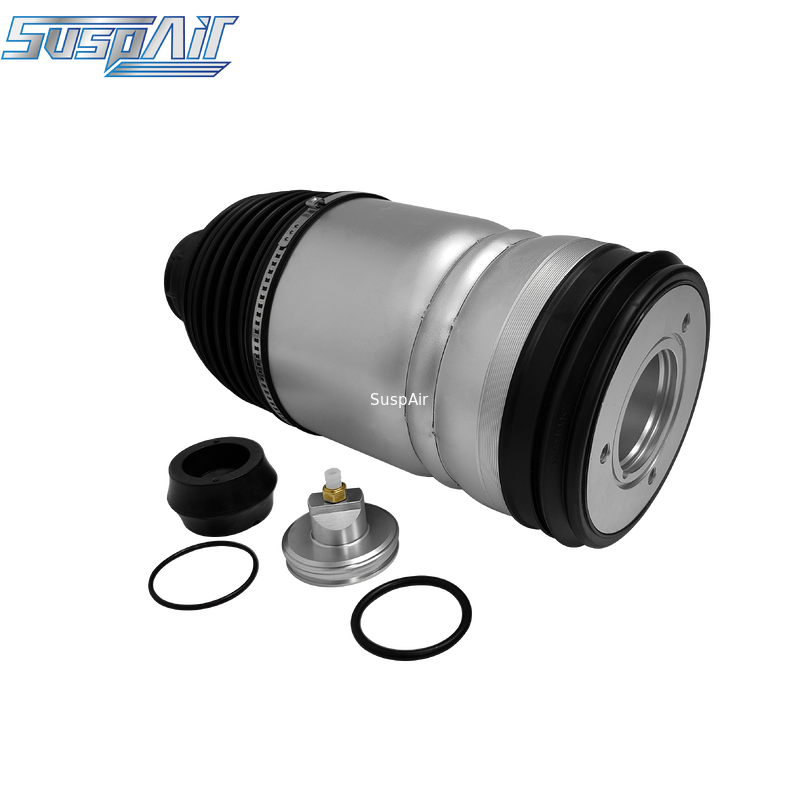

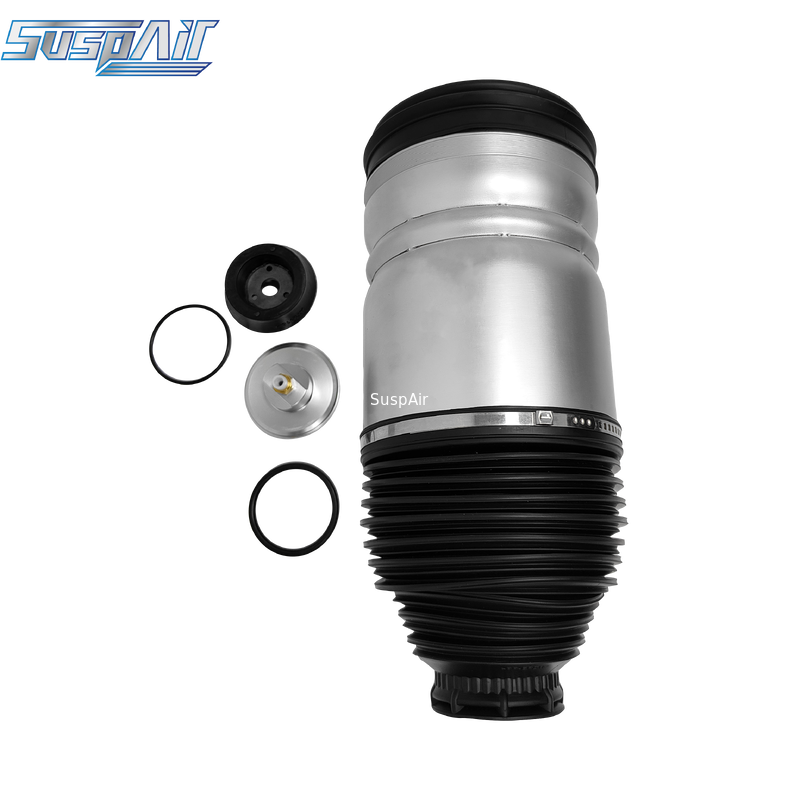

Product Name: Front Air Spring Repair Kit / Front Air Suspension Bellows Repair Kit
Installation Position: Front Axle, Front Left
Material: Multi‑layer anti‑aging reinforced rubber bellows, High‑strength engineering plastic base, Metal crimping ring, Sealing rubber gasket, Dust‑proof protective bellows
This air spring repair kit is OEM replacement repair part for Dodge Ram, mounted on front air suspension strut. It undertakes front‑end load‑bearing, vehicle height adjustment and shock‑absorbing buffering functions. Adopting multi‑layer cord fabric rubber structure, it features high‑low temperature resistance, anti‑aging and anti‑fatigue performance. Original‑equivalent mounting dimension allows direct on‑site replacement without modification. It effectively solves common faults including front bellows leakage, front‑end collapse, uneven vehicle height and abnormal driving noise. Every unit passes air‑tightness pressure test before delivery to guarantee sealing performance after installation. Compatible with original air suspension control system to restore original riding comfort.
Dodge Ram 1500 2013‑2019 (Air Suspension Version Only)
Note: This OE applies to front left repair kit. Corresponding front right OE: 4877146AH. Please confirm left‑right side before order. Only fit struts with factory air suspension.
Q1: Is this repair kit side‑specific? Can it fit vehicles with standard mechanical suspension?
A: Strictly side‑specific. 4877147AH is for front left, front right OE is 4877146AH. This repair kit only fits air suspension struts, not for standard mechanical spring suspension. Please verify original part number before purchase.
Q2: Do I need to replace the shock strut when using this repair kit for leaking bellows?
A: If strut has no oil leakage and maintains good damping, only air spring repair kit replacement is acceptable. If strut leaks oil or loses damping, full assembly replacement is recommended to extend suspension service life.
Q3: What causes air leakage after installation?
A: Confirm sealing rings and air nozzle connectors are fitted properly. Lubricate sealing rings during assembly. Meanwhile inspect air lines and distribution valve for damage and leakage.
Q4: Can I replace only one‑side repair kit for damaged air bellows?
A: Technically workable. Pair‑side replacement is highly recommended to keep consistent elasticity and load‑bearing capacity for both sides, preventing body tilt and vehicle pulling‑aside.
Q5: What is the warranty period? Which conditions are excluded from warranty?
A: Standard warranty period is 12 months. Cuts by sharp objects, collision damage, improper installation and man‑made damage are not covered by warranty.
Q6: Can it be installed in ordinary repair shops?
A: Special air‑suspension disassembly tools are required. Vehicle height calibration is mandatory after installation. Professional repair‑shop installation is suggested. Violent striking on base and rubber bellows is forbidden.
