Place of Origin:
China
Brand Name:
SuspAir
Certification:
CE
Model Number:
04877136AB 、 04877136AA
OEM OE Number: 04877136AB, 04877136AA

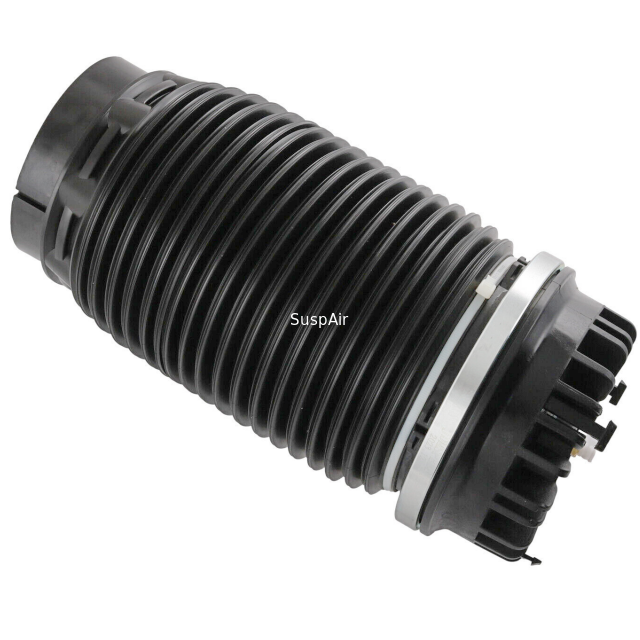

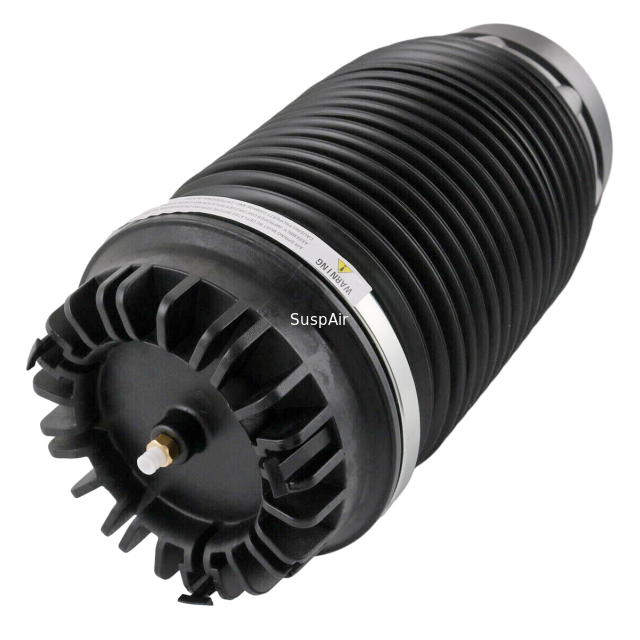

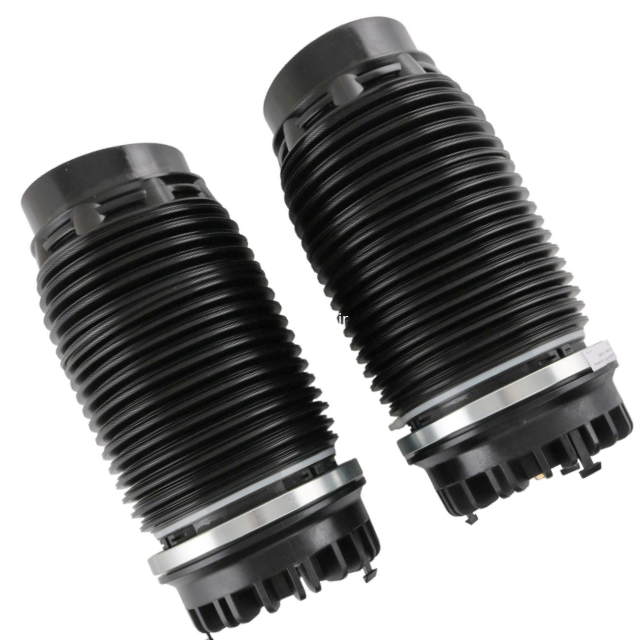

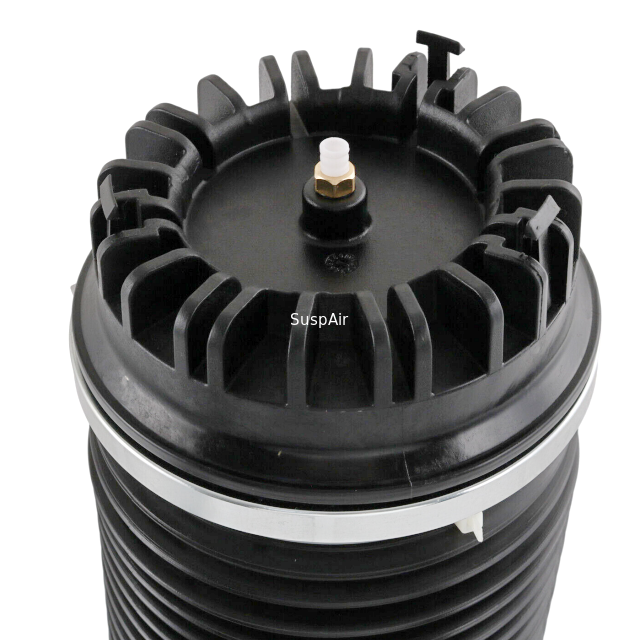

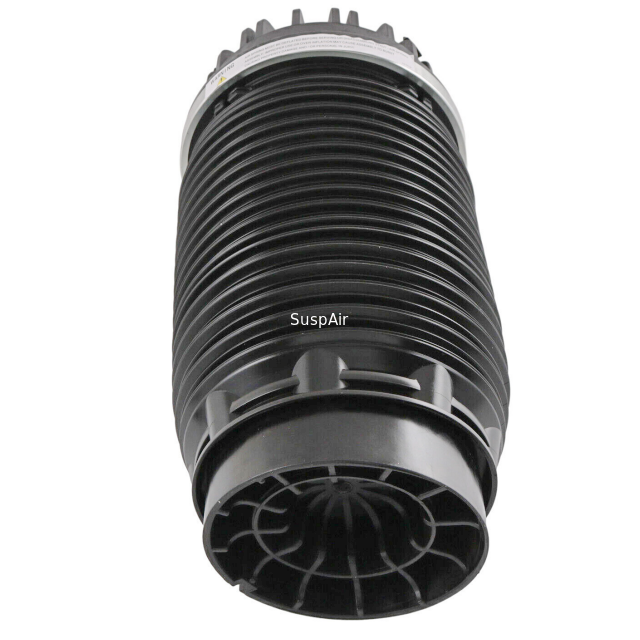

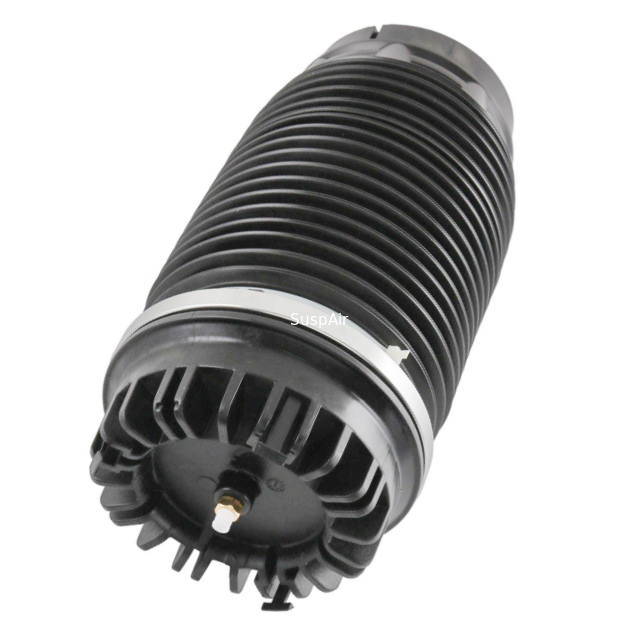

Product Name: Rear Air Spring / Rear Air Suspension Bag (Fit Left & Right Rear)
Installation Position: Rear Axle, Rear Left / Rear Right Universal
Material: Multi‑layer anti‑aging reinforced rubber air bag, High‑strength engineering plastic base, Metal crimping ring, Sealing rubber gasket, External dust‑proof protective bellows
This rear air spring is OEM replacement part for Dodge Ram, mounted on rear air suspension strut. It undertakes rear‑end load‑bearing, vehicle height adjustment and shock‑absorbing buffering functions. Adopting multi‑layer cord fabric rubber structure, it features high‑low temperature resistance, anti‑aging and anti‑fatigue performance. Original‑equivalent mounting dimension allows direct on‑site replacement without modification. It effectively solves common faults including rear air bag leakage, rear‑end collapse, uneven vehicle height and abnormal driving noise. Every unit passes air‑tightness pressure test before delivery to guarantee sealing performance after installation. Compatible with original air suspension control system to restore original riding comfort.
Dodge Ram 1500 2013‑2018 (Factory Air Suspension Only)
Dodge Ram 1500 Classic 2019‑2020 (Factory Air Suspension Only)
Note: This air spring fits both rear left and rear right, no side distinction. Only for factory air suspension struts, not compatible with mechanical spring suspension. Please verify original part number before placing order.
Q1: Does this air spring distinguish rear left and rear right? Can it fit vehicles with standard mechanical suspension?
A: Universal for rear left and rear right. Only fits factory air suspension struts, not for standard mechanical spring suspension. Please check original part number before purchase.
Q2: Do I need to replace the shock strut when replacing leaking air spring?
A: If strut has no oil leakage and maintains good damping, only air spring replacement is acceptable. If strut leaks oil or loses damping, full assembly replacement is recommended to extend suspension service life.
Q3: What causes air leakage after installation?
A: Confirm sealing rings and air nozzle connectors are fitted properly. Lubricate sealing rings during installation. Meanwhile inspect air lines and distribution valve for damage and leakage.
Q4: Can I replace only one‑side air spring for damaged air bag?
A: Technically workable. Pair‑side replacement is highly recommended to keep consistent elasticity and load‑bearing capacity on both sides and prevent vehicle body tilting.
Q5: What is the warranty period? Which conditions are excluded from warranty?
A: Standard warranty period is 12 months. Cuts by sharp objects, collision damage, improper installation and man‑made damage are not covered by warranty.
Q6: Can it be installed in ordinary repair shops?
A: Special air‑suspension disassembly tools are required. Vehicle height calibration is mandatory after installation. Professional repair‑shop installation is suggested. Violent knocking on base and rubber air bag is forbidden.
