97034305115 Front Left Air Spring For Porsche Panamera 970 2010-2014

97034305115 Front Left Air Spring For Porsche Panamera 970 2010-2014

97034305115

Front Left Air Spring

Porsche Air Spring

Place of Origin:

China

Brand Name:

SuspAir

Certification:

CE

Model Number:

97034305115

Chat Now
Request A Quote
Product Details
OEM & Private Label:
Custom Logo Printing, Neutral Packing And Exclusive Color Boxes For Cross‑border E‑commerce.
Mass Production:
Support Large‑volume Stock Orders And Full‑container Export, Custom Mold Development Based On Samples Or Drawings For New Air‑suspension Parts.
One‑stop Parts Supply:
Offer Front‑right Air Spring For 970, Complete Struts, Air Compressors, Valve Blocks, Repair Kits And Full Sealing Sets.
E‑commerce Support:
Provide Real‑product Photos, Detail Pictures And Specification Documents For Cross‑border Platforms And Domestic Auto‑parts Stores.
Highlight:

97034305115

,

Front Left Air Spring

,

Porsche Air Spring

Payment & Shipping Terms
Minimum Order Quantity
1
Price
51.99~73.99
Packaging Details
Netural package
Payment Terms
T/T
Supply Ability
100000 sets
RELATED PRODUCTS
CONTACT US
Product Description

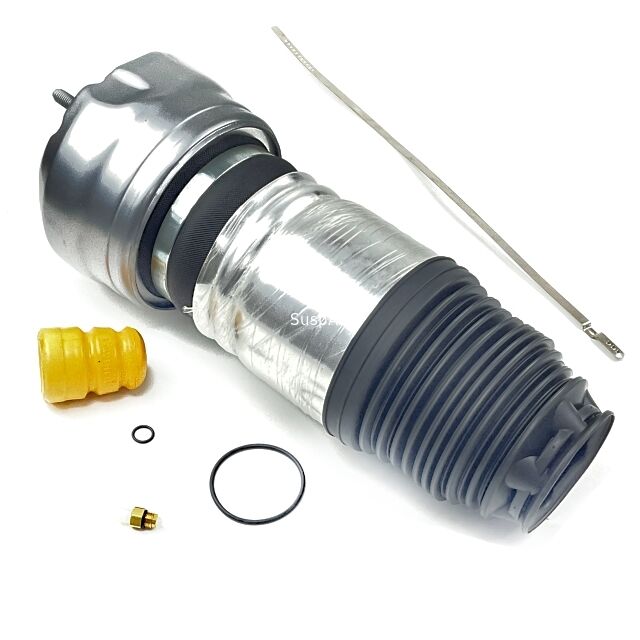

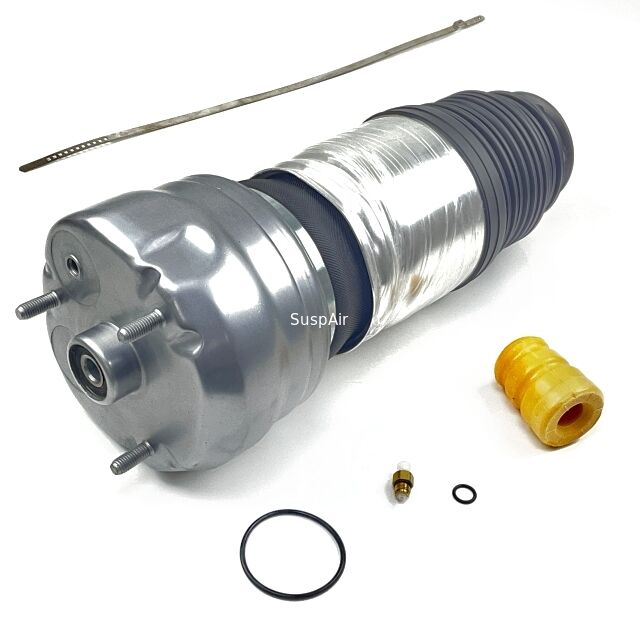

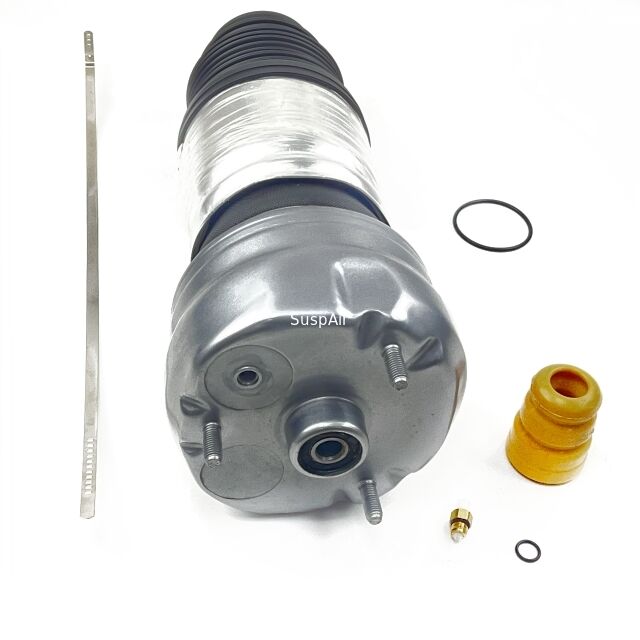

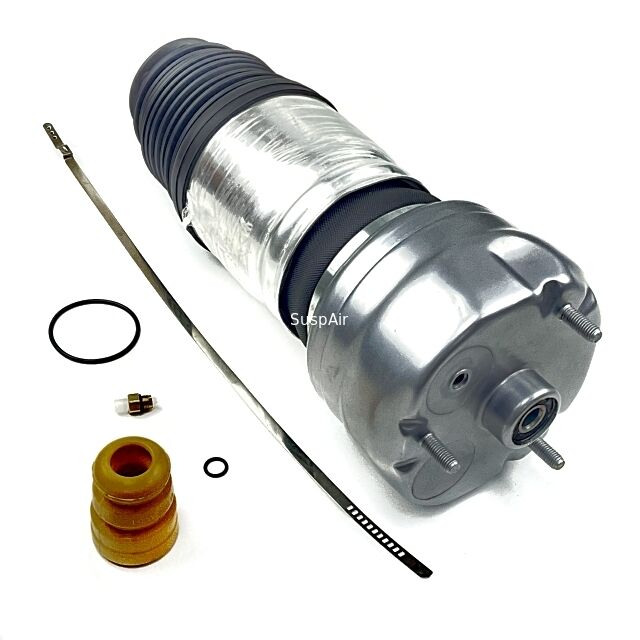

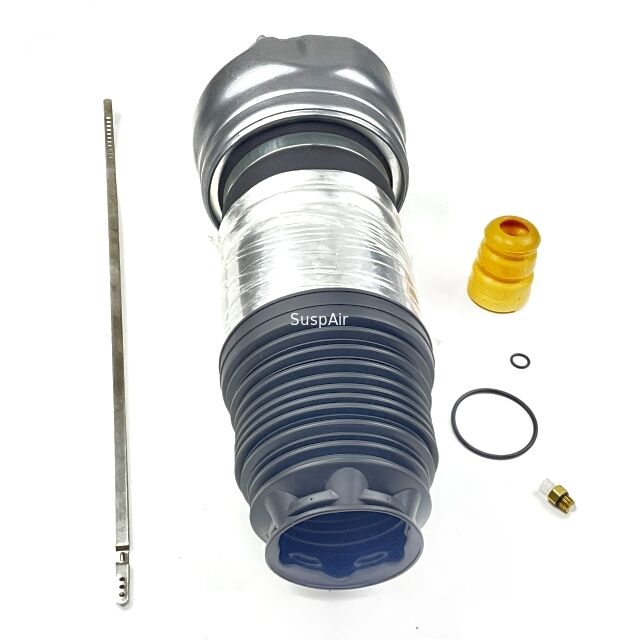

97034305115 Front Left Air Spring For Porsche Panamera 970 2010-2014
1. Product Introduction
OE Number: 97034305115
Product Name: Front Left Air Spring
Installation Position: Front Suspension, Front Left Only
Product Composition: Complete front left air spring assembly, including air bladder, multi‑layer reinforced cord fabric, upper & lower sealing base, air nozzle connector and dust‑proof structure. Shock core and solenoid valve are NOT included.
  • OEM‑grade multi‑layer composite EPDM rubber, anti‑aging, anti‑cracking, wide temperature tolerance for high‑end vehicle heavy‑duty driving
  • 1:1 OEM molding with exclusive front‑left angle and mounting position, direct bolt‑on fit without grinding or modification
  • 100% high‑pressure air tightness test before shipment, eliminate slow leakage and micro‑leakage, lower after‑sales return rate
  • Cost‑effective repair solution, reuse original serviceable strut core instead of full strut assembly

Product Description: 97034305115 is dedicated front‑left air spring for Porsche Panamera 970 chassis, designed for original front air suspension system. It replaces aged, cracked, peeling and slow‑leaking factory air springs. Adopting heavy‑duty cord‑reinforced EPDM rubber, it delivers excellent tensile strength, anti‑fatigue and ozone‑resistance performance, coping with high‑speed driving, rough roads and extreme temperature changes. It solves common factory defects of 970 series such as front end sagging and winter‑time air leakage. 1:1 original dimension, nozzle angle and base position guarantee direct replacement. Reuse original strut core and electronic components instead of expensive full strut assembly to cut repair cost. It fixes typical failures: front‑left side sagging, uneven ride height, vehicle collapse after parking, suspension warning light, bumping noise, pressure loss and loose chassis feeling. Every unit passes high‑pressure air‑tightness test and fully matches original air suspension control system.

2. Compatible Vehicles
> Note: Front‑left exclusive, not interchangeable with front right. Front right OE: 97034305215. Only for air‑suspension models, not for mechanical coil‑spring suspension.
  1. Porsche Panamera 970|2009‑2016 Air Suspension Versions
  2. Compatible trims: Panamera Base, 4S, Turbo with factory air suspension
  3. Feature: Dedicated front‑left air spring for 970 chassis, asymmetrical left‑right structure, mixing‑fit prohibited. Strut core and solenoid valve not included.
3. Interchangeable OE Numbers

97034305111, 97034305112, 97034305114, 97034305117

> Remark: Above are factory updated interchangeable part numbers with identical structure, dimension and interface. 97034305215 is front‑right part, do not mix‑fit.
4. FAQ
Q1: Can this front‑left air spring be used for front‑right side?
A: No. 97034305115 is exclusive for 970 front left. Front‑right side requires 97034305215. Different nozzle angle and base locating structure will cause mis‑assembly, persistent leakage and suspension fault codes.
Q2: When to replace only air spring and when to fit full strut assembly?
A: Replace air spring only if original strut core is oil‑tight, damping works well and no deformation. Install complete front air strut if oil leakage, damping failure or tube deformation occurs.
Q3: Does calibration need to be performed after installation?
A: Yes. Air‑tightness test, ride height calibration and fault‑code clearing are mandatory. Missing calibration will lead to abnormal front height, suspension alarm and pulling‑while‑driving issue.
Q4: Does this item include strut core and solenoid valve?
A: No. It is independent air‑spring bladder assembly only, original strut core and solenoid valve shall be reused.
Q5: Why does new air spring leak after installation?
A: Usually not product defect. Common causes: poorly‑cleaned sealing surface, reused old seals, insufficient clamp torque, aged air pipe or defective valve block. Replace all sealing accessories and follow standard installation procedure.
Q6: Is it compatible with Panamera 971 or Cayenne models?
A: No. This air spring is exclusively for older 970 chassis. Dimension, structure and mounting points are totally different for 971 and Cayenne, cannot be interchanged.
5. Custom Service
  • OEM & Private Label: Custom logo printing, neutral packing and exclusive color boxes for cross‑border e‑commerce.
  • Mass Production: Support large‑volume stock orders and full‑container export, custom mold development based on samples or drawings for new air‑suspension parts.
  • One‑stop Parts Supply: Offer front‑right air spring for 970, complete struts, air compressors, valve blocks, repair kits and full sealing sets.
  • E‑commerce Support: Provide real‑product photos, detail pictures and specification documents for cross‑border platforms and domestic auto‑parts stores.
