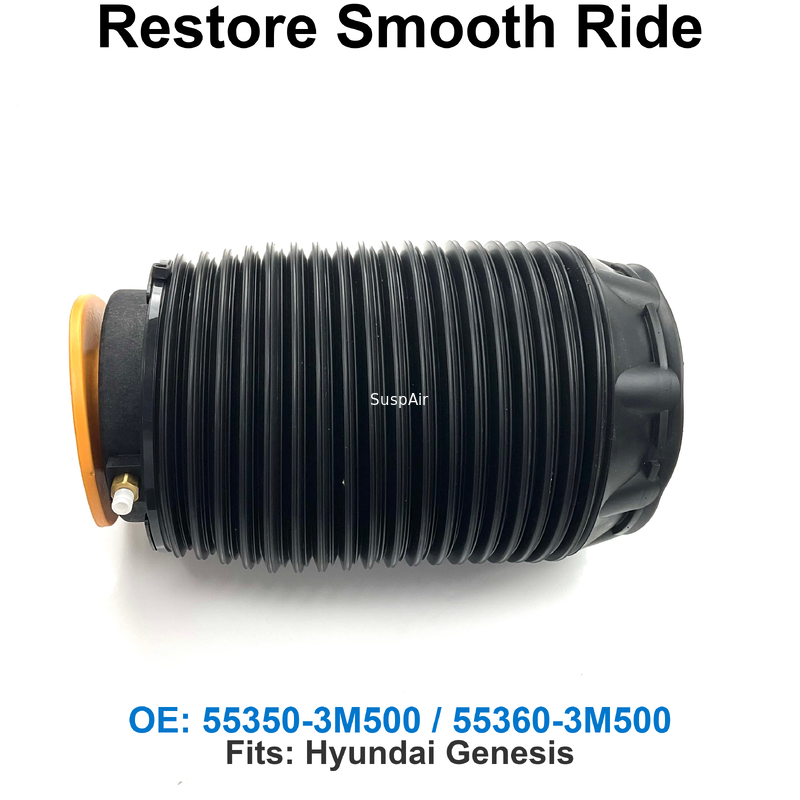

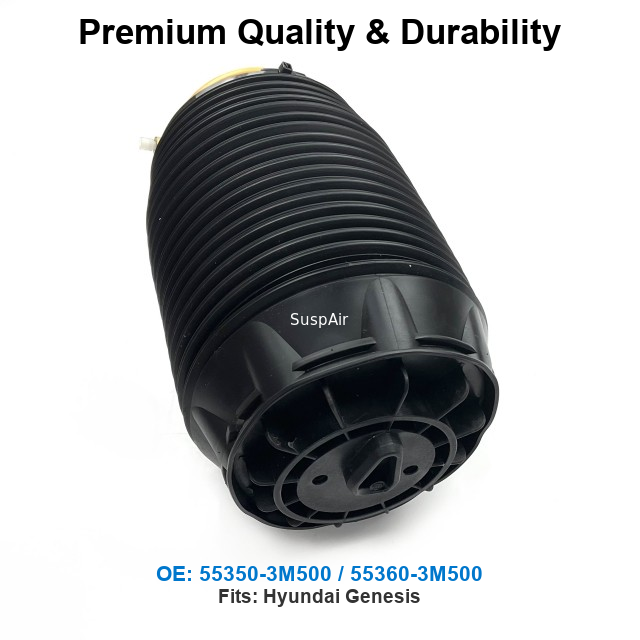

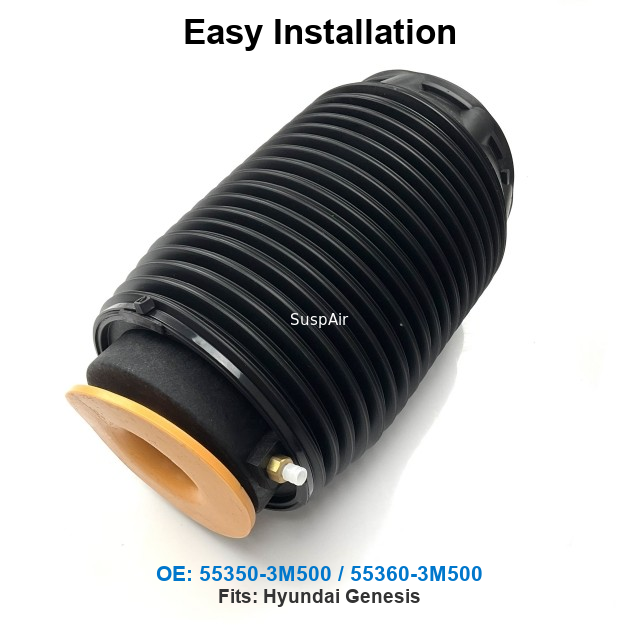

55350-3M500 55360-3M500 Rear Right Air Spring Bag for Hyundai Equus
1. Product Introduction
Main OE Number
Rear Left: 55350‑3M500; Rear Right: 55360‑3M500
Product Name
Hyundai Equus Rear Air Spring Assembly (Rear Left & Rear Right Pair)
Installation Position
Rear suspension. 55350‑3M500 for rear left side, 55360‑3M500 for rear right side. Exclusively compatible with Hyundai Equus air suspension models. Left and right are non-interchangeable, front and rear are not universal, not suitable for mechanical suspension vehicles or other car models.
Product Composition
Integrated complete rear air spring assembly, made of thickened weather-resistant explosion-proof rubber specially used for Korean luxury sedans, multi-layer high-density reinforced load-bearing cords, original-spec precision sealing ports, integrated anti-corrosion plastic base and dust-proof fold protection structure. Complete assembly without reusing old bases, supporting direct non-destructive in-situ replacement of original damaged rear air springs.
Core Selling Points
✅ Precisely matches original OE 55350‑3M500 and 55360‑3M500, the early original iterative models for Hyundai Equus rear air springs. Separate left and right design with 1:1 original factory reproduction of mounting holes, sealing caliber and inflation stroke, ensuring perfect fitting and no air suspension fault codes after installation ✅ Adopts upgraded thickened explosion-proof rubber bladder, optimized for luxury sedan rear load, urban bumpy roads, high-speed driving and alternating cold and hot seasons. Features anti-aging, anti-cracking and anti-slow-leakage performance, thoroughly solving common Equus rear air suspension problems: rear end sinking after parking, static slow air leakage, one-sided low rear body, rear suspension abnormal noise and pressure relief sagging ✅ Fully reproduces original factory parameters including maximum pressure resistance, installation height and interface size. Supports direct in-situ installation without grinding or pipeline modification, ensuring stable vehicle level and reliable operation of the air suspension system ✅ Reinforced internal load-bearing cords with excellent anti-fatigue and anti-tensile properties, effectively avoiding common defects of ordinary aftermarket parts such as short-term bulging, cracking and air leakage, greatly reducing rework rate, perfect for luxury car maintenance and used car renovation ✅ Professional assembly replacement solution for structural damages including rubber aging & cracking, bladder bulging & deformation, body tearing, continuous micro air leakage and repeated failure after repair kit maintenance, realizing one-time thorough repair of air suspension faults ✅ Every product undergoes high-pressure air tightness test, fatigue sampling test and weathering aging test before delivery to eliminate defective leakage products, perfectly restoring the original rear body support, vehicle level and air suspension damping comfort
Product Description
55350‑3M500 (Rear Left) and 55360‑3M500 (Rear Right) are early iterative original matching rear air spring models for Hyundai Equus. They are compatible with the 2011‑2016 Hyundai Equus rear air suspension system and fully interchangeable with 55350‑3M501 / 55360‑3M501. As high-frequency vulnerable parts for Korean flagship luxury sedan air suspension, they are widely used in repair shop maintenance, used car renovation, luxury car finishing and cross-border replacement procurement.
The original Hyundai Equus is equipped with adaptive rear air suspension. After long-term use, the rear air spring bears continuous pressure from rear body weight and trunk load, as well as road vibration and alternating indoor and outdoor temperatures, which easily causes rubber aging & hardening, cord fatigue, sealing port micro-leakage and base sealing failure. Typical faults include rear end sinking after parking, static slow air leakage, uneven left-right vehicle height, rear suspension bump noise, air suspension alarm and abnormal suspension height locking.
When the air spring has structural damage that cannot be completely repaired by repair kits, replacing the full assembly is a long-term and reliable maintenance solution. Manufactured in strict accordance with original factory processes, sealing and pressure parameters, this product perfectly matches the original rear air suspension control system and supports non-destructive in-situ installation without chassis cutting or pipeline modification. After installation, air tightness testing, body height calibration and fault code clearing can fully restore the original air suspension working performance and driving texture.
2. Custom Attributes (E-commerce Listing)
Fit Vehicle
Equus Flagship Luxury Sedan
Year Range
2011‑2016 All Air Suspension Versions
Installation Position
Rear suspension; 55350‑3M500 for rear left, 55360‑3M500 for rear right; left and right non-interchangeable, not universal for front air springs
Product Type
Air Spring Assembly / Rear Air Suspension Spring Assembly
Full Assembly
Yes (Integrated complete air spring assembly for direct replacement and installation)
Adaptable System
Original Adaptive Air Suspension System (Exclusive for Hyundai Equus)
Material
Korean luxury car dedicated weather-resistant explosion-proof composite rubber, high-density polyester load-bearing cord, reinforced sealing components, anti-corrosion engineering plastic base
Process Standard
1:1 OE reproduction, high-pressure air tightness detection, heavy-load fatigue test, anti-aging treatment, non-destructive direct installation
Compatibility
Only fits 2011‑2016 Hyundai Equus air suspension models; left and right separate parts, not compatible with mechanical suspension, front air springs and other Hyundai/Kia models; directly interchangeable with 55350‑3M501 and 55360‑3M501
3. Compatible Vehicles
Important Notice: This is an exclusive rear air spring for Hyundai Equus. 55350‑3M500 for rear left, 55360‑3M500 for rear right. Left and right cannot be interchanged, front and rear are not universal. Only applicable to original air suspension models, not available for mechanical spring suspension vehicles.
1. Hyundai: Equus｜2011‑2016 All Original Air Suspension Versions (Universal for 4.6L / 5.0L displacement)
Product Features: Vehicle-specific rear air spring with stable air tightness and excellent aging resistance, replaceable with later iterative OE models. Ideal for luxury car repair and renovation, professional workshop maintenance, cross-border bulk stocking and full-container foreign trade orders
4. Interchangeable OE Numbers
Main OE Number
Rear Left: 55350‑3M500; Rear Right: 55360‑3M500
Fully Interchangeable Iterative OE
Rear Left: 55350‑3M501, 55350‑3M502; Rear Right: 55360‑3M501, 55360‑3M502
Remark
The above OE numbers are original iterative universal parts with 100% consistent structural size, pressure resistance parameters and mounting base, universally applicable to 2011‑2016 Hyundai Equus rear air springs.
5. FAQ
Q1: Can 55350‑3M500 and 55360‑3M500 be interchanged left and right?
A: Not interchangeable. 55350‑3M500 corresponds to the rear left side and 55360‑3M500 corresponds to the rear right side. Different base and interface structures will cause assembly failure, incorrect vehicle height and air suspension fault codes if mixed installed.
Q2: Can it be installed on the front suspension?
A: No. The front and rear air springs of Equus have completely different stroke, base and pressure parameters, which are strictly non-universal. Wrong installation is prohibited.
Q3: Is it suitable for mechanically suspended Equus models?
A: No. This product is dedicated to air suspension systems. Mechanical suspension models have no air suspension pipelines, inflation systems or air spring mounting bases, resulting in no compatibility.
Q4: Can 55350‑3M501 and 55360‑3M501 be directly replaced with this OE?
A: Yes. They are original upgraded iterative numbers with identical structure, performance and installation dimensions, plug-and-play interchangeable.
Q5: When is full assembly replacement required?
A: Assembly replacement is recommended when the air spring has rubber cracking & hardening, bladder bulging & deformation, body tearing, continuous slow air leakage or repeated pressure leakage after repair kit maintenance, to solve faults thoroughly at one time.
Q6: Is computer programming required after replacement?
A: No complex programming required. Only air tightness testing, body height calibration and air suspension fault code clearing are needed after installation for normal operation.
Q7: Is it universal for 4.6L and 5.0L Equus?
A: Fully universal. All 2011‑2016 Equus 4.6L and 5.0L air suspension versions share the same rear air spring structural parameters.
6. Custom Service
1. OEM & Private Label Service: Support custom logo silk printing, neutral no-label export packaging and foreign trade color box customization, suitable for cross-border platforms such as Amazon, eBay, AliExpress.
2. Mass Supply Service: Support bulk spot goods and full-container foreign trade orders for 55350‑3M500 / 55360‑3M500 Hyundai Equus rear air springs. Provide full-series Equus air suspension parts including air springs, repair kits, air compressors, distribution valves and air dryers.
3. One-stop Supporting Supply: Provide complete sets of Hyundai Equus air suspension accessories to realize one-stop procurement and shipment for Korean luxury air suspension parts.
4. E-commerce Material Support: Provide real product photos, detail images, parameter tables and installation reference materials for direct listing on domestic and cross-border auto parts stores.
