Place of Origin:
China
Brand Name:
SuspAir
Certification:
ISO9001/CE
Model Number:
Mercedes‑Benz W166 ML‑Class GLE‑Class X166 GL‑Class GLS‑Class 2011‑2018, Without ADS

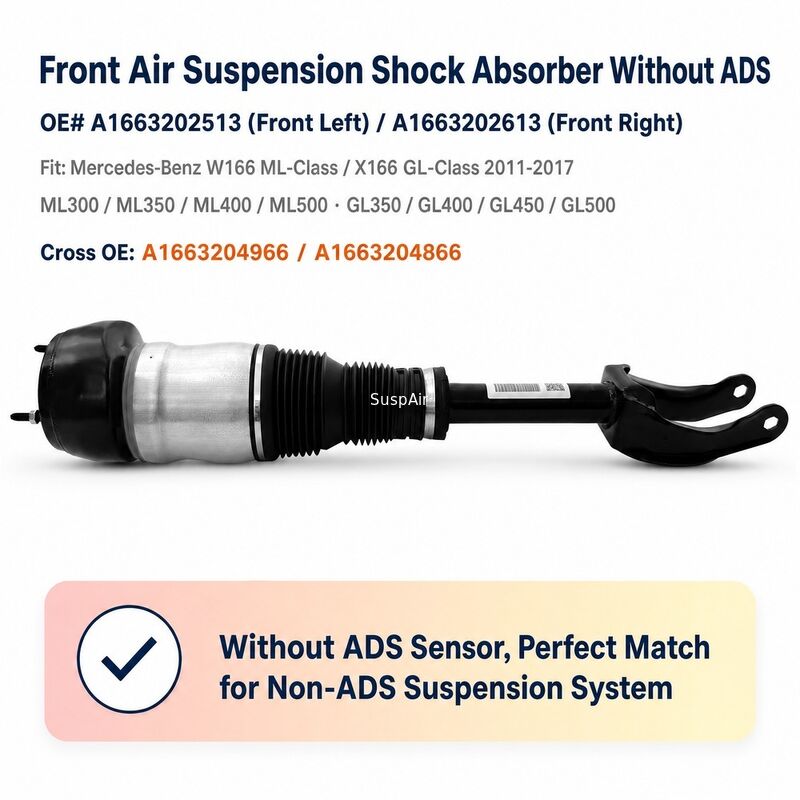

A1663202513 Air Suspension Strut Assembly, Front Left & Right For Mercedes‑Benz W166 ML‑Class GLE‑Class X166 GL‑Class GLS‑Class 2011‑2018, Without ADS, OEM Replacement Air Shock Absorber
Brand‑new side‑specific front air strut assembly, 1:1 OEM replication for non‑ADS W166/X166 models. Strictly tested for air tightness and fatigue resistance, provides stable ride comfort, in‑stock with fast delivery and 18‑month warranty.
Product Specification Sheet (20 Parameters)
| Parameter | Value |
|---|---|
| OE Number | Front Left: A1663202513, A1663204966, A1663207313
|
| Interchange OE | Front Left: A166320496680, A166320731380
|
| Vehicle Series | Mercedes‑Benz W166 ML‑Class / GLE‑Class, X166 GL‑Class / GLS‑Class |
| Model Year | 2011‑2018 |
| Vehicle Models | ML250 ML350 ML400 ML500, GL350 GL400 GL450 GL500, GLE350 GLE400, GLS350 GLS450 (Without ADS) |
| Mounting Position | Front Axle Left / Front Axle Right(Side‑specific) |
| ADS Damping System | Without ADS electronic damping sensor |
| Shock Absorber Type | Air Suspension Strut Assembly (Airmatic) |
| Spring Type | Integrated Air Spring |
| Installation Method | Bolt‑on, direct replacement of OEM part |
| Material | Imported natural rubber air bladder + high‑strength aluminum alloy cylinder + CNC machined metal end fittings |
| Warranty | 18 Months |
| Certification | CE Certified / ISO9001 Quality Management System Certified |
| Origin | China |
| Delivery Time | In stock, 1‑7 working days shipping |
| Drive Type | Both RWD and 4MATIC compatible |
| Left/Right Universal | No, side‑specific, cannot cross‑install |
| Test Standard | 24h air tightness test (pressure drop ≤0.02MPa) + 3 million cycles fatigue test |
| Packaging | Neutral export carton, individually packed, custom brand packaging available |
| Remarks | W166/X166 front air suspension strut assembly, without ADS sensor. Strictly side‑specific, left unit cannot fit right side and vice versa. Not fit vehicles equipped with ADS damping system. |
Top 10 Core Selling Points
| No. | Selling Points |
|---|---|
| 1 | Standard Airmatic air suspension structure, stable damping performance, comfortable driving experience |

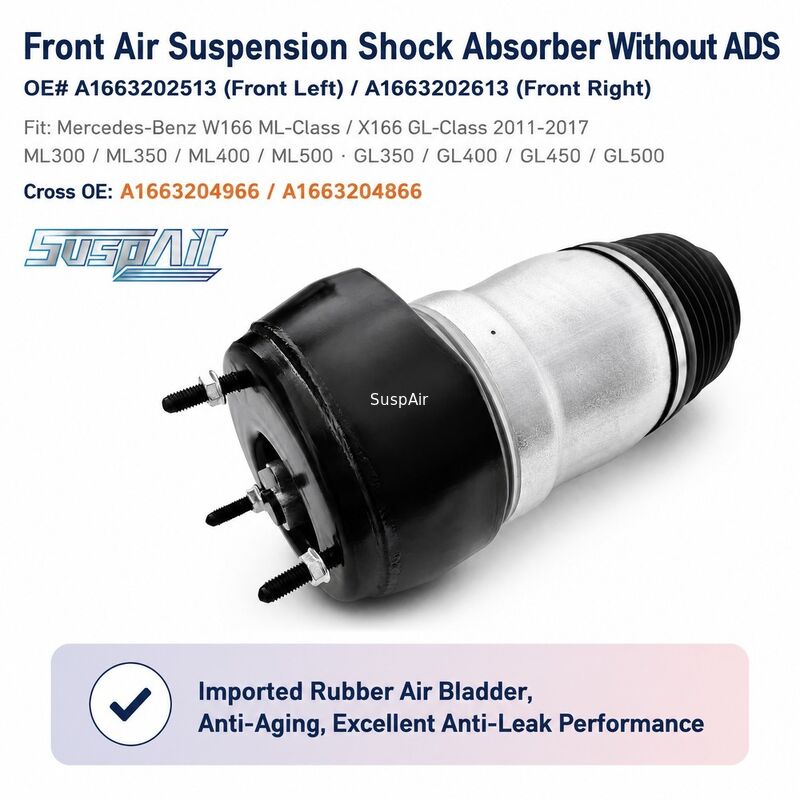

| 2 | Imported rubber air bladder, anti‑aging property, excellent air‑leak resistance performance |

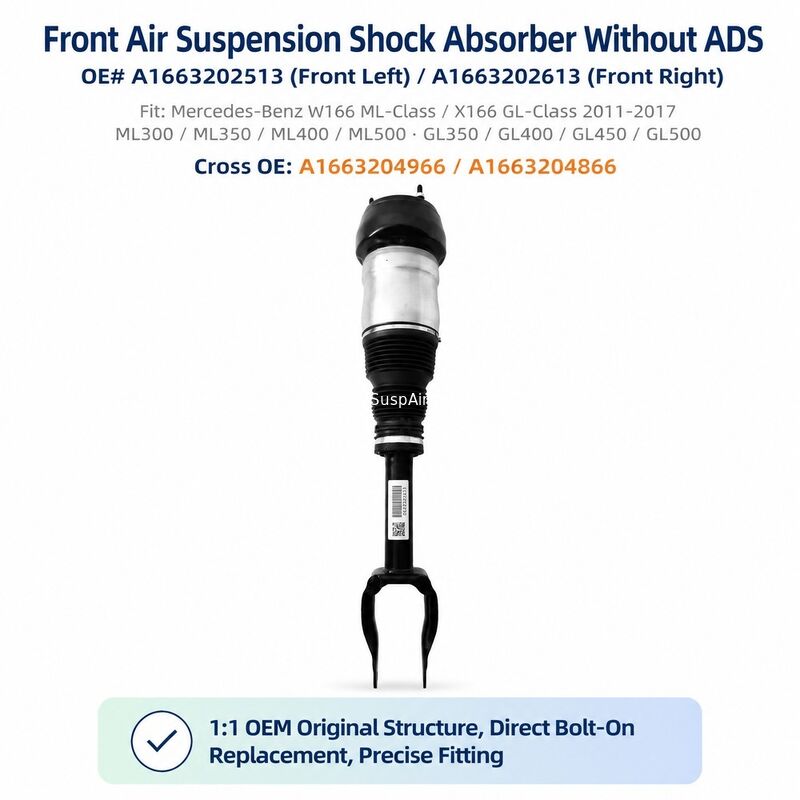

| 3 | 1:1 OEM original structure, direct bolt‑on replacement, precise fitting |
| 4 | 24‑hour air tightness test (≤0.02MPa) and 3‑million‑cycle fatigue test before shipment |
| 5 | CNC precision machining plus anti‑corrosion coating for long‑term outdoor durability |
| 6 | Restore original vehicle height, eliminate abnormal chassis noise, improve driving comfort |
| 7 | Optimized heat dissipation structure, effectively resist thermal attenuation under continuous load |
| 8 | Strict side‑specific design, matches original suspension geometry for left or right side separately |
| 9 | Large stock available, 1‑7 working days fast delivery |
| 10 | 18‑months warranty, CE & ISO9001 certification support |
About Us
FAQ:
Q: Which car models does this front air suspension strut assembly fit?
A: It is specially designed for Mercedes‑Benz W166 ML‑Class/GLE‑Class and X166 GL‑Class/GLS‑Class 2011‑2018, only for vehicles without ADS adaptive damping system, fits both RWD and 4MATIC versions.
Q: Can I install left‑side unit on the right front axle?
A: No, this is strictly side‑specific product. Left air strut only fits front left, right air strut only fits front right. Cross‑installation will cause assembly mismatch, abnormal noise, air leakage and suspension fault code. Please confirm correct side before ordering.
Q: Does this air strut come with ADS sensor?
A: No, this version is without ADS electronic damping sensor. Do not use on vehicles with factory ADS system, otherwise dashboard error code will occur.
Q: What are the common symptoms of failed front air suspension strut?
A: Common symptoms include front end sagging, uneven left‑right ride height, frequent air compressor startup, knocking noise over bumps, air leakage from air spring, poor driving comfort. Timely replacement is recommended when these problems appear.
Q: Do I need calibration after replacement?
A: Yes, professional diagnostic instrument is required to perform air suspension ride‑height calibration after installation, to ensure normal Airmatic system operation.
Q: Can I only replace the air bladder instead of full strut assembly?
A: Theoretically feasible, but we recommend replacing the complete air suspension strut assembly, to guarantee damping performance, sealing reliability and service life.
Q: What quality tests have been performed?
A: Every finished unit undergoes 24‑hour air tightness test (pressure drop ≤0.02MPa) and over 3‑million‑cycle fatigue test before shipment, effectively preventing early‑stage air leakage.
Q: Is it necessary to replace front left and right struts at the same time?
A: You can replace only the damaged side, but simultaneous replacement of both front sides is recommended to achieve symmetric suspension performance and stable driving. Please order left and right separately.
Q: How long is the warranty period?
A: We offer an 18‑month extended warranty. Free replacement is available for genuine product quality issues. Damage caused by improper installation, collision or man‑made destruction is not covered under warranty.
Q: Is this product CE and ISO9001 certified?
A: Yes, this product is CE certified and manufactured under an ISO9001 quality management system, meeting international automotive aftermarket quality standards.
