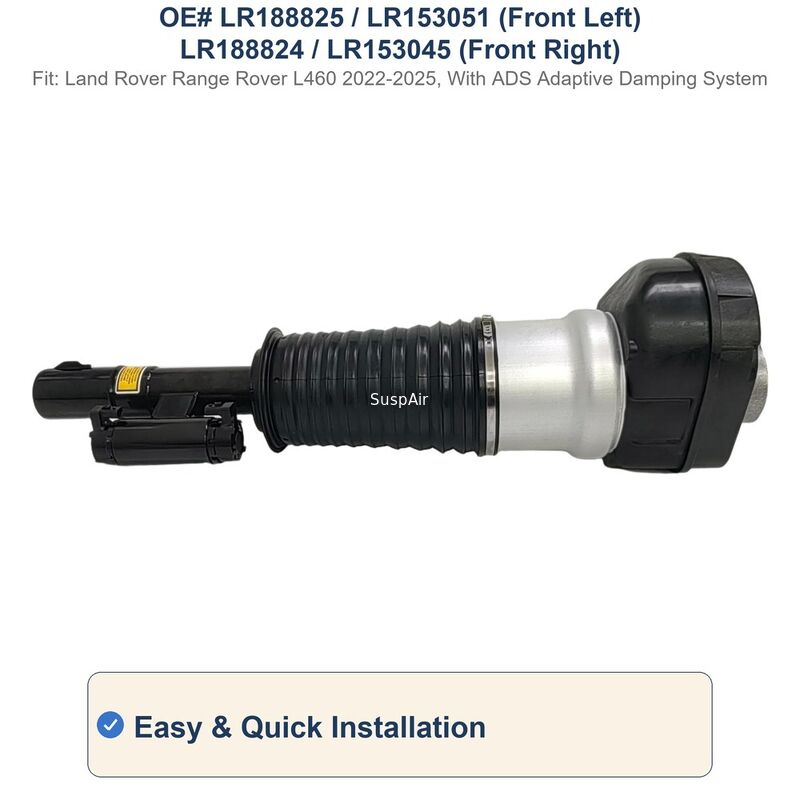

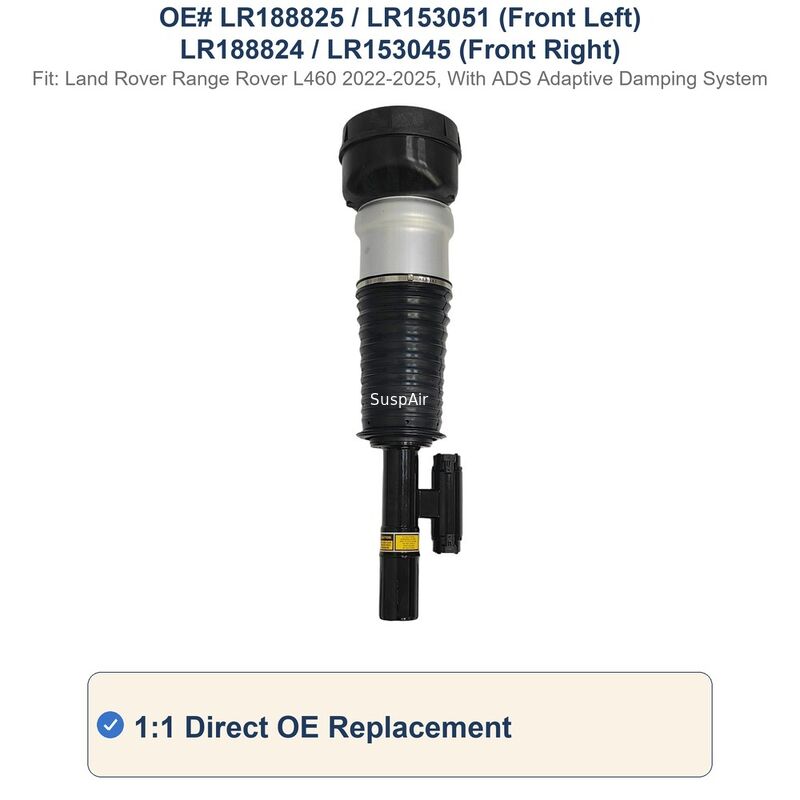

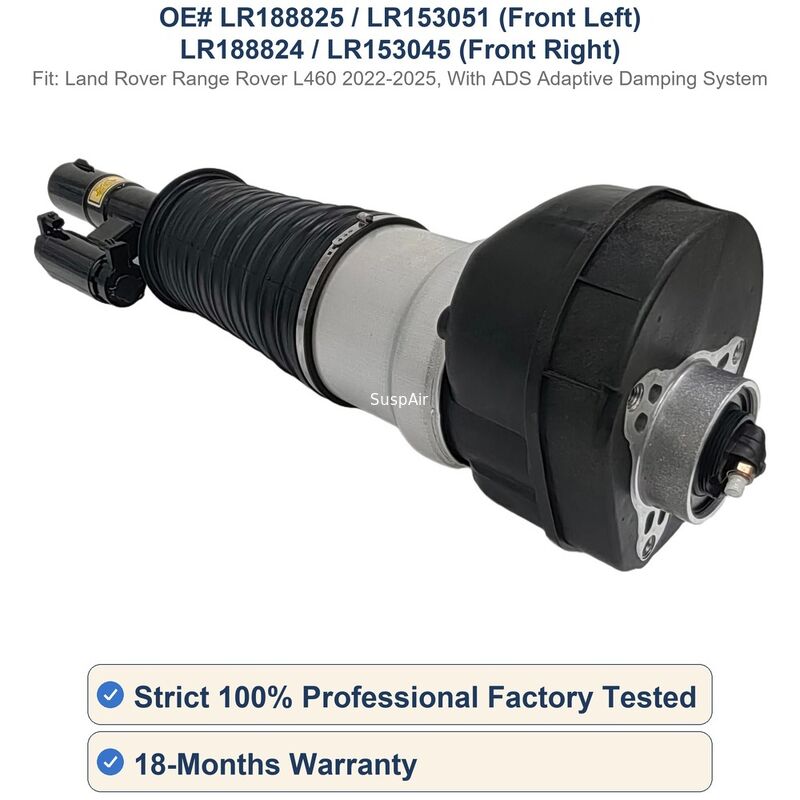

2022-2026 Range Rover L460 Front Air Suspension Shock With ADS LR188824 LR153045

Q1: Which OE numbers are for which side? Front Left: LR188825, LR153051. Front Right: LR188824, LR153045. Don't mix left with right.

Q2: Which vehicles does this fit? Range Rover (L460, 2022+) with air suspension. Confirm model, year and equipment by VIN.

Q3: Is this the with-ADS (electric) version? What is the difference from the L461 unit? Yes — this is the electric (With ADS) version with a SINGLE-INDUCTOR design: the damper carries the electronic damping connector, but the top mount has NO additional solenoid valve. The L461 (Range Rover Sport 2022+) unit is DUAL-INDUCTOR: it has an extra solenoid valve on the top mount that interacts with the damper's inductor. These two units are NOT interchangeable — confirm your chassis (L460 vs L461) and the original unit by VIN.

Q4: Why are there two numbers per side? Each side has a launch-era number (LR153051 left / LR153045 right) and a newer revision (LR188825 left / LR188824 right). They are most likely revision / supersession numbers of the same unit (inference — LR188xxx has no public record yet). Match the exact number on your original unit by VIN.

Q5: Is this the complete strut assembly? Yes — air spring bellows and shock absorber integrated into one unit, air fitting ready to connect. Direct replacement of the original strut.

Q6: Do I need to replace both front sides at the same time? Same-axle pair replacement is strongly recommended. An old unit on the other side causes uneven ride height and leveling behavior.

Q7: What should I pay attention to during installation? Release air suspension pressure per the workshop manual; disconnect the electrical connector cleanly and protect connector + air fitting from dirt; mount and reconnect; start the car, run the ride-height reset / system initialization; check left/right height and leaks before a road test.

Q8: Warranty policy and shipping damage? 18-month warranty under normal use. For shipping damage, inspect within 48 hours of receipt and send photos/video — the seller arranges a replacement.

Q9: Service life and maintenance? Depends on road conditions and climate. Keep bellows clean and check for cracks during routine service; if the bellows leak, replace the complete unit.

Q10: Are aftermarket alternatives available for these numbers? As of 2026-08-25, public aftermarket catalogs (spareto / autodoc) do not yet list equivalents for LR153051 / LR153045 / LR188825 / LR188824 — these are recent OE numbers. The customer's own production is currently the practical source.
