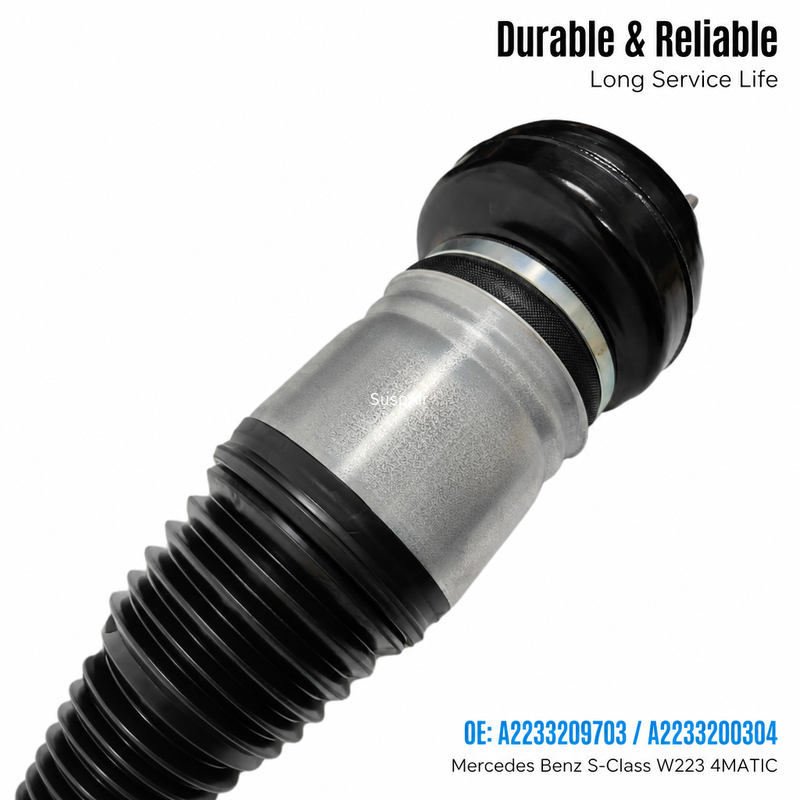

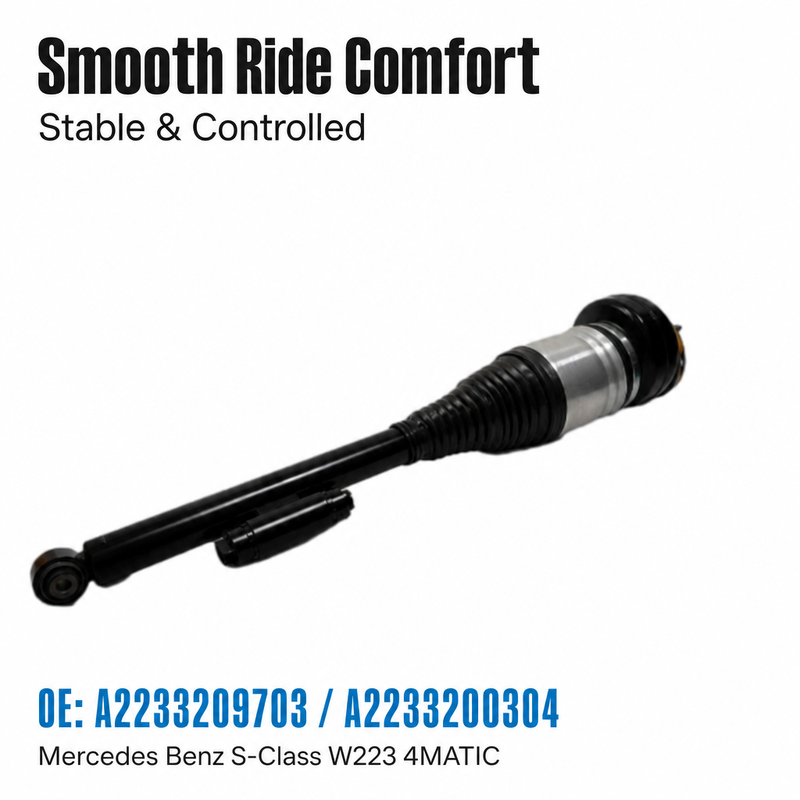

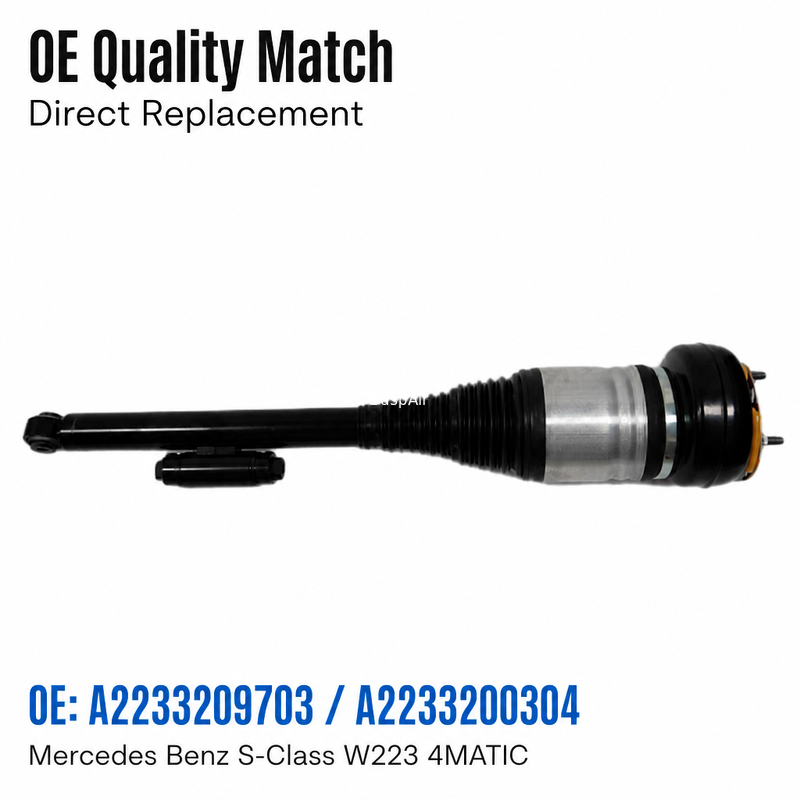

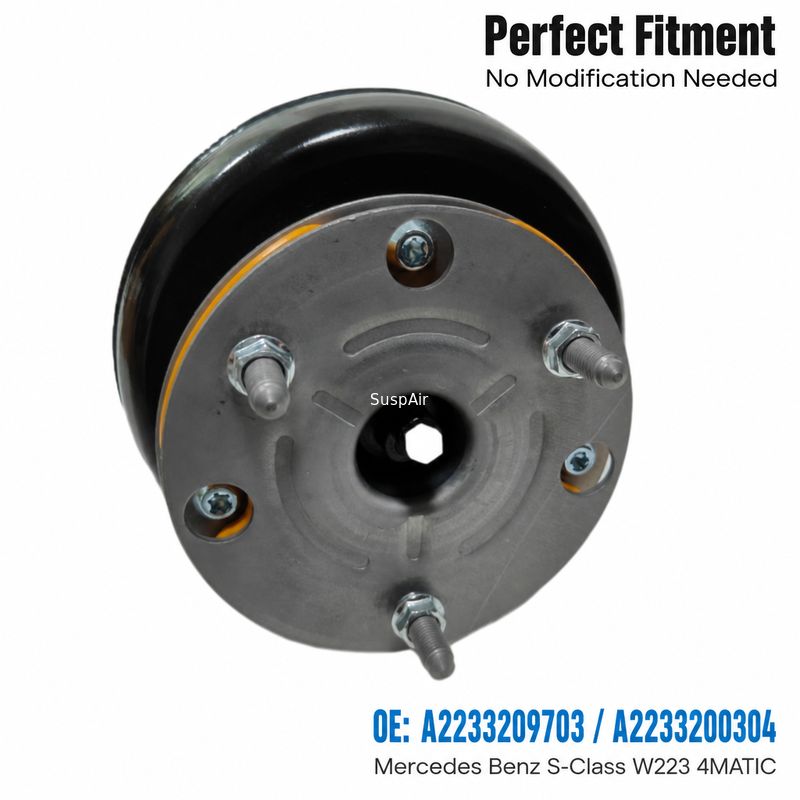

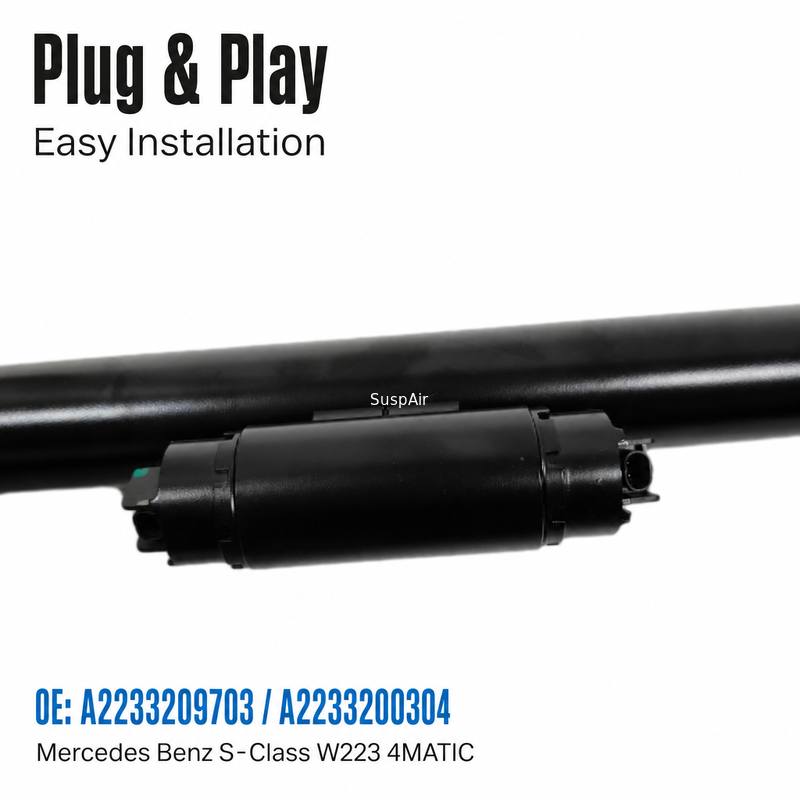

A2233209703 & A2233200304 Rear Left Air Suspension Shock Strut for Mercedes Benz S-Class W223
1. Product Introduction
Original OE Number: A2233209703, A2233200304. These two OE numbers are iteratively interchangeable.
Product Name: Mercedes-Benz W223 S-Class Rear Left Air Shock Absorber Assembly with ADS Adaptive Electronic Control
Mounting Position: Rear axle left side (Exclusive for rear left, not interchangeable for rear right; compatible with both 2MATIC RWD and 4MATIC AWD, for Airmatic air suspension with ADS)
Product Description
A2233209703 (A2233200304) is the OEM high-spec rear-left dedicated ADS electronic air shock absorber assembly for Mercedes new W223 S-Class. It fits W223 RWD and AWD models equipped with factory Airmatic air suspension and ADS adaptive damping. This is an integrated complete assembly, including explosion-proof high-pressure air spring, high-precision hydraulic damper cylinder and OEM-style ADS adaptive solenoid valve. All accessories are included for direct bolt-on replacement.
Mercedes W223 S-Class has heavy curb weight and high load on rear axle. Under long-time full load, highway driving and aging caused by temperature fluctuation, common failures of rear air suspension may occur: rubber aging, hardening and cracking of rear left air spring leading to slow air leakage and rear left sag, uneven vehicle height between left and right; attenuation of internal hydraulic oil and aging of high-pressure sealing oil seal cause damping decay, rear bouncing over bumps, loose chassis and deteriorated high-speed stability; carbon deposit and sticking or signal drift of ADS solenoid valve trigger air suspension warning light, failure of adaptive damping adjustment and frequent start-stop of air compressor. Without timely replacement, it will continuously damage distribution valve, height sensor, air pump and other matched parts, resulting in cascading damage of the whole air suspension system and greatly increasing maintenance cost for luxury vehicles.
This rear left air shock absorber is 1:1 moulded strictly according to Mercedes W223 OEM OE data, with specially calibrated damping for rear axle load. It adopts thickened multi-layer imported explosion-proof rubber air spring with wide temperature resistance, multiple high-pressure sealing structure, anti-rust precision piston rod, long-lasting anti-fading hydraulic oil and high-sensitivity ADS electronic components to improve aging resistance, crack resistance, air leakage resistance and fatigue resistance. It thoroughly solves common defects including rear left air leakage, rear sag, weak damping, loose chassis and electronic signal error. This universal ADS high-spec assembly for W223 rear left fits both RWD and AWD chassis, paired with rear right OE A2233209803. Direct bolt-on installation without chassis modification. After installation, air tightness inspection, vehicle height calibration and ADS adaptive matching calibration are required to fully restore the original flagship chassis comfort, stability and all intelligent air suspension functions with low return rate. Suitable for high-end auto repair, bulk wholesale and cross-border export.
Core Advantages
- ✅ Exclusive for rear left: W223 rear axle left and right have different structure, pipeline and interface, precisely matching OEM rear left parameters
- ✅ Compatible with 2MATIC RWD & 4MATIC AWD, reducing SKU stocking pressure
- ✅ OEM-style ADS electronic assembly with stable and accurate signal, no fault code, fully retaining original adaptive damping function
- ✅ Upgraded thickened explosion-proof air spring, wide temperature resistance, anti-aging and anti-cracking, completely solving chronic air leakage and rear sag of rear axle
- ✅ Brand-new complete assembly shipped, full accessories included, direct bolt-on installation, simple calibration, ultra-low failure rate for luxury vehicle after-sales
- ✅ High-frequency replacement part for W223 S-Class aftermarket, stable market demand and 100% fitting accuracy
2. Custom Attributes for E-commerce Listing
Brand Fit: Mercedes‑Benz
Chassis Code: W223 (New S-Class)
Vehicle Model: Mercedes S-Class W223 high-spec version RWD/AWD
Version Fit: Factory Airmatic air suspension, with ADS adaptive damping, compatible with 2MATIC / 4MATIC
Not Compatible: Rear right position, low-spec air suspension without ADS, ordinary mechanical hydraulic shock absorber, old W222 chassis
Year Range: 2020‑Present W223 S-Class models with factory ADS air suspension (RWD & AWD)
Mounting Position: Rear axle left side (rear left only, cannot replace rear right)
Main OE Number: A2233209703, A2233200304 (iteratively interchangeable)
Product Type: Rear Left ADS Air Shock Absorber Assembly, W223 Airmatic Electronic Air Suspension Strut
Assembly Status: Brand-new complete assembly (including explosion-proof air spring, rear axle damper cylinder, ADS solenoid valve, full sealing kit, upper & lower mounting rubber mounts)
Material: High-strength multi-layer aging-resistant imported high-pressure rubber air spring, anti-rust precision piston rod, high-pressure alloy cylinder, multi-layer composite high-pressure sealing oil seal, long-lasting anti-fade hydraulic damping oil, high-sensitivity ADS electronic assembly
Manufacturing Standard: Replicated per W223 OEM OE parameters, high & low temperature pressure test, rear axle heavy-load fatigue test, 100% air tightness pressure holding test, ADS electronic signal precise calibration
Fitting Remark: Exclusive for W223 new S-Class rear left, only for high-spec models with ADS air suspension. Fits both RWD and AWD. Rear right and old W222 are completely incompatible. Matched with rear right OE A2233209803 as rear axle pair set.
Sales Mode: Single retail, rear axle left-right pair set, bulk wholesale, full container export order
Inspection Standard: 100% high-pressure air tightness leakage test, damping coefficient calibration, high & low temperature durability test, heavy load fatigue test, full electronic signal inspection, dimension & appearance inspection
Package: Neutral heavy carton, custom color box, unbranded export package, OEM logo labeling available
Working Condition: Suitable for W223 S-Class business commute, highway cruise, full load travel and complex road conditions, fully compatible with Airmatic+ADS full intelligent electronic control logic
Installation Tip: No chassis modification or coding required. Air tightness inspection, vehicle height calibration and ADS adaptive matching calibration are mandatory after installation.
Recommended Purchase: Replace in pair with rear right A2233209803 to restore symmetrical rear posture and consistent damping support, fully recover OEM flagship chassis texture.
3. Compatible Vehicle List
Compatibility Note: A2233209703 / A2233200304 is exclusive for Mercedes W223 new S-Class rear left ADS electronic air shock absorber. It fits both 2MATIC RWD and 4MATIC AWD. Only fits 2020+ W223 high-spec models with factory ADS adaptive air suspension. Not compatible with rear right, low-spec without ADS or old W222 chassis. Works with OE A2233209803 as rear left & right pair set.
Precise Compatible Models
- Mercedes S-Class W223 Sedan (2020–Present): S350, S400, S450, S500, S580e, high-spec versions with ADS air suspension for both 2MATIC RWD and 4MATIC AWD
4. Interchangeable OE Numbers
Main OE Number: A2233209703, A2233200304 (two parts are iteratively interchangeable by OEM)
Interchangeable OE Reference: No other cross-referenced replacement OE numbers
Interchange Remark: A2233209703 and A2233200304 are OEM upgraded iterative parts. Mounting hole, damping stroke, rear axle load parameter and ADS electronic logic fully match OEM standard, bolt-on fit without modification or coding.
5. FAQ
Q1: Can OE A2233209703 be installed on rear right side?
A: No. This unit is exclusively for W223 rear left. Rear axle left and right shock absorber have different structure, air spring pipeline, solenoid plug and damping parameter, not interchangeable. Rear right must use dedicated OE A2233209803. Mixed installation is forbidden.
Q2: Can this shock absorber fit 4MATIC AWD W223 S-Class?
A: Yes. This rear left ADS air shock absorber works for both 2MATIC RWD and 4MATIC AWD. Mounting holes and electronic connectors are fully identical.
Q3: Does this shock absorber come with ADS adaptive function?
A: It is equipped with OEM ADS adaptive solenoid valve, fully supporting original automatic hardness adjustment. It is high-spec air suspension assembly for W223, cannot be mixed with ordinary non-ADS mechanical strut.
Q4: Is coding required after replacement?
A: No coding required. After installation, just perform air tightness inspection, vehicle height calibration and ADS adaptive matching calibration and clear fault codes for normal operation.
Q5: What symptoms indicate replacement of this rear left shock absorber?
A: Rear left sag, vehicle lower on left rear, overnight rear collapse, loose rear response over bumps, chassis wobble at high speed, insufficient cornering support, frequent air compressor activation, air suspension / ADS warning light, rear chassis abnormal noise and obvious comfort drop for rear passengers.
Q6: Only rear left one is broken, can I replace only one piece?
A: Not recommended. W223 flagship chassis requires highly consistent damping for rear axle left and right. New and old units differ in rebound, support and pressure retention. Single side replacement may cause body tilt, pulling and uneven tire wear. Recommended to replace rear axle in pairs (matched with A2233209803).
Q7: Is it compatible with old W222 S-Class?
A: Not compatible at all. W223 new chassis structure, air suspension system, electronic connector and mounting holes are completely different from W222, cannot be fitted.
6. Custom Service
- OEM Labeling: Support logo silk printing, neutral unbranded export packaging and custom color box for cross-border platforms including Amazon, eBay, AliExpress.
- Bulk Supply: A2233209703 W223 S-Class Rear Left ADS air shock absorber in stock continuously. Available for single retail, rear axle left-right pair set, bulk wholesale and full container export. Stable stock, fast lead time and competitive price for premium auto parts.
- Complete W223 Air Suspension Package: One-stop supply of full W223 S-Class air suspension spare parts, including front & rear ADS air struts, air compressors, distribution valves, height sensors and repair kits for complete vehicle maintenance order.
- E-commerce Material Support: Free product photos, close-up detail pictures, OE matching table, W223 fitment list and installation calibration documents for store listing, short video promotion and detail page decoration.
