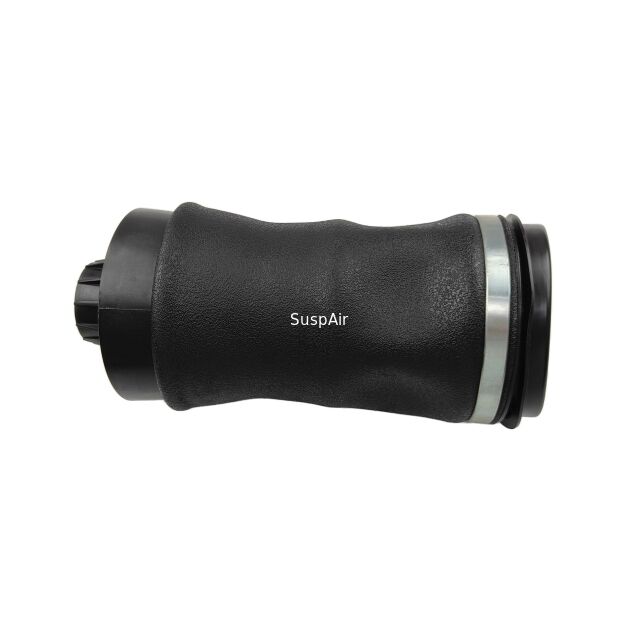

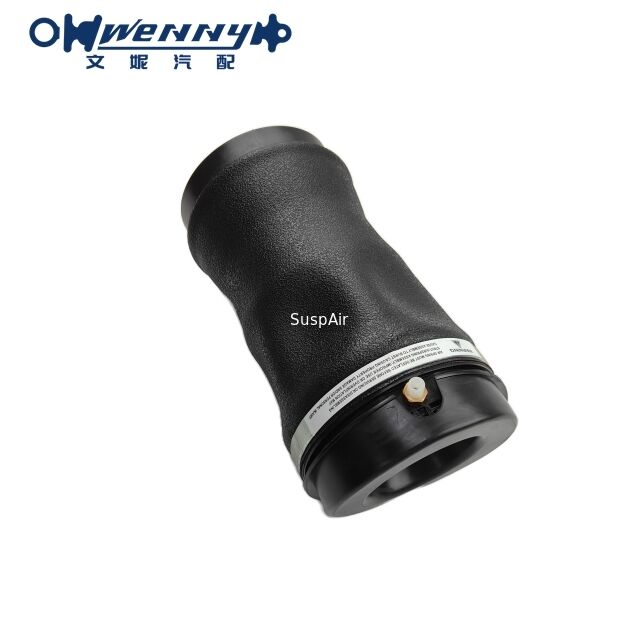

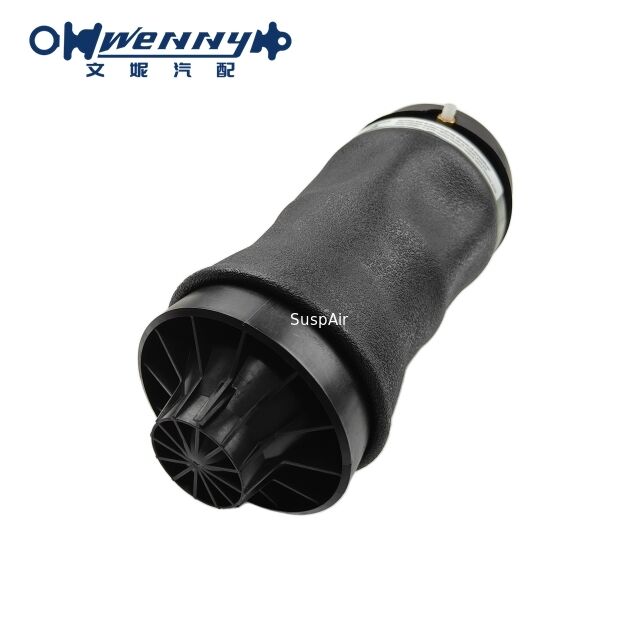

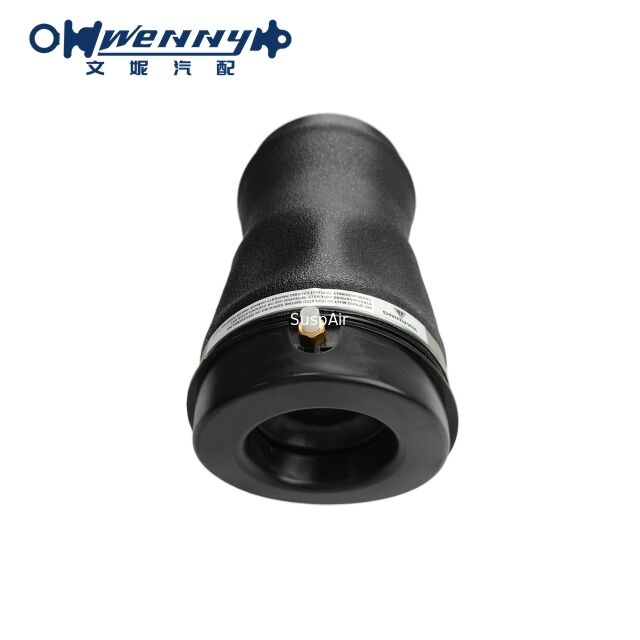

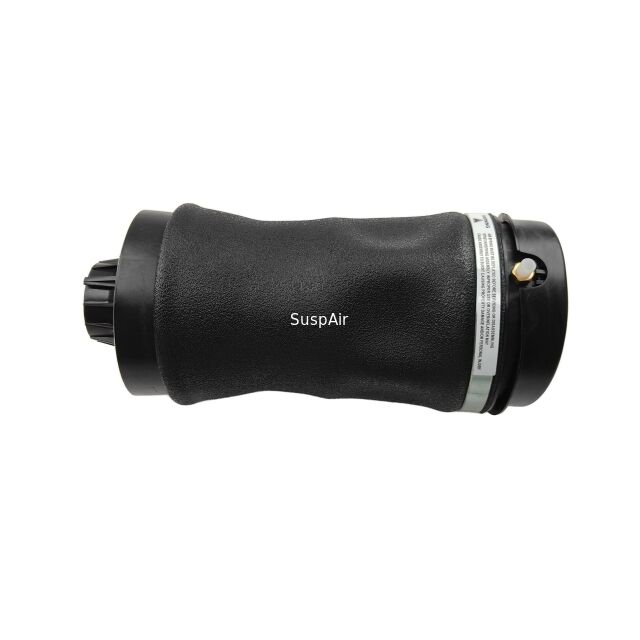

68029912AE Rear Air Bag For Jeep Grand Cherokee WK2 2011‑2016

OE: 68029912AE

Product Name: Rear Air Spring Bag

Important Note: Complete air spring bag assembly, without shock absorber damper core. Universal for rear left and rear right side, non‑distinction between left and right.

OE Number: 68029912AE

Product Type: Air Spring Bag Assembly (complete air bag, excluding damper core)

Mounting Position: Rear Suspension‑ Left / Right Side (Universal for Left & Right)

Structure: Multi‑layer reinforced anti‑aging rubber air bag body with integrated upper and lower connecting bases, complete sealing structure. Designed for vehicles with intact original damper core. Directly replace the damaged rear air spring bag and reuse original damper core, no need to replace complete air strut assembly. Perfectly compatible with factory Quadra‑Lift air suspension system to restore vehicle height adjustment and auto‑leveling function.

• Adopts high weather‑resistant composite rubber material, ozone‑proof and anti‑aging. Tolerate wide temperature range, rain, snow and sand road conditions, reduce risks of bag folding crack and slow air leakage, ideal for SUV rough road usage.
• 1:1 OEM molding, identical dimension, stroke, interface and mounting base with original parts. No modification required, direct fit for original intact rear damper core.
• Every unit passes high‑pressure air tightness & pressure holding test before delivery, avoid factory leakage, stable replacement performance.
• Much lower repair cost than full air strut assembly. If original damper is in good condition, only replace air spring bag to fix suspension failure and cut customer maintenance expense.
• Complete air bag assembly with built‑in base sealing structure, simple installation, no extra spare parts required, ready for workshop direct mounting.

• Rear body sinks on one or both sides after vehicle parking
• Air suspension malfunction warning light illuminates on dashboard
• Air compressor frequent cycling, continuous running, overheating and increasing noise
• Uneven rear body height, vehicle tilting and poor driving stability
• Cracks or pinhole slow leakage on rubber folding area of air bag
• Damper core without oil leakage, only air spring bag is leaking and damaged (suitable for this replacement part)

Notice:

1. This rear air spring bag is universal for rear left and rear right, no left‑right distinction.
2. If damper core oil leakage, damping failure or cylinder deformation occurs, replacing only air bag is not recommended, complete air strut assembly shall be changed.

Vehicle Model: Jeep Grand Cherokee WK2

Year Range: 2011‑2016

Fitment Condition: Only for vehicles equipped with factory Quadra‑Lift electronic air suspension

Notes:

• Not compatible with mechanical coil spring suspension version.
• Rear air spring bag universal for left & right, OE 68029912AE fits both rear left and rear right.
• Applicable only when original damper core keeps intact. Replace full assembly if damper core leaks oil.
• 17‑digit VIN code verification is recommended before order to prevent wrong item delivery.

Main OE: 68029912AE

Alternative Interchangeable OE: 68029912AC, 68029912AD, 68029912AF, 68029911AB

Remark: 68029912AE is standard aftermarket reference OE number for Jeep Grand Cherokee WK2 rear air spring bag, above part numbers can be directly interchanged.

A: No, it is universal for rear left and rear right. Rear left and rear right air spring bag share same structure, one OE number fits both sides.

A: No. This item only fits factory Quadra‑Lift electronic air suspension model. Mechanical spring version lacks corresponding mounting structure and cannot be installed.

A: Choose this air spring bag if damper core is oil‑free and works well while only air bag cracks and leaks. Replace complete air strut assembly when damper core oil leakage, cylinder deformation or damping failure happens.

A: If only air bag leaks and compressor works normally, just replace air spring bag. If compressor works overload with abnormal noise and overheating, inspect or replace compressor to extend whole suspension service life.

A: Yes. Special diagnostic tool must be used to perform body height calibration after air bag installation. Without calibration, body height deviation and suspension fault codes will appear.

A: 12‑month standard warranty. Covers natural aging crack and slow air leakage under normal usage. Damage caused by collision, improper installation, chassis scratch or modification is excluded from warranty.

A: ① Check original suspension configuration via 17‑digit VIN code; ② Disassemble original air bag, verify stamped OE number and confirm damper core without oil leakage.

1. Private Label Service: Neutral package available, custom brand logo, product label, carton barcode and OE number printing.
2. Packaging Customization: EPE foam protection, individual color box, export‑standard carton, custom shipping mark for sea & air shipment.
3. Bulk Order Solution: Small‑batch wholesale in stock; negotiate production lead‑time and unit price for large orders, price protection for long‑term dealers.
4. One‑stop Complete Supply: Supply front air spring bag, air compressor, valve block, height sensor, air pipe, clamps & sealing kits for one‑stop shipment.
5. Technical Support: Provide installation instruction document and high‑definition product photos for cross‑border e‑commerce listing.
6. Trade Terms: In‑stock items ship within 3‑7 working days; custom package order lead‑time 7‑15 days. Support FOB, CIF, EXW and other international trade terms.

1. Material: Multi‑layer weather‑resistant rubber air spring bag + integrated metal connecting base
2. Installation Position: Rear Suspension‑ Left / Right Universal, OE:68029912AE (Air Spring Bag Assembly, Without Damper Core)
3. Pressure Resistance: 0‑1.4MPa High Pressure Resistant
4. Service Life: 80,000 KM+ Durability Standard
5. Features: Air Spring Bag, Reuse Original Damper Core, Leak‑proof, Aging‑resistant, SUV Air Suspension Parts, Universal Rear Left & Right
6. Quality Standard: ISO9001 Certified Aftermarket Replacement Quality
