Place of Origin:
China
Brand Name:
SuspAir
Certification:
CE
Model Number:
9681946080
| Product Info | Details |
|---|---|
| OE | 9681946080 |

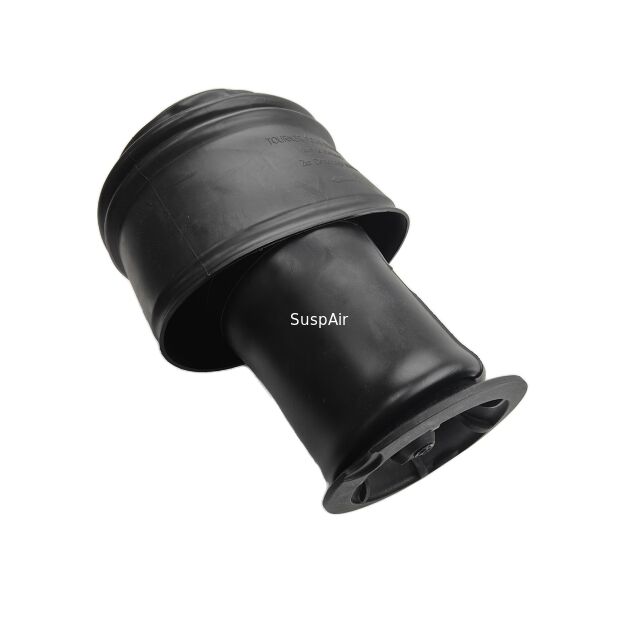

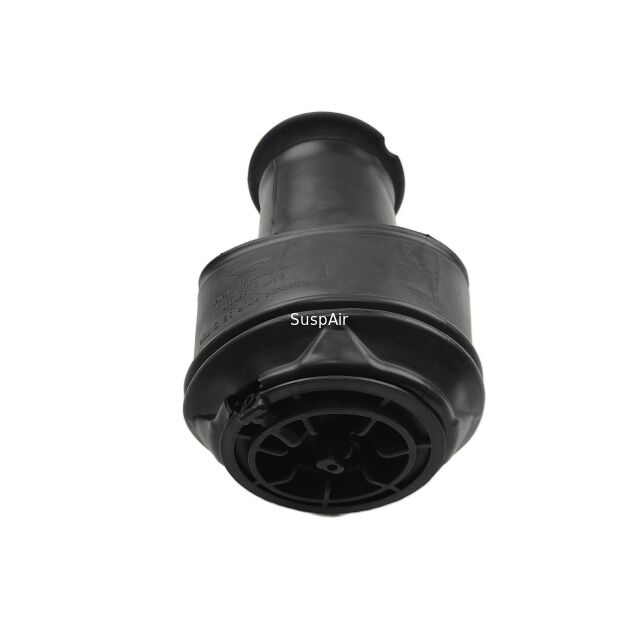

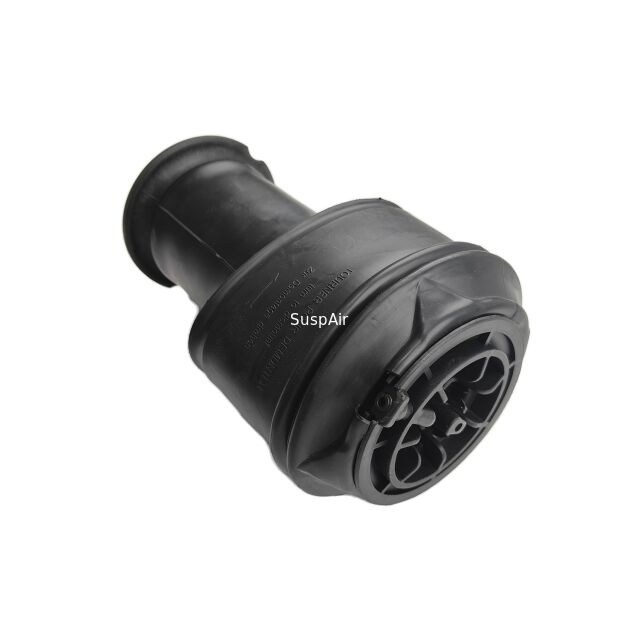

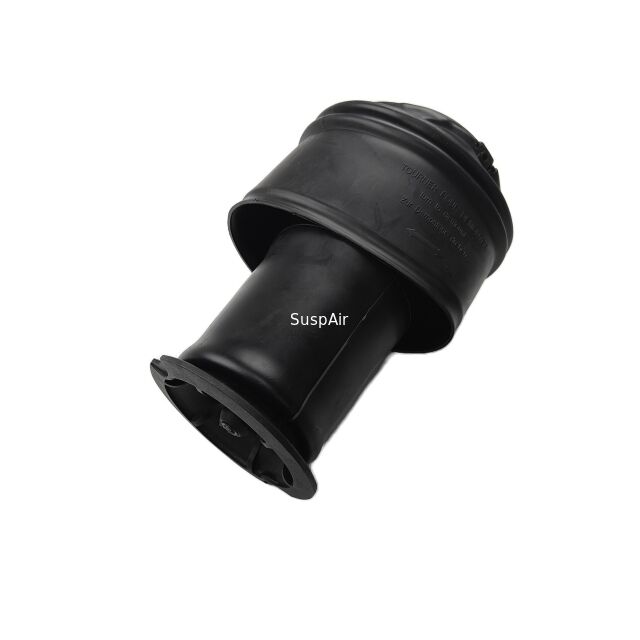

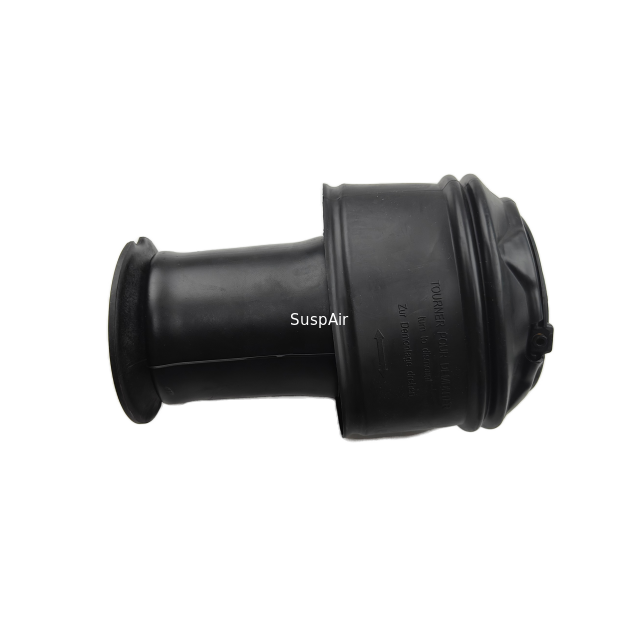

| Product Name | Rear Air Spring Bag |
| Important Note | Complete rear air spring bag assembly, without shock absorber damper core. Universal for rear left and rear right side, non-distinction and interchangeable. |
| OE Number | 9681946080 |
| Product Type | Air Spring Bag Assembly (without damper core) |
| Mounting Position | Rear Suspension - Left / Right Universal |
| Structure | Multi-layer reinforced weather-resistant rubber with integrated original-style plastic sealing base. This air spring bag can replace the original damaged air bag while reusing the original intact damper core. No need to replace the full shock strut assembly. Perfectly compatible with the original air suspension system to restore automatic load leveling and rear height adjustment functions for MPV vehicles. |
Notice: Universal for rear left and right. Full strut replacement is required if damper core is leaking or failed.
| Vehicle Model | Citroen C4 Picasso / C4 Grand Picasso |
| Year Range | 2006‑2016 |
| Fitment | Only for models with factory rear automatic air suspension & auto leveling system |
| Notes |
|
| Main OE | 9681946080 |
| Alternative Interchangeable OE | 5102GN, 5102R8, 9676670180, F307512401 |
| Remark | All above part numbers are fully interchangeable in aftermarket market. |
A: No. It is universal for rear left and right with identical structure and stroke, interchangeable for both sides.
A: No. Only fits factory automatic air suspension models.
A: Replace only the air bag if damper core is intact and oil-free. Replace full strut assembly if damper is leaking, deformed or failed.
A: No. Replace only the air bag if compressor works normally. Inspect or replace compressor if overheating or abnormal noise occurs.
A: Yes. Professional diagnostic tool is required for body height calibration and suspension reset to avoid fault codes and height deviation.
A: 12-month warranty covers natural aging and air leakage. Excludes collision damage, improper installation and modification damage.
A: 1. Verify configuration via VIN code; 2. Check original OE number; 3. Confirm damper core is oil-free.
| Material | Multi-layer weather-resistant rubber + integrated plastic sealing base |
| Position | Rear Suspension Universal (Without Damper Core) |
| Pressure Resistance | 0-1.4MPa High Pressure Resistant |
| Service Life | 80,000 KM+ |
| Features | Air Spring Bag, Aging Resistant, Leak Proof, OEM Replacement, Universal Left & Right |
| Quality Standard | ISO9001 Certified Aftermarket Quality |
