Place of Origin:
China
Brand Name:
SuspAir
Certification:
ISO9001/CE
Model Number:
Land Rover Range Rover (L405) : 2013–2022; + Range Rover Sport (L494) : 2014–2022

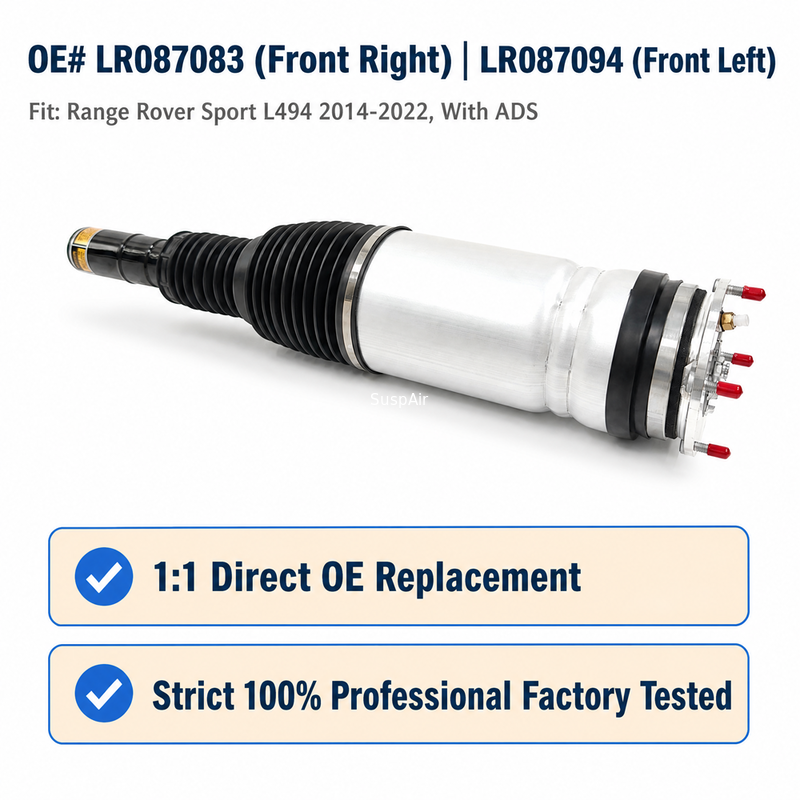

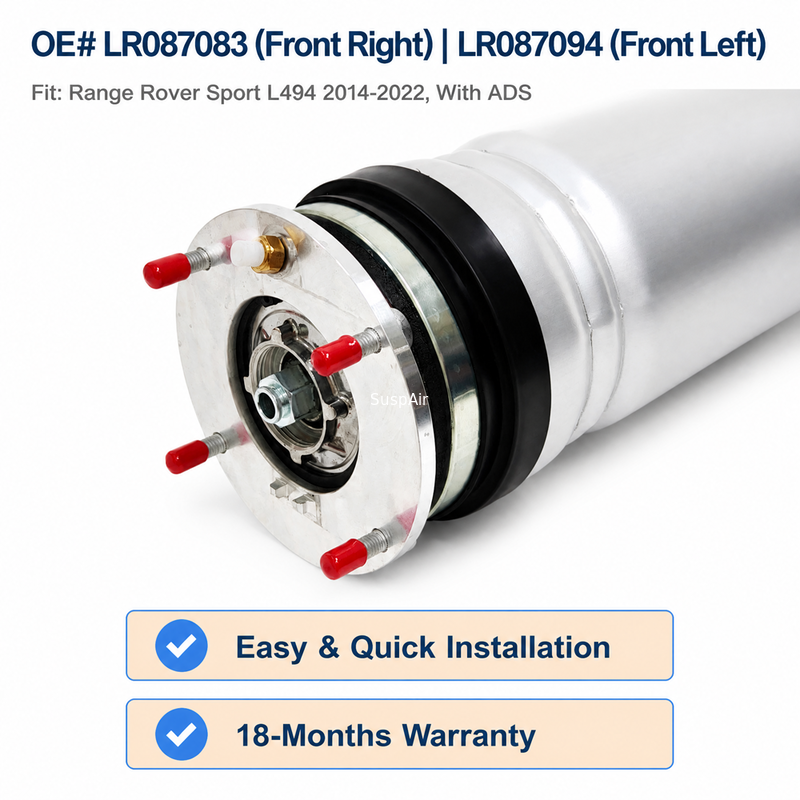

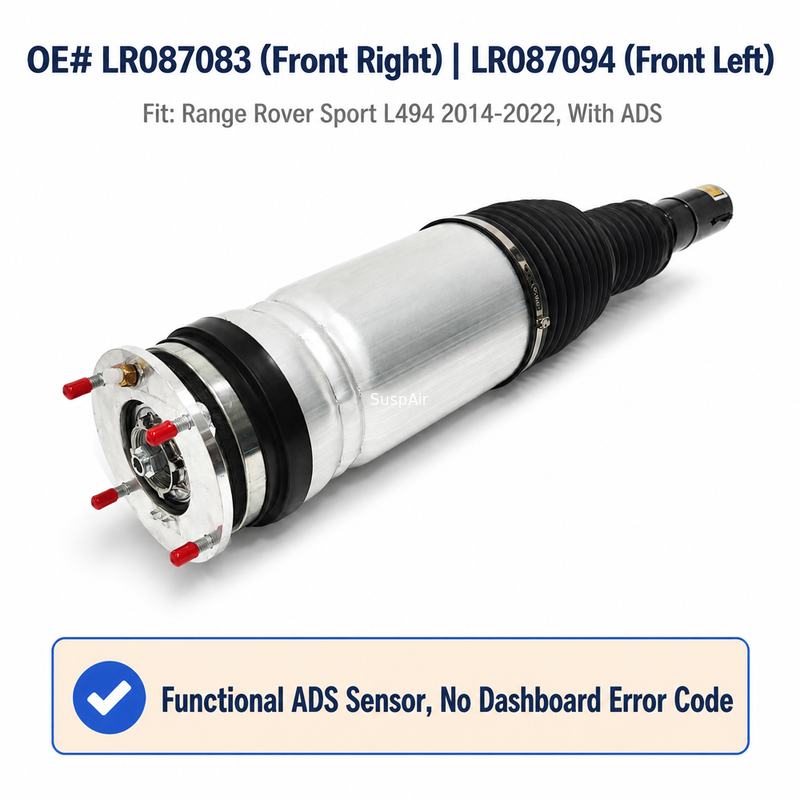

This front air suspension strut is the ELECTRIC (with ADS / CVD — Continuous Variable Damping) version, universally fitting the Land Rover Range Rover (L405, 2013–2022) and Range Rover Sport (L494, 2014–2022) equipped with electronic suspension control. It matches the genuine Land Rover OE numbers listed above (Front Left / Front Right) in mounting interface, spring rate and damping calibration, integrating the air spring and the shock absorber into one complete unit — including the electronic damping valve / connector — to restore original ride comfort, ride height and adaptive damping performance. Every unit is 100% air-leak tested before shipment and with an 18-month warranty.
Product Specification Sheet
| Item | Content |
|---|---|
| Product Name | Front Air Suspension Strut - ELECTRIC (Air Spring + Shock Absorber Assembly |
| Genuine OE No. (Front Left) | LR087094 |
| Genuine OE No. (Front Right) | LR087083 |
| Applicable Brand | Land Rover |
| Vehicle Line | Range Rover (L405) + Range Rover Sport (L494) - universal fitment (per customer product definition) |
| Model Years | L405: 2013-2022; L494: 2014-2022 (confirm exact year by VIN) |
| Damping Control | Electric - with ADS / CVD (electronic suspension control, Continuous Variable Damping); damper has an electronic valve/connector. The non-electric version is a different part, NOT interchangeable |
| Common Models | L405 / L494 with electronic damping control (adaptive/ADS suspension); e.g. RRS 3.0 V6 SC / 5.0 V8 SC with adaptive dynamics; RR with adaptive damping (confirm by VIN) |
| Installation Position | Front axle - Front Left / Front Right (side-specific) |
| Structure | Air spring + shock absorber integrated assembly with electronic damping valve/connector |
| Bellows Material | High-strength compound rubber (resistant to extreme temperatures and aging) |
| Air Tightness | 100% individually air-leak tested before shipment |
| Packing | Individual protective packaging; left/right pair set available |
| Warranty | 18 months |
| Shipping | Sea / air / courier; export-standard packaging |
Top Selling Points
| Selling Point | Detail |
|---|---|
| Electric / CVD Version | Correct ADS / Continuous Variable Damping version - electronic damping valve and connector included; adaptive ride quality restored |
| L405 + L494 Universal | One part covering Range Rover (L405) and Range Rover Sport (L494) - wider coverage, simpler stock |
| OE-Perfect Match | Replicated to OEM interface, spring rate and damping calibration; original ride height and leveling performance restored |
| Integrated Assembly | Air spring, shock absorber and damping valve in one complete unit - direct replacement, no part matching required |
| 100% Air-Leak Tested | Every unit individually pressure-tested before shipment to eliminate slow leaks and sagging |
| Premium Rubber Bellows | High-strength compound rubber; rated from -40C to +80C; ozone/aging resistant for longer service life |
| Sold as Left/Right Pair | Pair set available; same-axle replacement recommended for consistent performance |
| 18-Month Warranty | Extended 18-month warranty + pre-sale VIN check + after-sales technical support |
About Us
FAQ:
Q1: Which OE numbers are for which side? Front Left: LR087094, LR087095. Front Right: LR087083, LR087084. Never mix left with right.
Q2: Which vehicles does this fit? Range Rover (L405, 2013–2022) and Range Rover Sport (L494, 2014–2022) with electronic damping control (ADS / CVD) — the two chassis are interchangeable for this part (per the product definition). Vehicles with standard (non-adaptive) air suspension do NOT fit this version — order the non-electric pack instead.
Q3: How do I tell the electric version from the non-electric one? The electric strut has an electronic damping valve with an electrical connector on the damper. If the original unit has no connector, it is the non-electric version.
Q4: Is this the complete strut assembly? Yes — air spring bellows, shock absorber and damping valve integrated into one unit, air fitting ready to connect. Direct replacement of the original strut.
Q5: Do I need to replace both front sides at the same time? Same-axle pair replacement is strongly recommended. An old unit on the other side causes uneven ride height and leveling behavior.
Q6: My car has EAS height adjustment — does this fit? Yes, this unit works with the EAS system. After installation, perform the suspension height calibration / system reset; for vehicles with adaptive damping, a diagnostic reset of the damping control module may be required.
Q7: How do I know the front air strut is failing? The front sags or settles overnight; compressor runs frequently; ride-height / "Suspension Fault" warning or damping-related error codes on the dash; knocking or harshness while driving. Replace as soon as possible.
Q8: What should I pay attention to during installation? Release air suspension pressure per the workshop manual; disconnect the electrical connector cleanly and protect both the connector and air fitting from dirt; mount and reconnect; start the car, run the ride-height reset / system initialization; check left/right height and leaks before a road test.
Q9: Warranty policy and shipping damage? 18-month warranty under normal use. For shipping damage, inspect within 48 hours of receipt and send photos/video — the seller arranges a replacement.
Q10: Service life and maintenance? Depends on road conditions and climate. Keep bellows clean and check for cracks during routine service; if the bellows leak, replace the complete unit.
