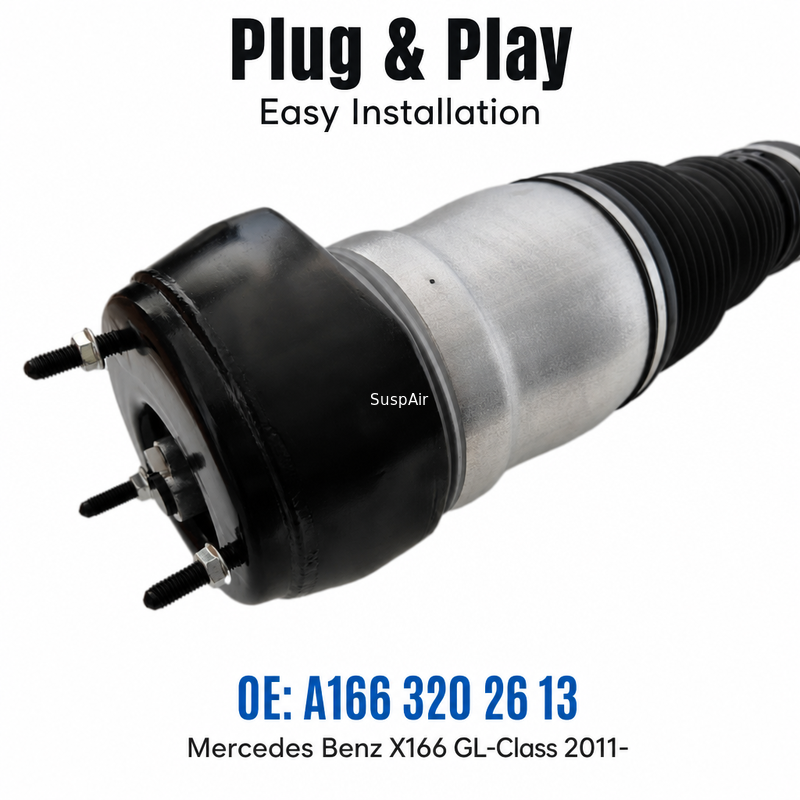

A1663202613 Front Left Air Suspension Shock Strut Without ADS for Mercedes Benz X166 GL-Class2011-

A1663202613 Front Left Air Suspension Shock Strut Without ADS for Mercedes Benz X166 GL-Class2011-

1. Product Introduction

Original OE Number: A1663202613

Product Name: Mercedes‑Benz Front Right Air Shock Absorber, Front‑Right Air Suspension Strut Assembly, W166 Air Strut Assembly, Non‑ADS Front‑Right Air Damper Assembly

Installation Position: Front axle right side. Suitable for Mercedes‑Benz W166 / X166 chassis vehicles equipped with factory Airmatic air suspension without ADS adaptive damping. It is a core load‑bearing, damping and pressure‑retaining vulnerable assembly for front‑right air suspension. It maintains right‑front ride height, filters road bumps and stabilizes driving posture. It is a high‑frequency maintenance part for ML / GL / GLE / GLS series.

Product Description

A1663202613 is OEM‑equivalent front‑right air strut assembly for Mercedes‑Benz W166/X166 chassis with non‑ADS standard Airmatic suspension. It is the matching counterpart of front‑left strut A1663202513. As a key executive component of Airmatic system, it integrates high‑pressure air spring, hydraulic damper and multi‑layer pressure‑sealing structure. It realizes load‑bearing, automatic height adjustment, vibration absorption and corner‑posture balance. It effectively suppresses front‑end floating and body roll, reduces bumpy vibration and greatly improves high‑speed stability and luxury riding comfort.

Air struts on W166/X166 are typical high‑wear components for premium SUVs. Under long‑term heavy load, road impact, temperature alternation, chassis moisture‑sediment erosion and frequent inflation‑deflation cycles, original units suffer rubber aging & cracking, inner sealing membrane fatigue rupture, oil seal leakage and damping decay, resulting in slow air leakage and insufficient pressure retention. Typical failure symptoms: front‑right collapse, front‑end sag after overnight parking, obvious left‑right height difference, frequent air‑compressor cycling, slow lifting speed, height calibration failure, air‑suspension warning lamp on, excessive bouncing over speed bumps, floating steering at high speed and reduced steering accuracy. Continuous operation with defective struts will accelerate aging of valve block, air dryer and air compressor, trigger cascading failures of full air‑suspension system and bring high repair costs.

This A1663202613 front‑right air strut is 1:1 reproduced according to Mercedes‑Benz OEM specifications. Overall stroke, pressure‑bearing parameters, damping coefficient, airspring pressure rating, mounting holes, bushing seats and structural dimensions fully match OEM standards. Adopted thickened multi‑layer anti‑aging high‑pressure rubber airspring, double anti‑leak sealing structure, thickened anti‑rust piston rod and high‑low temperature resistant long‑life hydraulic oil. Upgraded anti‑aging, anti‑cracking, anti‑corrosion and anti‑fatigue technology solves common OEM defects including air leakage, front‑end sag, damping failure and poor pressure retention under low temperature. This is non‑ADS air‑hydraulic version. Vehicle‑position‑specific, direct bolt‑on fit without chassis modification or programming. Fully compatible with original Airmatic ECU logic. After installation, it thoroughly fixes front‑right collapse, slow air leakage, abnormal height adjustment and loose chassis performance, restores original luxury chassis texture. Featuring high stability and low rework rate, it is a popular air‑suspension part for repair shops, auto‑parts wholesale and cross‑border export.

Core Advantages

• ✅ 1:1 OEM precise replication, identical hole position, stroke, pressure‑bearing & damping parameters and overall dimension, direct fit with zero compatibility error
• ✅ Solves W166/X166 air‑suspension common faults: front‑right sag, air leakage after parking, uneven body height, air‑suspension warning, compressor over‑wearing
• ✅ Upgraded multi‑layer thick high‑pressure airspring, wide temperature tolerance, anti‑aging & crack‑resistant, long‑term pressure retention to eliminate slow leakage
• ✅ Non‑ADS standard air strut, fits mainstream factory air‑suspension trims, high market adaptability & large circulation volume
• ✅ Exclusive front‑right unit, paired with front‑left counterpart, precise parameters & perfect fit, corrects body‑posture imbalance completely
• ✅ Complete pre‑assembled unit, no extra accessories required, easy installation, fast recovery of tight chassis texture and driving stability

2. Custom Attributes(E‑commerce Listing)

3. Compatible Vehicles

Compatibility Instruction: This dedicated front‑right non‑ADS air strut assembly is for Mercedes‑Benz W166/X166 chassis. Vehicle‑position‑specific. Only fits 2011‑2019 ML / GL / GLE / GLS with factory Airmatic air suspension without ADS adaptive damping. Not compatible with ADS electronic struts or mechanical dampers. Cannot interchange with front‑left strut.

Exact Compatible Model List

1. Mercedes‑Benz ML‑Class W166: ML250, ML300, ML350, ML400, ML500, ML550, ML63 AMG
2. Mercedes‑Benz GL‑Class X166: GL320, GL350, GL450, GL500, GL550, GL63 AMG
3. Mercedes‑Benz GLE‑Class W166: GLE320, GLE350, GLE400, GLE450, GLE500
4. Mercedes‑Benz GLS‑Class X166: GLS320, GLS350, GLS450, GLS500, GLS550

4. Interchangeable OE Numbers

Main OE Number: A1663202613 Interchangeable OE Numbers: A1663201413, A1663205066, A1663207416

Interchange Remark: Above part numbers are iterative interchangeable OEM numbers for W166/X166 front‑right non‑ADS air struts. They share identical structure, airspring pressure rating, damping parameters, mounting holes and ECU compatibility. Direct non‑destructive replacement without modification or programming.

5. FAQ

1. Q1: Which vehicles does A1663202613 fit? A: Fits 2011‑2019 Mercedes‑Benz W166/X166 ML, GL, GLE, GLS with non‑ADS factory air suspension. Not for ADS adaptive damping or mechanical suspension trims.
2. Q2: Is this strut exclusive for front‑right? Can it interchange with front‑left? A: This unit is front‑axle right‑side exclusive. Corresponding front‑left OE: A1663202513. Left‑right have different structure parameters & angles. Mix‑use is strictly forbidden, must install at designated position.
3. Q3: Can it be fitted on vehicles with ADS adaptive damping? A: Not applicable. This is non‑ADS air‑hydraulic version without electronic adaptive damping function. It cannot match ADS ECU system and will trigger fault codes, damping mismatch and abnormal height adjustment.
4. Q4: Does computer programming need after replacement? A: No programming or coding required. After direct replacement, bleed pipeline air, perform air‑tightness leak test, calibrate ride height and clear fault codes for normal operation.
5. Q5: What symptoms indicate front‑right air strut replacement? A: Front‑right end collapse, front‑end sag after cold parking, uneven body height, frequent air‑compressor cycling, slow chassis lifting, air‑suspension warning lamp on, bouncy performance over pits and floating steering at high speed. These indicate strut air‑leakage failure and replacement is recommended.
6. Q6: Can I replace only the single front‑right strut? A: Inspect condition of both front struts and pair‑replacement is preferred. Mismatched damping and pressure‑retention performance between new and old units will cause body tilt, steering offset, uneven corner roll and unstable handling.

6. Custom Service

1. OEM Private Label Customization: Support custom logo printing, neutral no‑label export packaging and customized color boxes, suitable for Amazon, eBay, AliExpress, and other cross‑border platforms.
2. Bulk Supply Service: A1663202613 Mercedes‑Benz front‑right air strut is in constant stock. Support retail, bulk wholesale and full‑container export orders with stable supply, fast delivery and competitive price.
3. Complete Air‑Suspension Parts Supply: One‑stop supply of full air‑suspension components for W166/X166, including front & rear air struts, air compressor, air dryer, valve block, height sensor and repair kits.
4. E‑commerce Material Support: Provide real‑product photos, close‑up pictures, OE cross‑reference table, compatible vehicle list and installation reference documents for store listing, short‑video marketing and detail‑page editing.
