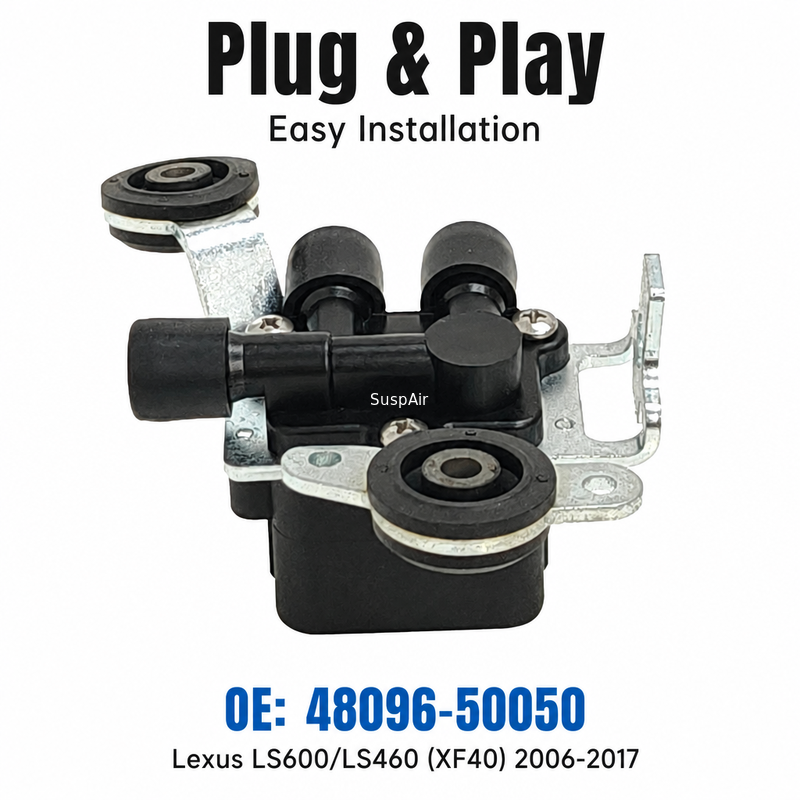

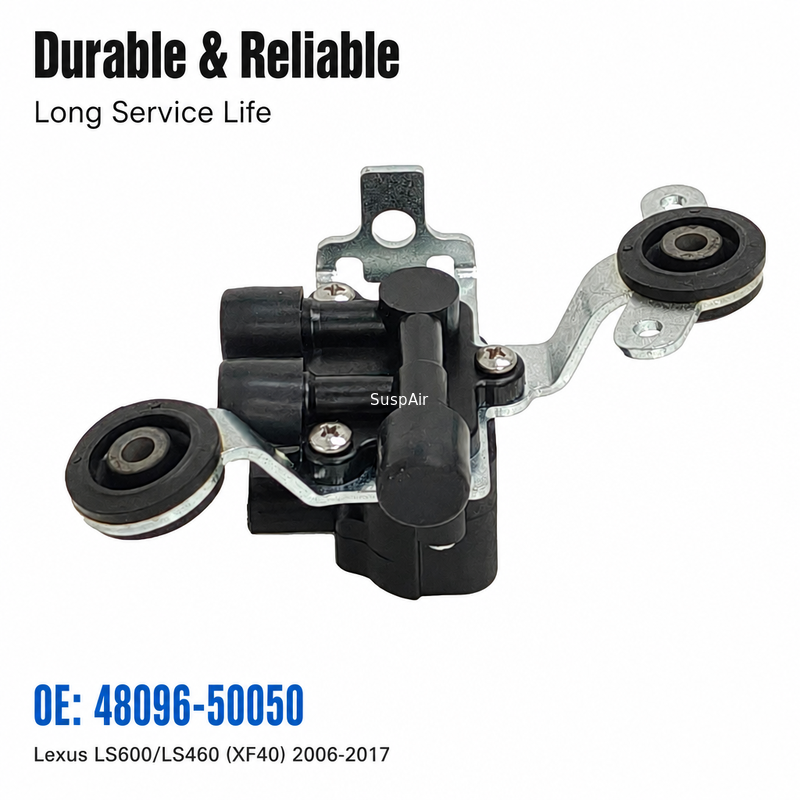

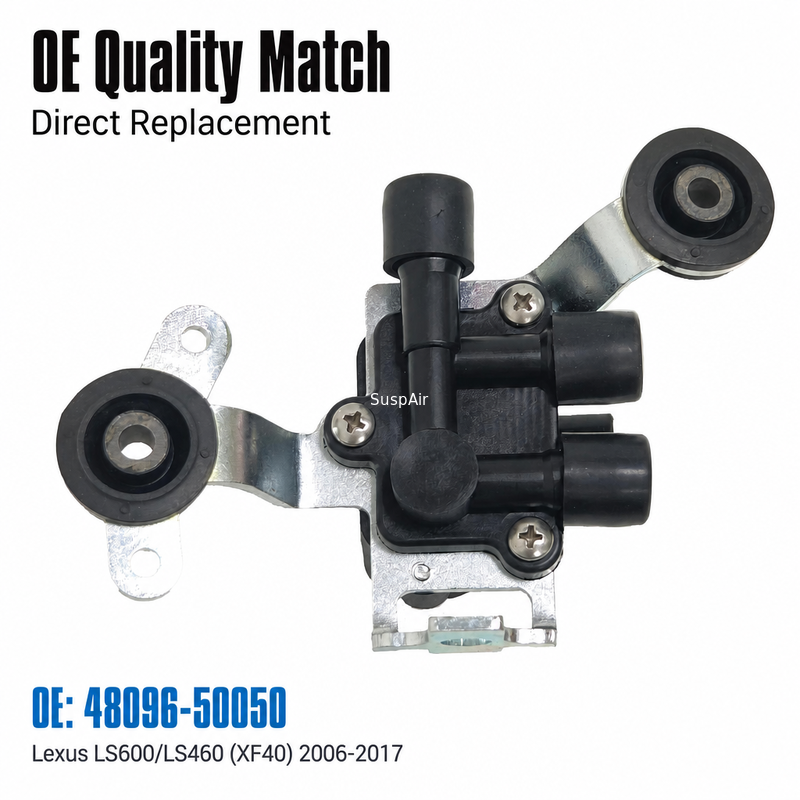

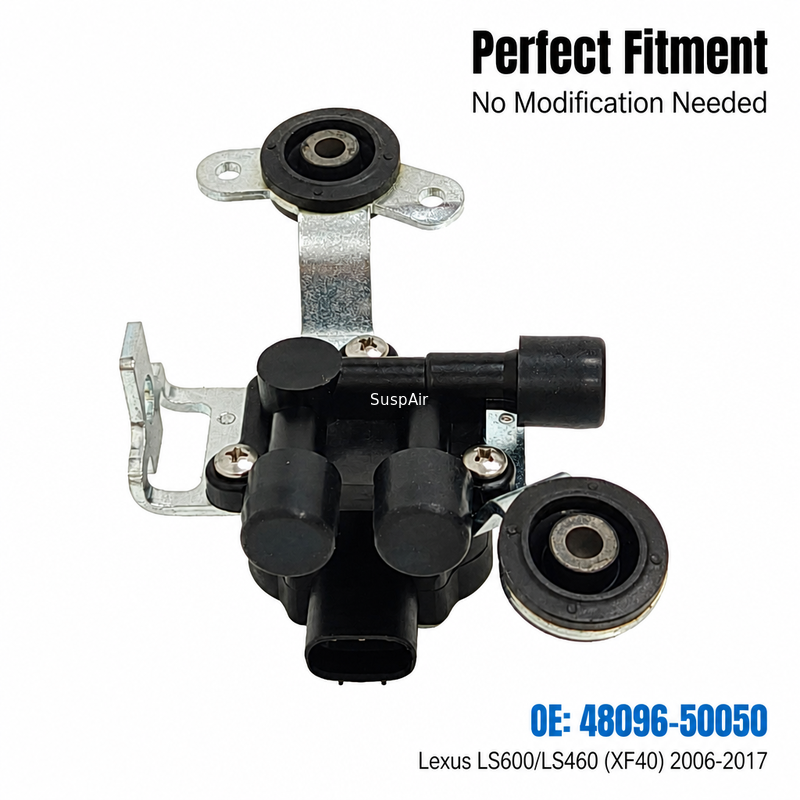

48096-50050 Air Suspension Solenoid Valve Block For Lexus LS600/LS460 (XF40) 2006-2017

48096-50050 Air Suspension Solenoid Valve Block for Lexus LS600/LS460 (XF40) 2006-2017

Original OE Number: 48096‑50050

Product Name: Lexus / Toyota Air Suspension Distribution Valve, Air Suspension Solenoid Valve Block Assembly, Air Suspension Height Control Valve, EAS Air Suspension System Air Pressure Shunt Control Valve

Installation Position: Chassis air suspension compressor pipeline assembly, core main control valve of vehicle height control system. Universal for whole vehicle, no front‑rear or left‑right distinction. It is responsible for independent inflation, high‑pressure stabilization, static pressure‑holding, dynamic pressure relief balance and intelligent ride‑height adjustment for four‑wheel air springs. It is the core control component for air suspension system of Lexus flagship sedans and Toyota high‑end Crown models.

Product Description

48096‑50050 is an OEM‑spec air suspension distribution valve for Toyota and Lexus high‑end vehicles, precisely compatible with Lexus LS460, LS460L long‑wheelbase version and Toyota Crown high‑trim models equipped with factory air suspension. As the core pressure‑control hub of Japanese flagship EAS intelligent air suspension system, it accurately controls air intake, pressure stabilization, pressure locking and pressure relief logic for four‑wheel air springs. It balances vehicle height in real‑time, filters fine road vibration, delivers ultra‑quiet and premium chassis comfort for flagship vehicles and guarantees high‑speed driving stability. It is one of the most vulnerable common‑failure spare parts for this series air‑suspension systems.

The OEM distribution valve for Lexus LS460/LS460L and Toyota Crown high‑version works under harsh chassis conditions: dampness, sediment adhesion, large seasonal temperature difference and frequent high‑pressure start‑stop. Original sealing rubber rings are prone to hardening, aging and cracking. Carbon deposit causes valve‑core sticking and slow solenoid response, resulting in slow air leakage and poor pressure‑holding performance. It is widely recognized as a typical failure‑prone component in aftermarket industry.

Typical failure symptoms: vehicle body sinks after overnight parking, unilateral body tilt, inconsistent left‑right height, air compressor works frequently and non‑stop, slow‑stuck chassis lifting, height adjustment failure, air‑suspension warning light on dashboard, fault codes for air leakage, abnormal pressure‑holding and height calibration failure. Long‑term faulty operation will burn out air‑suspension compressor and cause complete air‑suspension system breakdown with extremely high repair cost.

This 48096‑50050 air‑suspension distribution valve is 1:1 reproduced strictly according to OEM OE data. Valve runner aperture, solenoid switching frequency, high‑pressure resistance rating, ECU signal parameters, plug‑pin definition and pipeline port dimensions fully match OEM standards. Adopting high‑strength precision aluminum‑alloy valve body, high‑low‑temperature resistant high‑pressure fluororubber sealing kit and anti‑sticking rust‑proof precision electronic valve‑core with upgraded anti‑carbon‑deposit & anti‑aging structure. It thoroughly solves original defects such as pressure relief leakage, valve sticking failure and delayed response.

Features precise air shunting, stable pressure stabilization, corrosion resistance, wide‑temperature tolerance, zero‑leakage under long‑term high‑pressure and zero‑error ECU compatibility. Direct non‑destructive in‑situ replacement, no wiring modification, no drilling and no programming required. Fully compatible with original Lexus and Toyota air‑suspension control system. It completely repairs common air‑suspension faults of LS460/LS460L and Crown high‑trim: parked‑vehicle sag, body tilt, air leakage, over‑worked compressor, abnormal height adjustment and air‑suspension warning. Low rework rate, ideal spare‑part for luxury‑car repair workshops, parts wholesale and cross‑border export.

Core Advantages

• 1:1 OEM precise reproduction, fully fits Lexus LS460/LS460L and Toyota Crown air‑suspension models with identical parameters, mounting holes and ECU signals
• Solves Japanese flagship air‑suspension common faults: parked‑body sag, unilateral tilt, uneven ride‑height, air leakage, jerky lifting and air‑suspension alarm
• Upgraded anti‑aging seal & anti‑sticking valve‑core structure, anti‑carbon‑deposit, anti‑moisture corrosion, wide‑temperature adaptability, stable pressure‑holding without leakage under long‑term high‑pressure
• Single SKU covers two mainstream high‑end models, large market circulation volume, accurate compatibility and simple stocking
• Whole‑vehicle universal without front‑rear / left‑right distinction, non‑destructive bolt‑on installation, no modification or coding, finish after leak‑test & fault‑code clearing
• Restores accurate four‑wheel air‑pressure distribution, corrects body‑level deviation and recovers OEM premium chassis comfort and driving stability

Compatibility Instruction: This valve is model‑specific air‑suspension distribution valve for Lexus and Toyota high‑end flagship vehicles. Only fits high‑spec units with factory air suspension. Mechanical‑spring low‑trim models and other series lack corresponding air‑suspension pipelines and ECU modules and cannot be installed.

Exact Compatible Models List

1. Lexus LS460 / LS460L: 2006‑2018 all factory air‑suspension versions
2. Toyota Crown: High‑trim versions with factory air suspension

Main OE Number: 48096‑50050

Interchangeable OE Number: No alternative iterative OE numbers. It is the primary factory reference OE for these models. All aftermarket equivalents take this number as interchange standard.

Interchange Remark: 48096‑50050 is the sole base OEM number for LS460 and Crown air‑suspension distribution valve. Aftermarket assemblies share identical structure, interface dimension, ECU parameters and pressure‑resistance rating. Direct non‑destructive replacement without modification or programming.

Q1: Which vehicles does 48096‑50050 fit?

A: Exclusively for Lexus LS460, LS460L long‑wheelbase version and Toyota Crown high‑trim vehicles with factory air suspension. Not applicable for low‑trim non‑air‑suspension and other series models.

Q2: Does this valve have front/rear or left/right position distinction?

A: No position difference. Universal for whole vehicle. One single SKU covers all matching units for simple stocking.

Q3: Can it be fitted on mechanical‑spring low‑trim Crown or LS460?

A: Not applicable. Only factory air‑suspension high‑spec vehicles have matching pipelines, control modules and mounting positions. Mechanical chassis cannot support installation.

Q4: Is coding or programming required after replacement?

A: No programming needed. After in‑situ replacement, evacuate pipeline air, perform leak‑test, clear fault codes and calibrate ride‑height, vehicle ECU will recognize and adapt automatically.

Q5: What symptoms require valve‑block replacement?

A: Body sag after parking, unilateral tilt, uneven four‑wheel height, frequent compressor cycling, slow‑jerky lifting, air‑suspension warning lamp and fault codes for air leakage / pressure‑hold failure. Installing brand‑new valve block can realize complete repair.

Q6: Can it interchange with 48095‑30060?

A: Not interchangeable. They differ in valve runner, pressure‑resistance parameter and ECU logic, corresponding to different OEM part numbers, mixed installation is forbidden.
