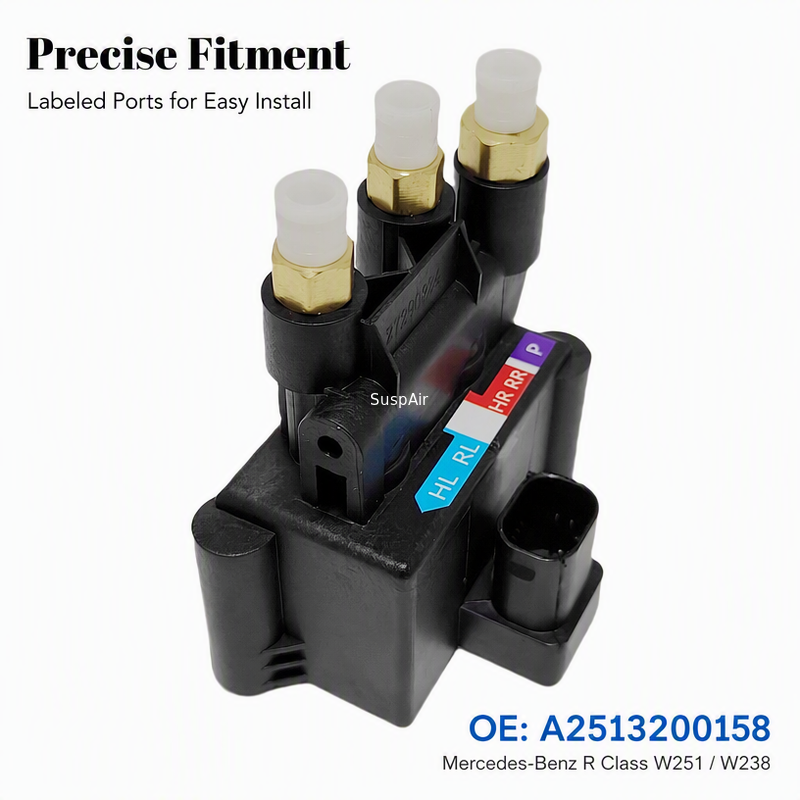

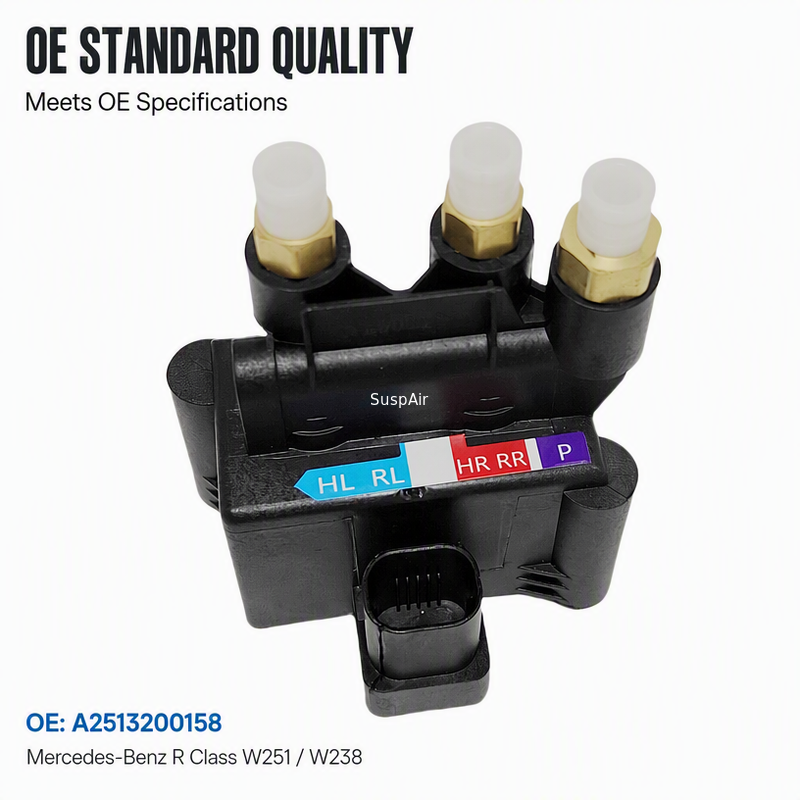

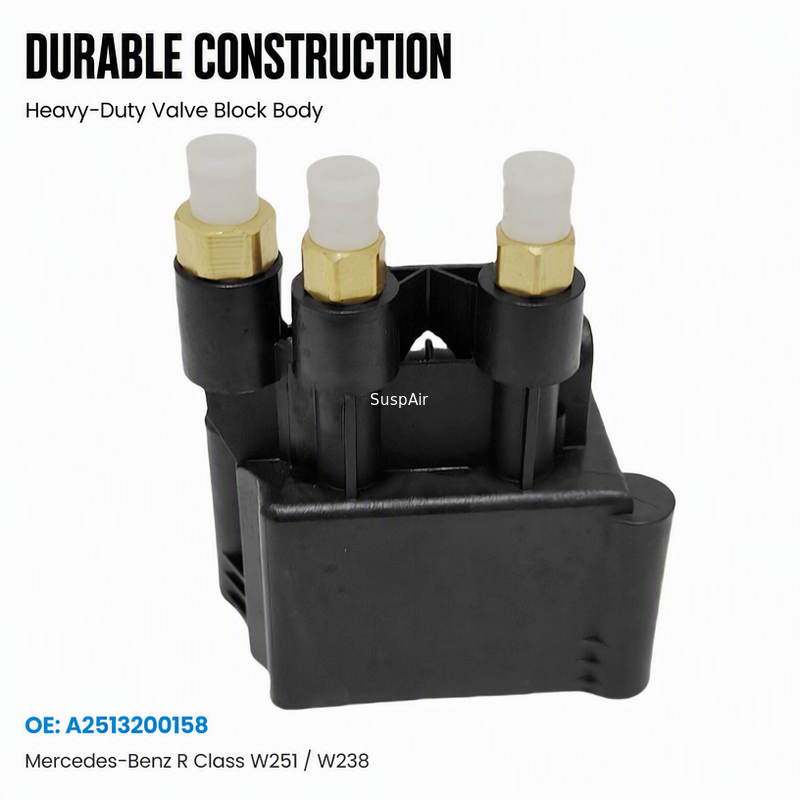

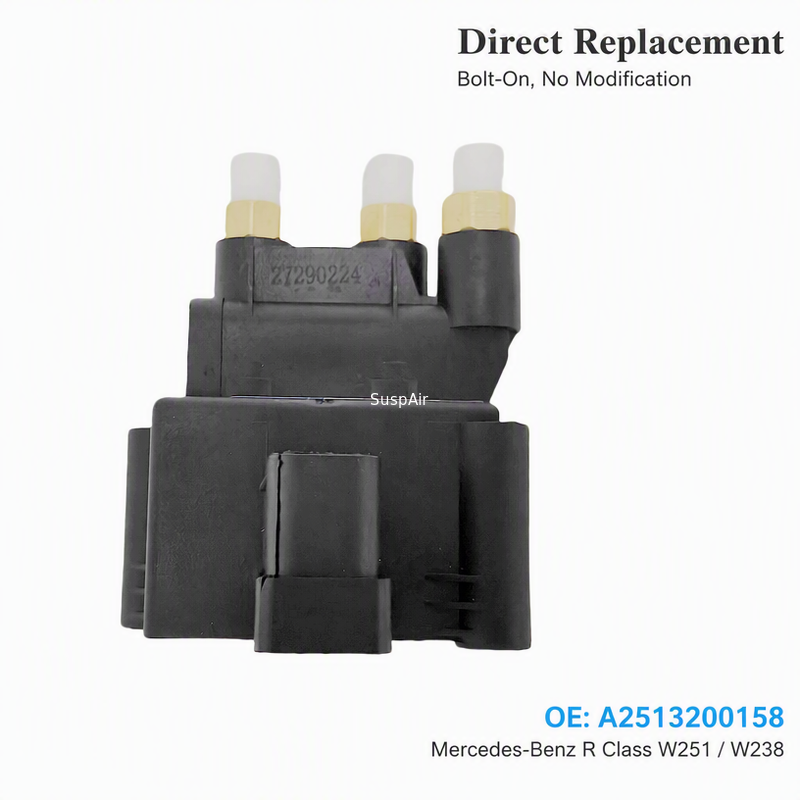

A2513200158 Air Suspension Solenoid Valve Block For Mercedes-Benz R Class W251 W238

A2513200158 Air Suspension Solenoid Valve Block for Mercedes-Benz R Class W251 W238

1. Product Introduction

Product Description

A2513200158 is an original-equipment-grade air suspension distribution valve exclusive to classic high-end Mercedes-Benz chassis, compatible with W251 R-Class, W164 ML/GL-Class, W221 S-Class models equipped with factory Airmatic air suspension. As the pressure core of the air suspension system, it is mainly responsible for four-wheel independent air pressure distribution, system pressure stabilization and retention, vehicle body lifting adjustment and pipeline pressure balance. It effectively controls body height and suspension air pressure, serving as a key component to maintain stable operation of the air suspension system and solve body sagging and air leakage faults.

Due to long service life, the original factory valve of these Mercedes models works under long-term high pressure, extreme temperature differences, dust and water vapor erosion, easily causing internal valve core carbon deposition and sticking, reduced solenoid sensitivity, aging and failure of sealing rings, micro air leakage and poor pressure retention. Typical vehicle faults include single-side or four-wheel body sagging after overnight parking, frequent air compressor startup, compressor overheating protection, slow lifting speed, unbalanced left-right body height, dashboard air suspension warning light, chassis shaking during driving and system pressure relief fault codes.

This distribution valve is 1:1 precisely molded according to original A2513200158 factory parameters. The valve flow channel aperture, solenoid switching logic, pressure resistance grade, plug pins and pipeline interface dimensions fully comply with OEM standards. Adopting high-strength aviation aluminum alloy valve body, high and low temperature resistant high-pressure fluororubber seals and anti-interference precision electronic valve core, it features sensitive response, stable pressure retention and excellent aging resistance. It supports non-destructive in-situ direct replacement without wiring modification, drilling or professional programming, fully compatible with the original Airmatic intelligent air suspension system. It thoroughly solves common stubborn faults of old Mercedes air suspension such as body sagging, pressure relief, overworked compressor and abnormal lifting with ultra-low rework rate, being a must-have popular part for auto repair replacement, parts wholesale and cross-border export.

Core Advantages

• ✅ 1:1 OEM precise replication, perfectly matching three high-end chassis W164/W221/W251 with zero deviation in mounting position, flow channel and electronic signal
• ✅ Solves classic old Mercedes air suspension faults: static body sagging, slow pressure relief, frequent compressor operation, lifting stuttering and system alarm
• ✅ High-precision high-pressure valve structure, anti-carbon deposition and anti-sticking, aging-resistant seals for long-term leak-free operation and high stability
• ✅ Universal for all vehicle positions with wide compatibility, simple inventory management and low stock pressure
• ✅ Non-destructive bolt-on installation, no modification or coding required, only code clearing and leak calibration for high installation success rate
• ✅ Restores four-wheel independent pressure stabilization function, reproduces original factory body height and chassis comfort, completely eliminates pressure relief faults

2. Custom Attributes (E-commerce Listing)

3. Compatible Vehicles

Compatibility Instruction: This universal air suspension distribution valve fits Mercedes-Benz W251/W164/W221 chassis, only compatible with high-end models equipped with factory Airmatic air suspension. Mechanical suspension and ABC hydraulic suspension models have no matching mounting structure and cannot be adapted.

Exact Compatible Models List

1. Mercedes W251 R-Class Air Suspension Version: R280, R300, R320, R350, R400, R500
2. Mercedes W164 ML/GL-Class Air Suspension Version: ML300, ML350, ML450, GL350, GL450, GL550
3. Mercedes W221 S-Class Air Suspension Version: S300, S350, S400, S450, S500, S600

Applicable Years: 2006–2013

4. Interchangeable OE Numbers

Main OE Numbers: A2513200158, 2513200158

Interchangeable OE Numbers: A1643201204, A2123200358

Interchange Remark: The above numbers are factory upgraded universal replacement parts with identical valve flow channel, pressure resistance parameters, electronic signals and mounting interfaces. They are fully interchangeable standard parts, supporting direct non-destructive installation without modification or programming, zero compatibility faults.

5. FAQ

6. Custom Service

• 1. OEM & Private Label Customization: Support custom logo printing, neutral no-label export packaging and customized color boxes, suitable for cross-border platforms such as Amazon, eBay, AliExpress.
• 2. Bulk Supply Service: Long-term sufficient stock of A2513200158 air suspension distribution valves, supporting large-batch wholesale and full-container export orders with stable supply and fast delivery.
• 3. Complete Air Suspension Parts Supply: One-stop procurement of full W251/W164/W221 air suspension accessories, including air compressor, dryer, air filter, front/rear air spring, height sensor and shock absorber assembly.
• 4. E-commerce Material Support: Provide real product photos, detailed close-up images, compatibility parameter sheets and installation reference materials for store listing, short video promotion and store decoration.
